Removal

2ZR-FE EMISSION CONTROL: PURGE VALVE: REMOVAL

REMOVAL

1. REMOVE NO. 2 CYLINDER HEAD COVER Removal

2. REMOVE DUTY VACUUM SWITCHING VALVE

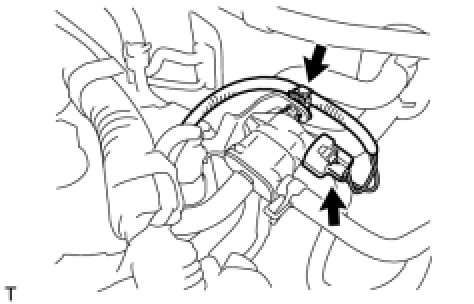

(a) Disconnect the duty vacuum switching valve connector and wire harness clamp.

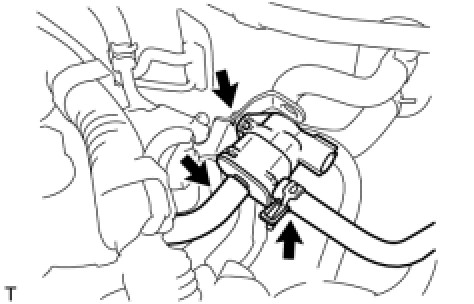

(b) Disconnect the 2 hoses and remove the duty vacuum switching valve.
NOTE: Do not drop the duty vacuum switching valve during its removal.

(c) Remove the screw.
