Pinout Values and Diagnostic Parameters

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU
NOTICE:
- Turn the Ignition switch off before measuring the resistances of the CAN main wire and the CAN branch wire.
- After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
HINT: Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

1. JUNCTION CONNECTOR

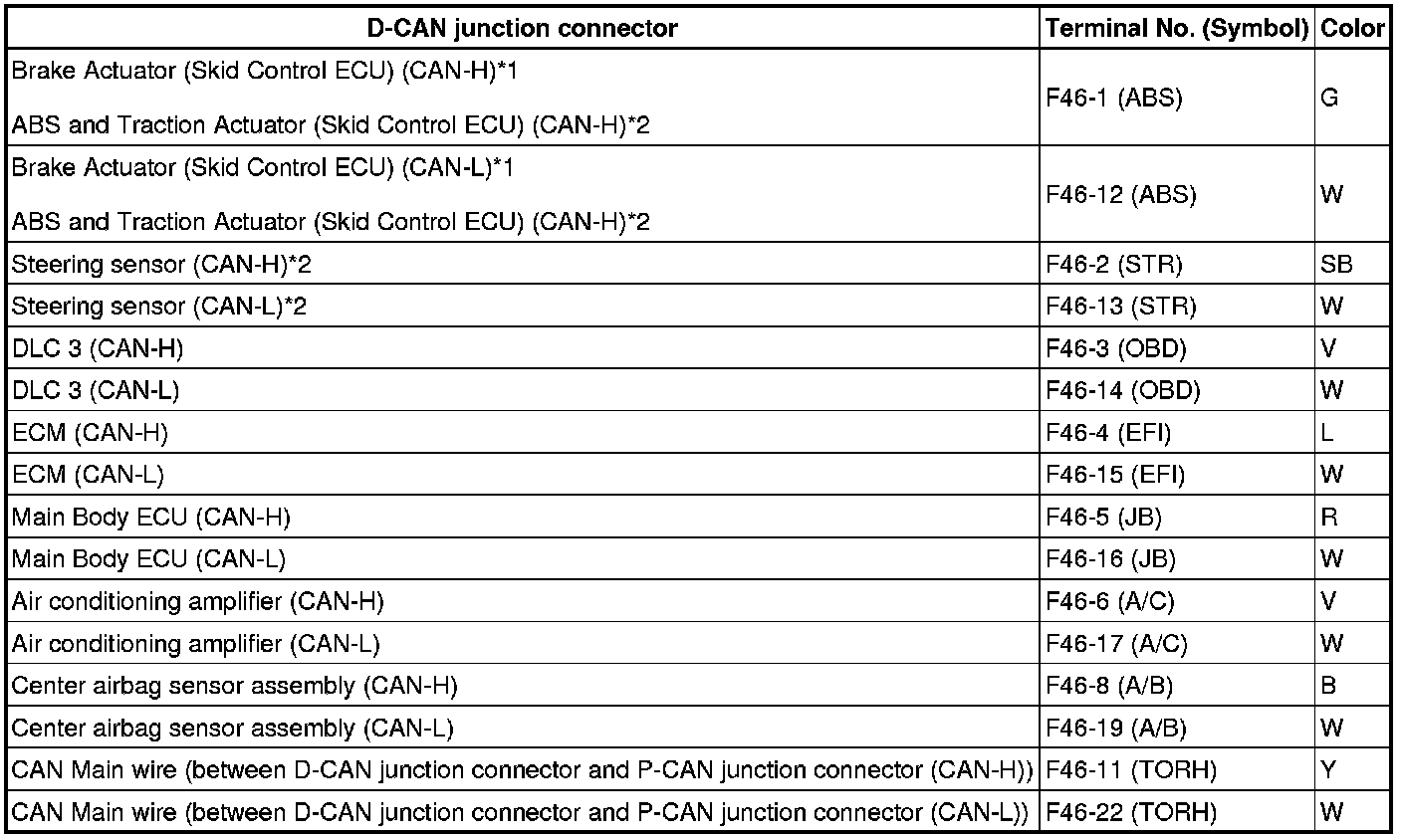

(a) D-CAN Junction Connector
Wiring color:





HINT: *1: w/ ABS
*2: w/ VSC

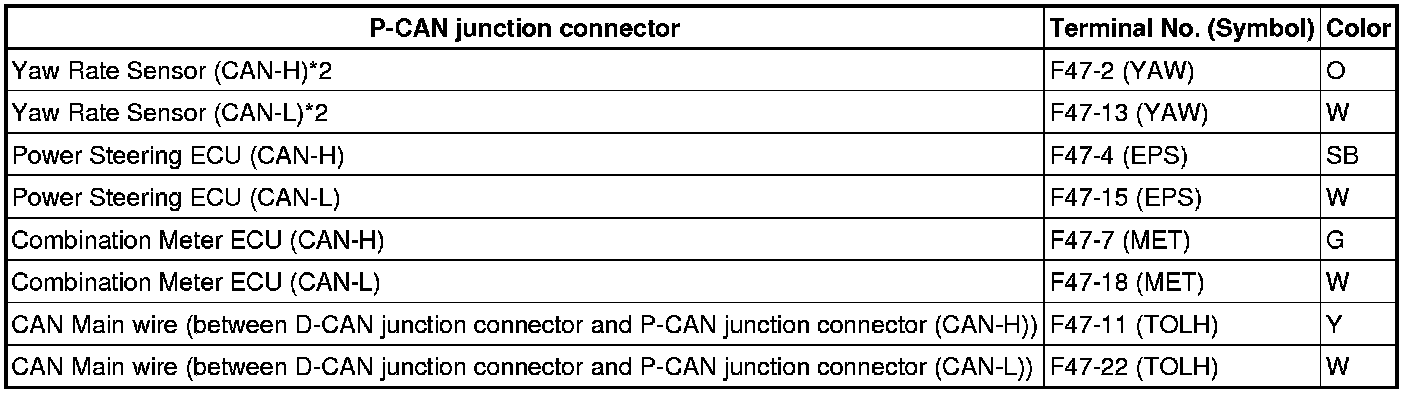

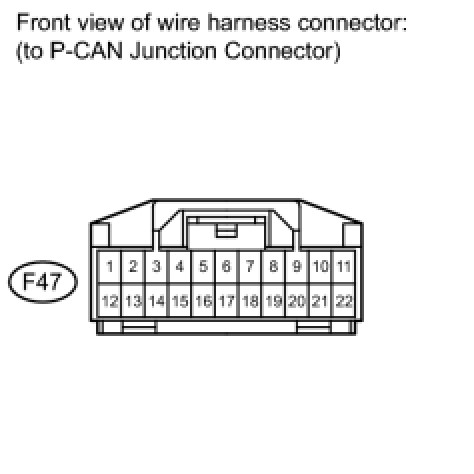

(b) P-CAN Junction Connector
Wiring color:





HINT: *2: w/ VSC

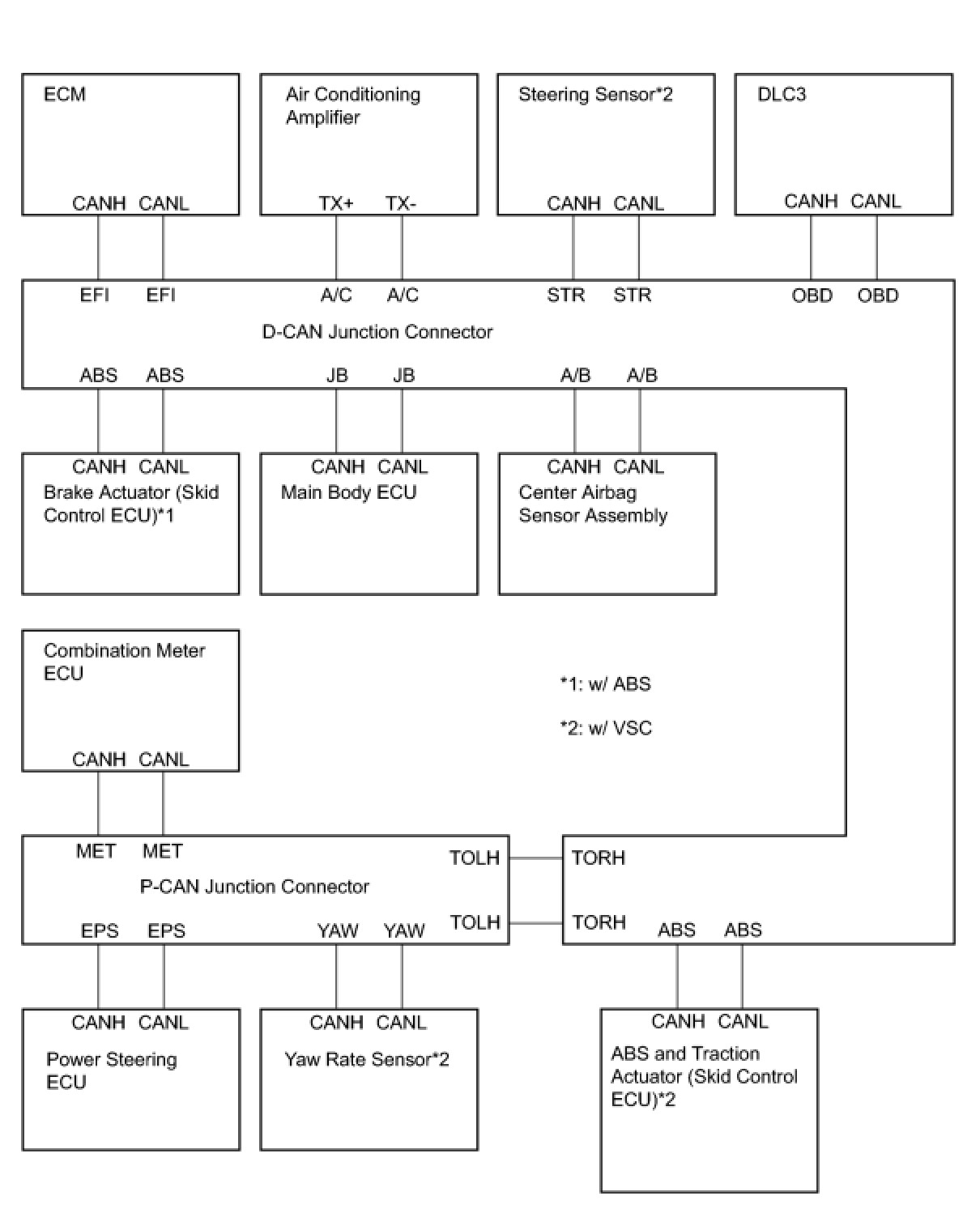

(c) Wiring diagram for identifying CAN Junction Connectors

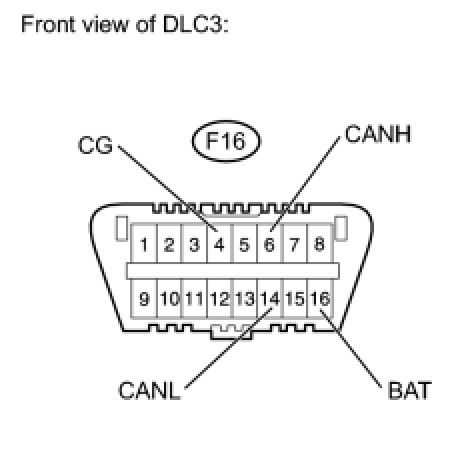

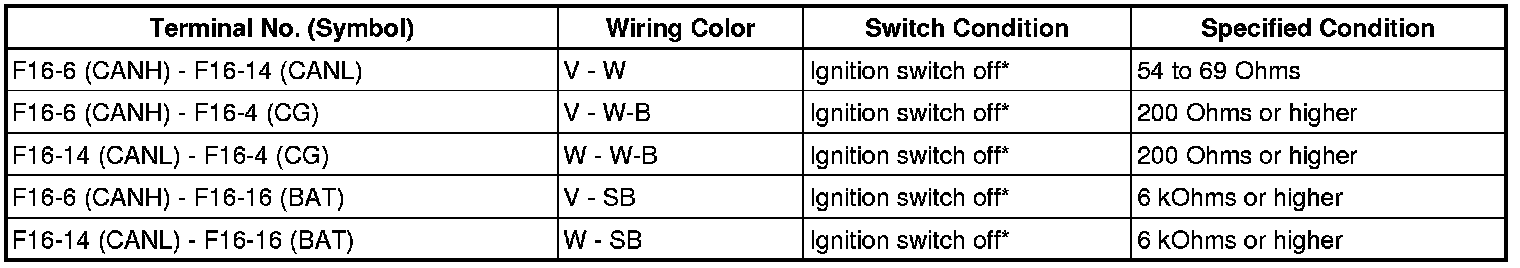

2. DLC3






(a) Turn the Ignition switch off.

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

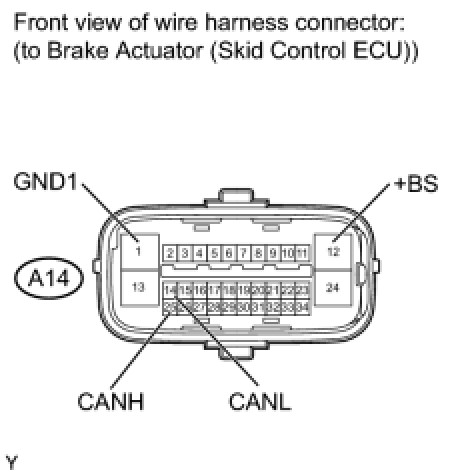

3. BRAKE ACTUATOR (SKID CONTROL ECU)
HINT: For vehicles with ABS only.





(a) Turn the Ignition switch off.

(b) Disconnect the A14 brake actuator (skid control ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

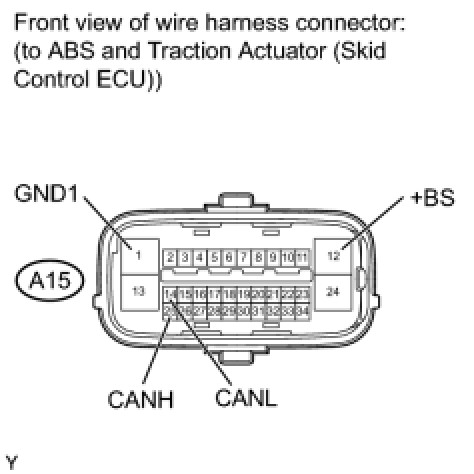

4. ABS AND TRACTION ACTUATOR (SKID CONTROL ECU)
HINT: For vehicles with VSC only.





(a) Turn the Ignition switch off.

(b) Disconnect the A15 ABS and traction actuator (skid control ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

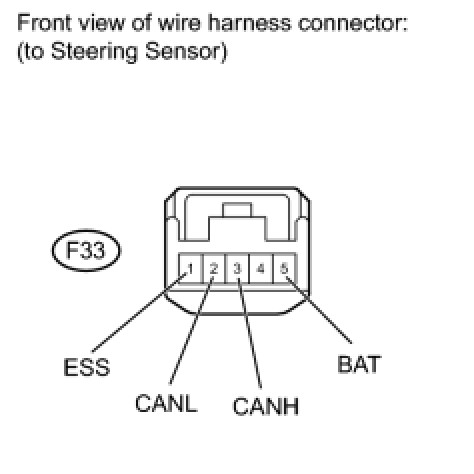

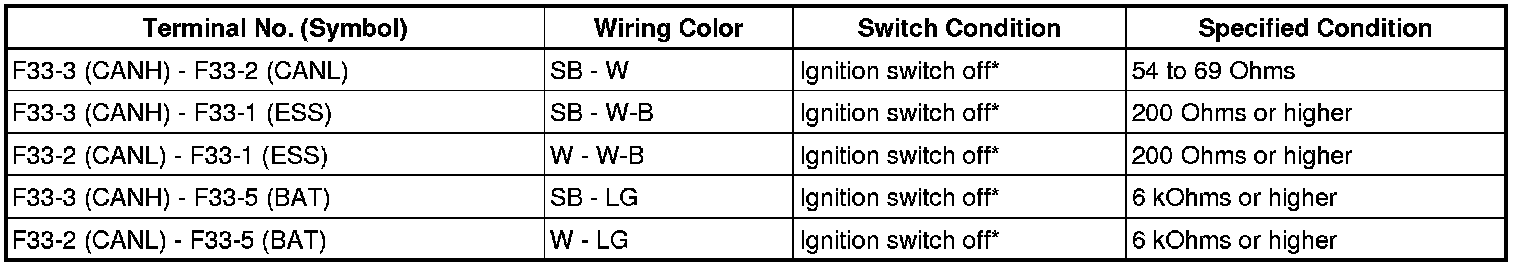

5. STEERING SENSOR
HINT: For vehicles with VSC only.





(a) Turn the Ignition switch off.

(b) Disconnect the F33 steering sensor connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

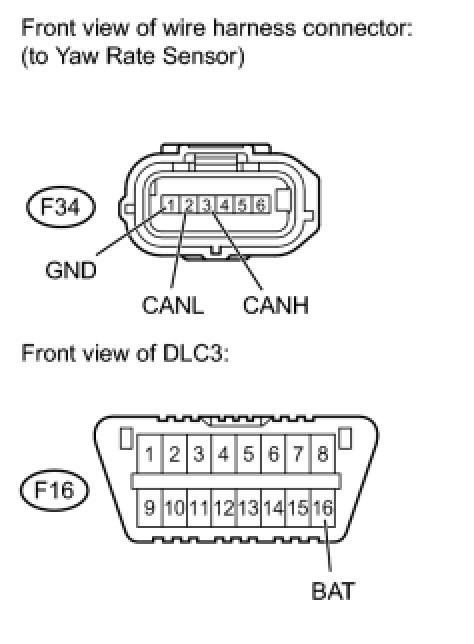

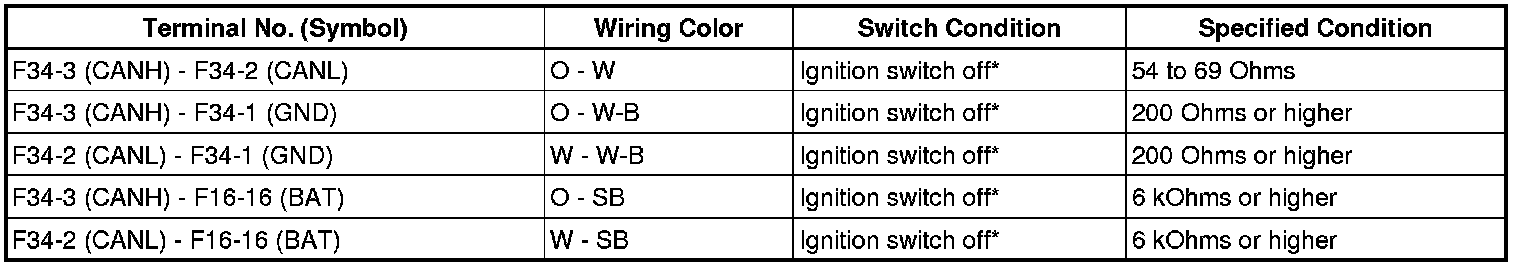

6. YAW RATE SENSOR
HINT: For vehicles with VSC only.





(a) Turn the Ignition switch off.

(b) Disconnect the F34 yaw rate sensor connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

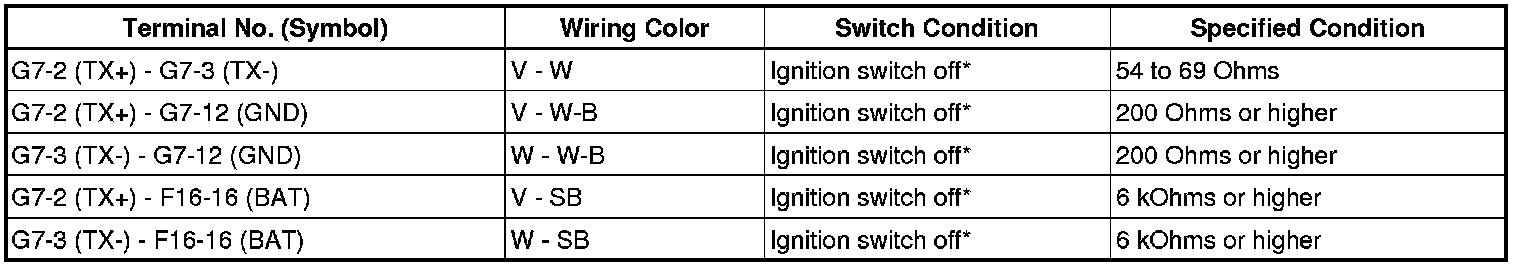

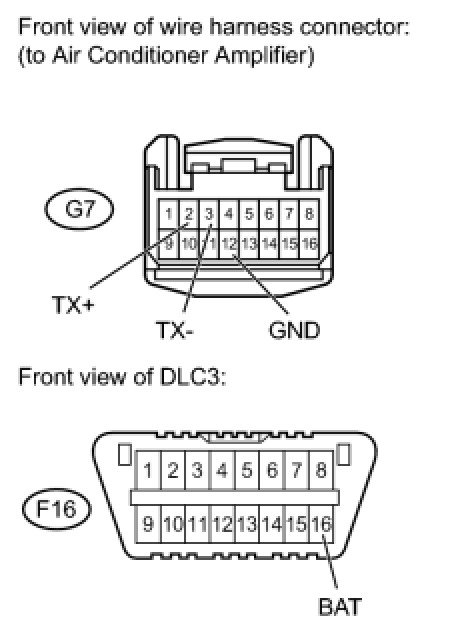

7. AIR CONDITIONING AMPLIFIER






(a) Turn the Ignition switch off.

(b) Disconnect the G7 air conditioning amplifier connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

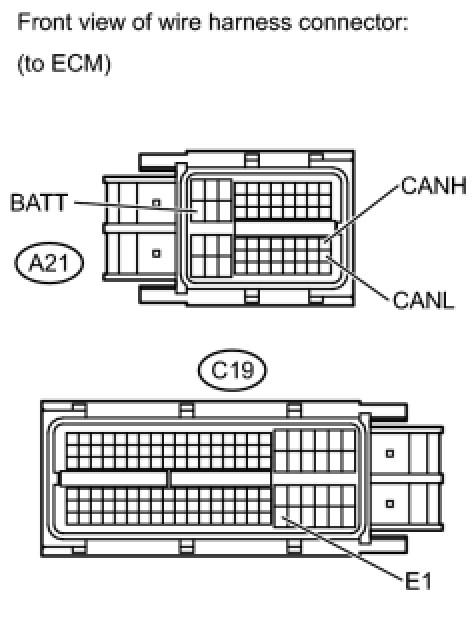

8. ECM






(a) Turn the Ignition switch off.

(b) Disconnect the A21 and C19 ECM connectors.
(c) Measure the resistance according to the value(s) in the table below.

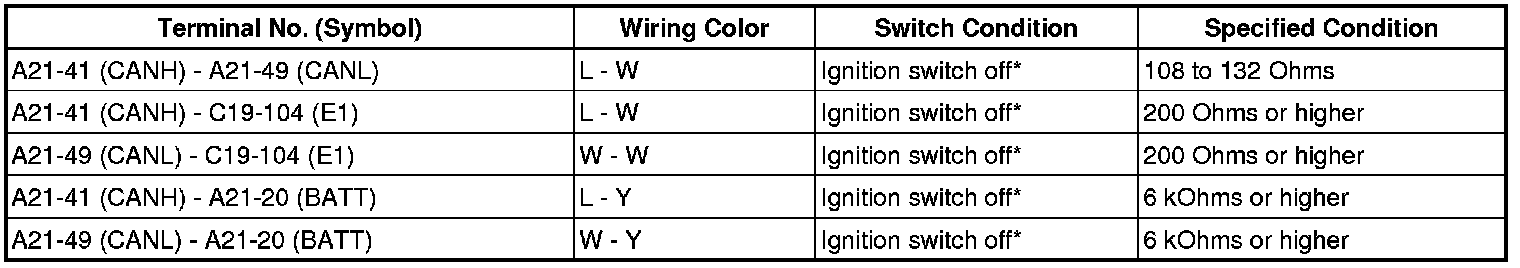

Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

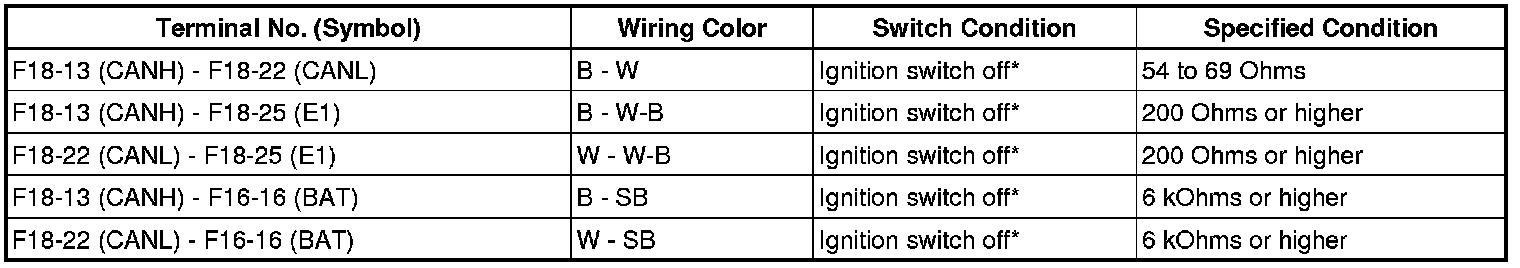

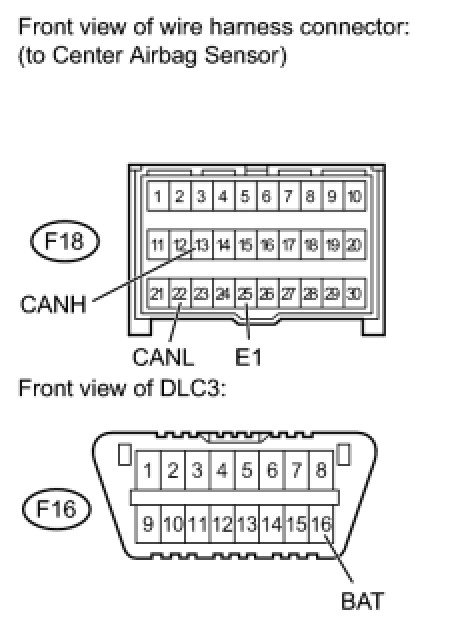

9. CENTER AIRBAG SENSOR ASSEMBLY






(a) Turn the Ignition switch off.

(b) Disconnect the F18 center airbag sensor assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

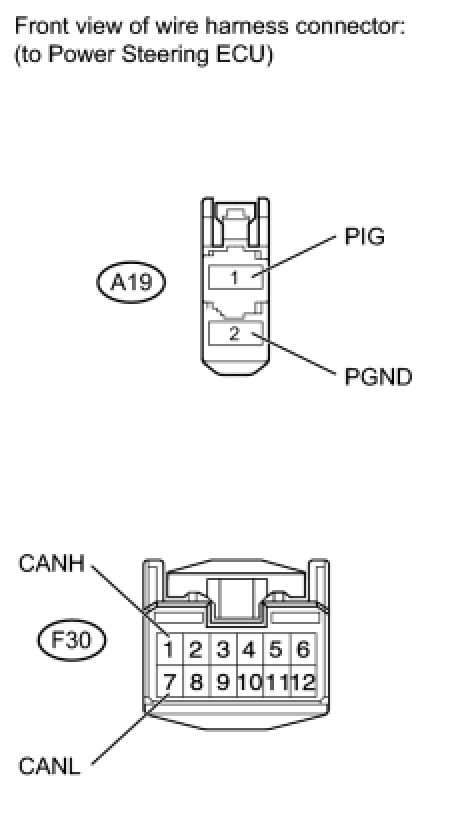

10. POWER STEERING ECU






(a) Turn the Ignition switch off.

(b) Disconnect the A19 and F30 power steering ECU connectors.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

11. COMBINATION METER ECU






(a) Turn the Ignition switch off.

(b) Disconnect the F1 and F2 combination meter assembly connectors.
(c) Measure the resistance according to the value(s) in the table below.

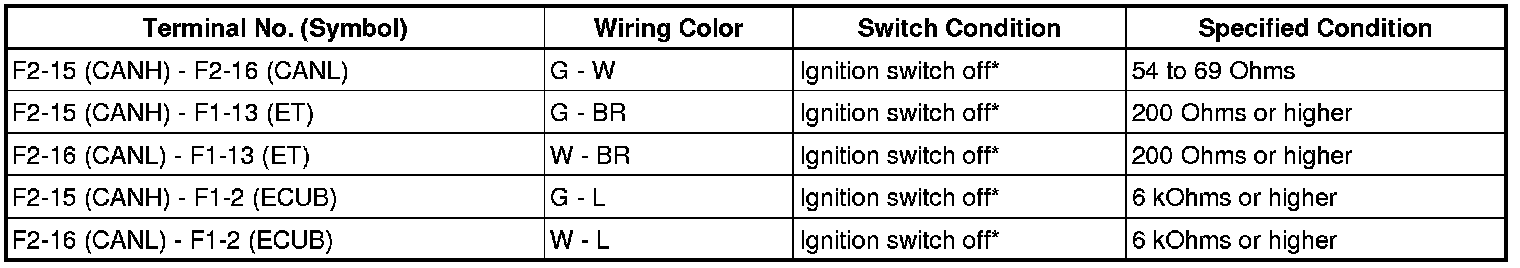

Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

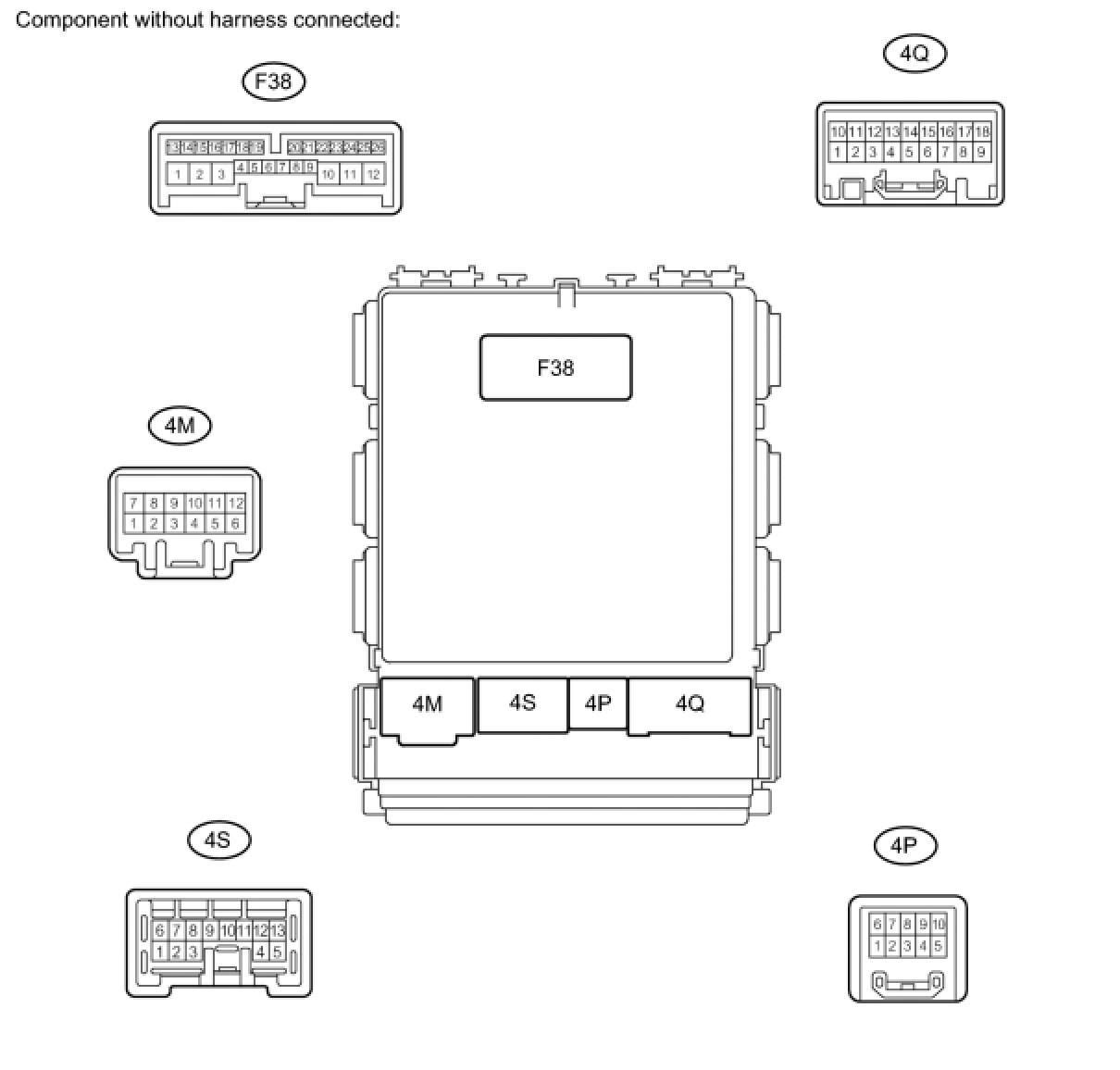

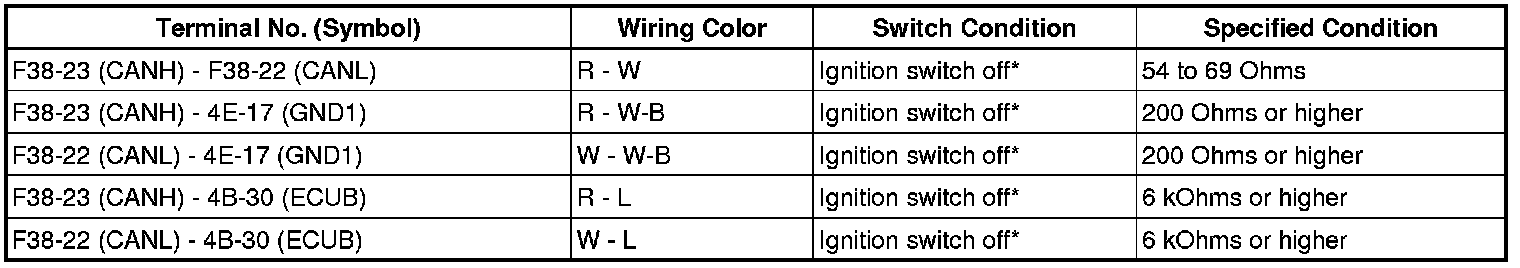

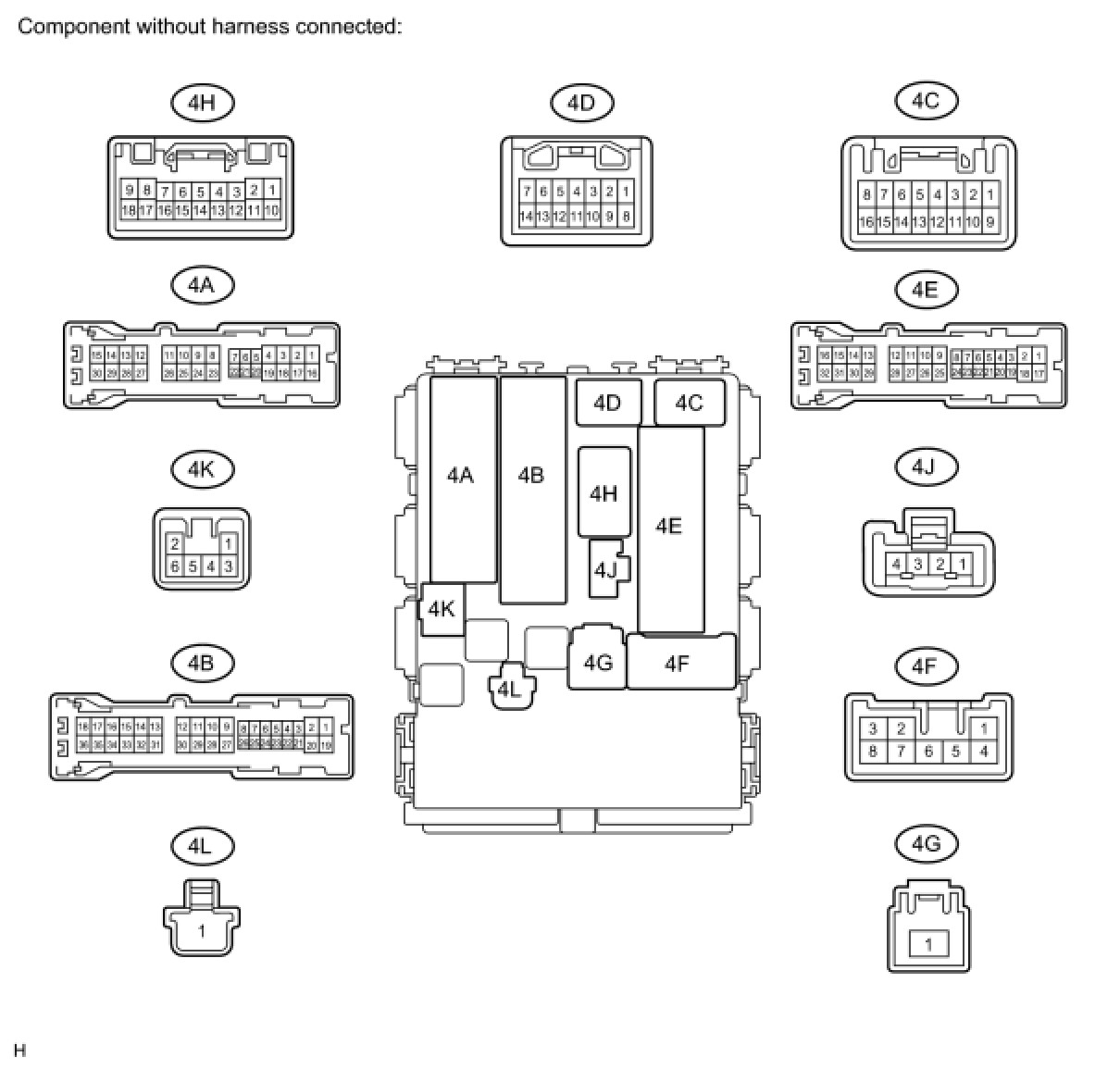

12. MAIN BODY ECU









(a) Turn the Ignition switch off.
(b) Disconnect the F38, 4B and 4E connectors.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: *: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.
