2ZR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR






(a) Provisionally install the engine coolant temperature sensor through a new gasket.

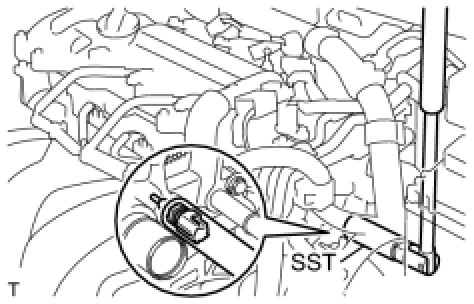

(b) Using SST, tighten the engine coolant temperature sensor.
SST: 09817-33190
Torque: 20 Nm (200 kgf-cm, 14 ft-lbf)
2. ADD ENGINE COOLANT Service and Repair

3. INSPECT FOR COOLANT LEAK Testing and Inspection

4. INSTALL NO. 2 CYLINDER HEAD COVER Installation
