Power Distribution Relay: Testing and Inspection

2ZR-FE STARTING: ACC CUT RELAY: INSPECTION

INSPECTION

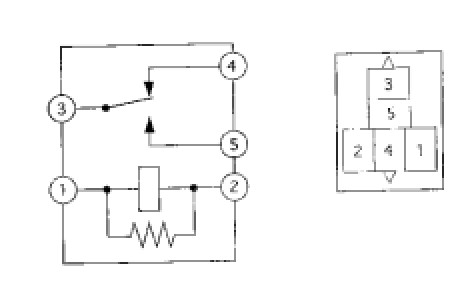

1. INSPECT ACC CUT RELAY






(a) Check the resistance.
(1) Measure the resistance according to the value (s) in the table below.

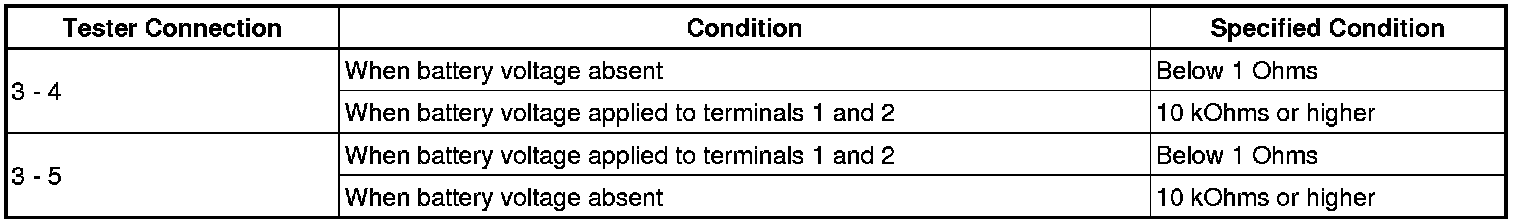

Standard resistance:






If the result is not as specified, replace the relay.
