Removal

2ZR-FE ENGINE MECHANICAL: DRIVE BELT: REMOVAL

REMOVAL

1. REMOVE ENGINE UNDER COVER RH
2. REMOVE NO. 2 CYLINDER HEAD COVER Removal
3. REMOVE FAN AND GENERATOR V BELT

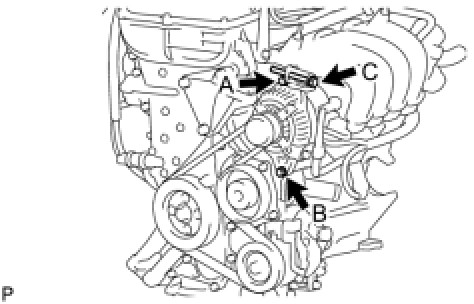

(a) Loosen bolts A and B.
(b) Turn adjusting bolt C to release the tension and remove the V belt from the pulleys.
(c) Remove the fan and generator V belt.
