Removal

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. REMOVE OUTER MIRROR Removal

2. REMOVE OUTER MIRROR COVER Removal







3. REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

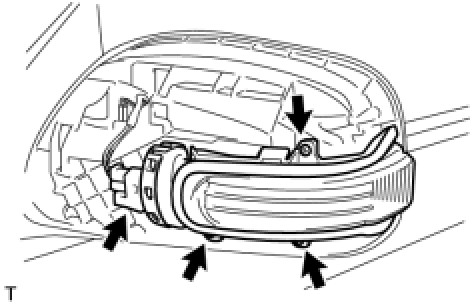

(a) Remove the 3 screws.
(b) Disconnect the connector and remove the side turn signal light.
