LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH

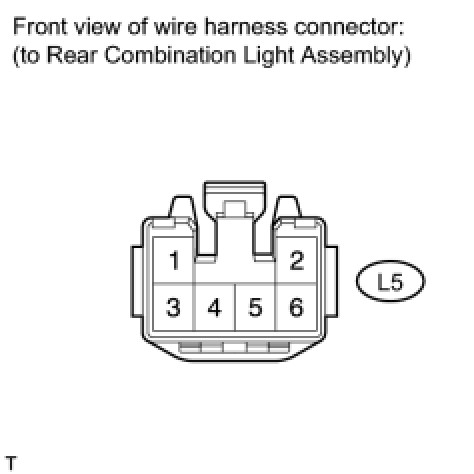

(a) Disconnect the connector from the rear combination light assembly.

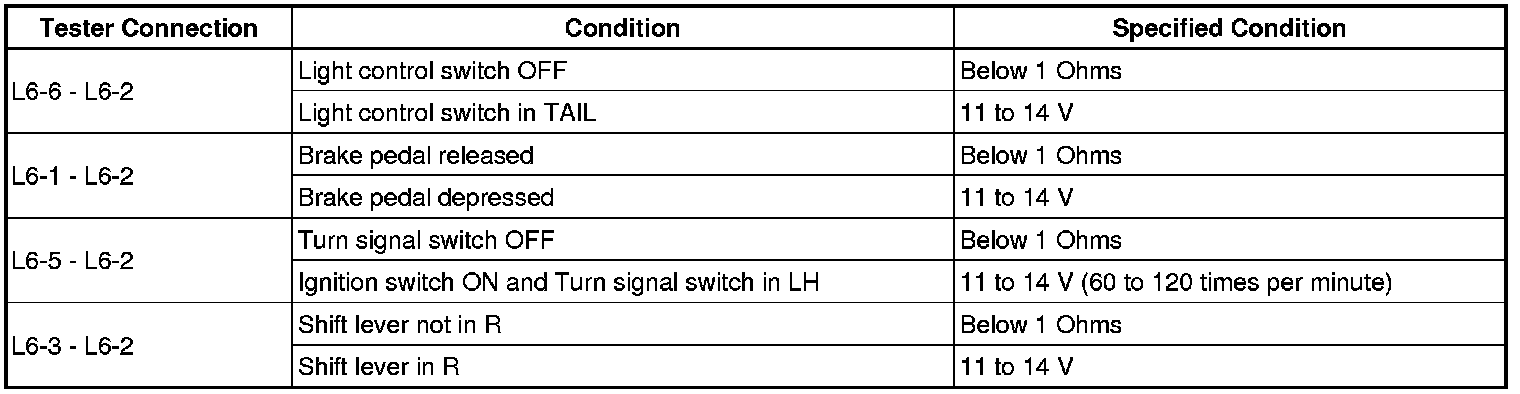

(b) Measure the voltage and resistance according to the value(s) in the table below.
Standard:






2. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH






(a) Disconnect the connector from the rear combination light assembly.
(b) Measure the voltage and resistance according to the value(s) in the table below.
Standard:
