Installation

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL REAR COMBINATION LIGHT ASSEMBLY





(a) Engage the clip, pin and install the rear combination light onto the vehicle.






(b) Connect the connector.
(c) Install the 2 nuts.
Torque: 3.2 Nm (32 kgf-cm, 28 in-lbf)

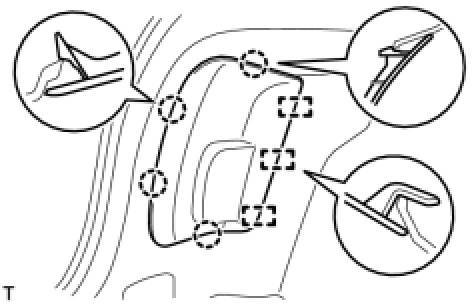

2. INSTALL REAR COMBINATION LIGHT SERVICE COVER
(a) Engage the 4 claws and 3 guides and install the rear combination light service cover.
