Installation

HORN: LOW PITCHED HORN: INSTALLATION

INSTALLATION

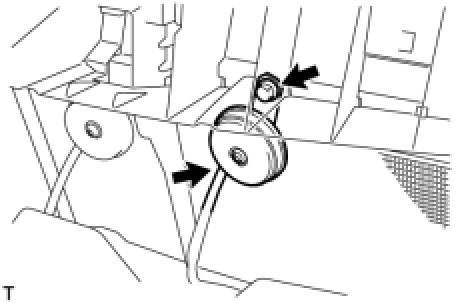

1. INSTALL LOW PITCHED HORN ASSEMBLY






(a) Install the low pitched horn with the bolt.
Torque: 20 Nm (199 kgf-cm, 14 ft-lbf)
(b) Connect the connector.
2. INSTALL FRONT BUMPER COVER Installation
