Removal

LIGHTING: HEADLIGHT ASSEMBLY: REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. REMOVE FRONT BUMPER COVER Removal

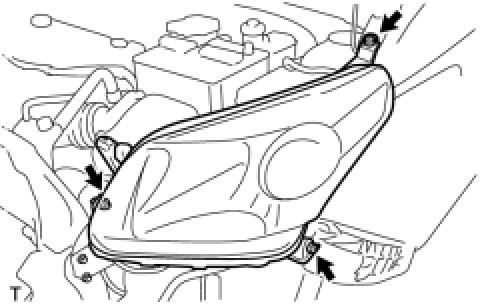

2. REMOVE HEADLIGHT UNIT
(a) Remove the 3 screws.
(b) Disconnect the connectors, then remove the headlight.
