Scion
>>
2008
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Connector Views
Connector Views

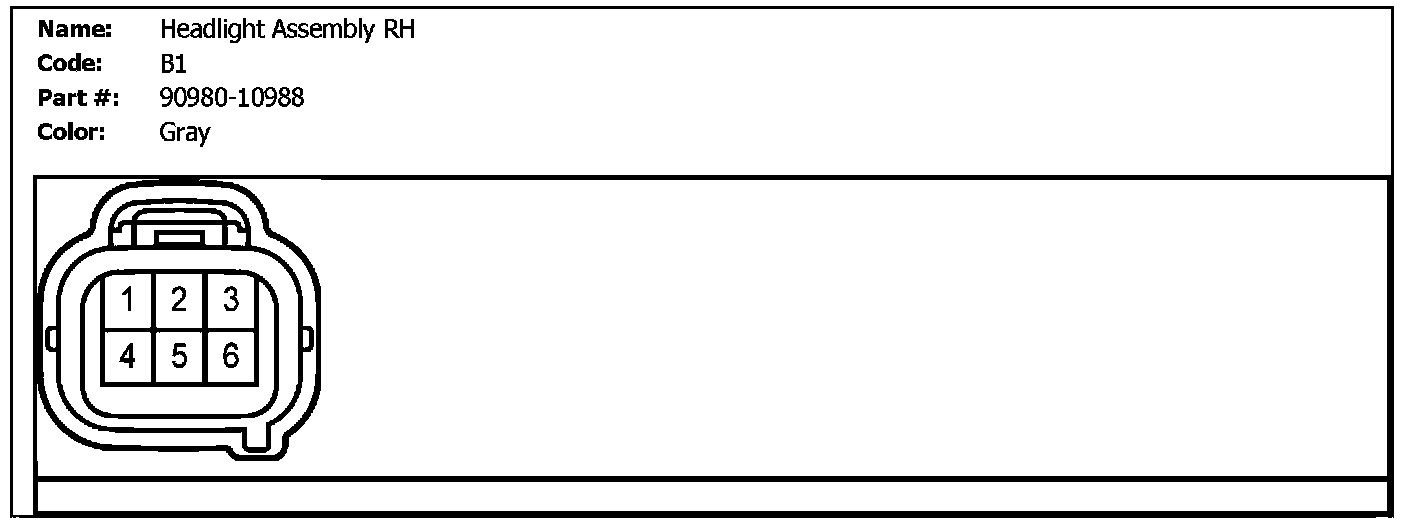

B1 (Headlight Assembly RH):

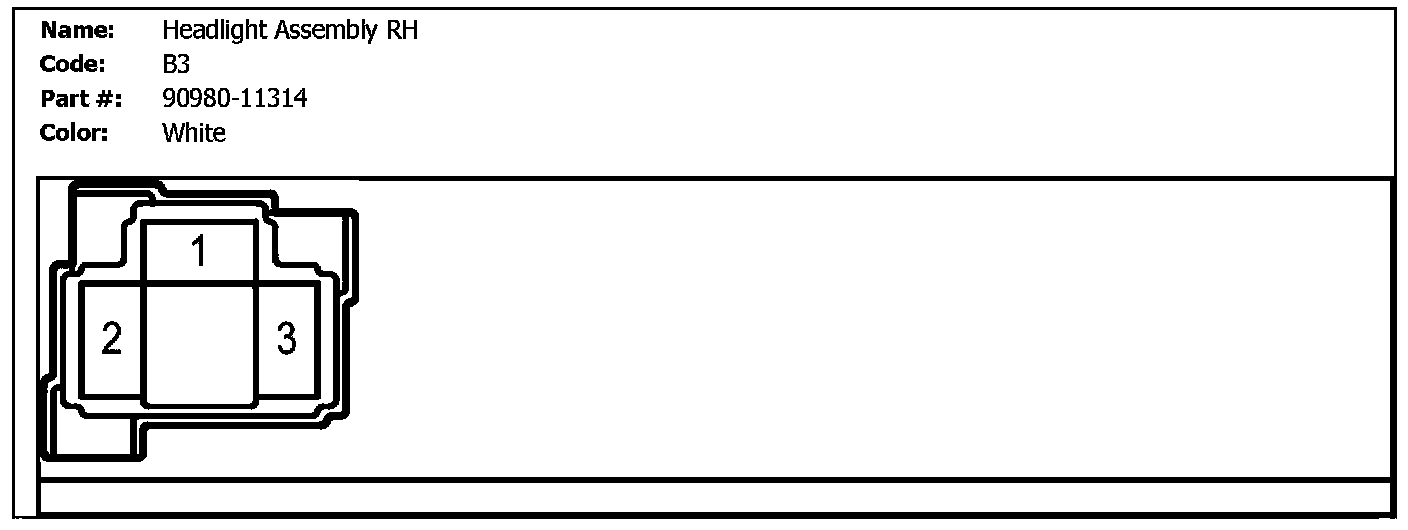

B3 (Headlight Assembly RH):

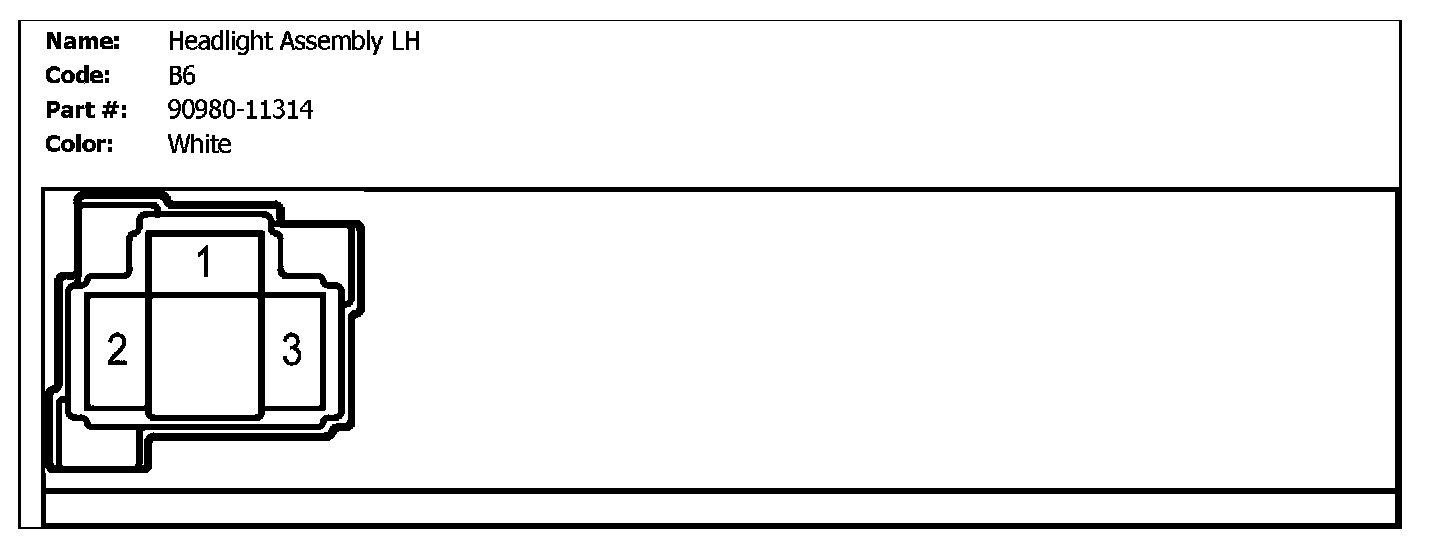

B6 (Headlight Assembly LH):

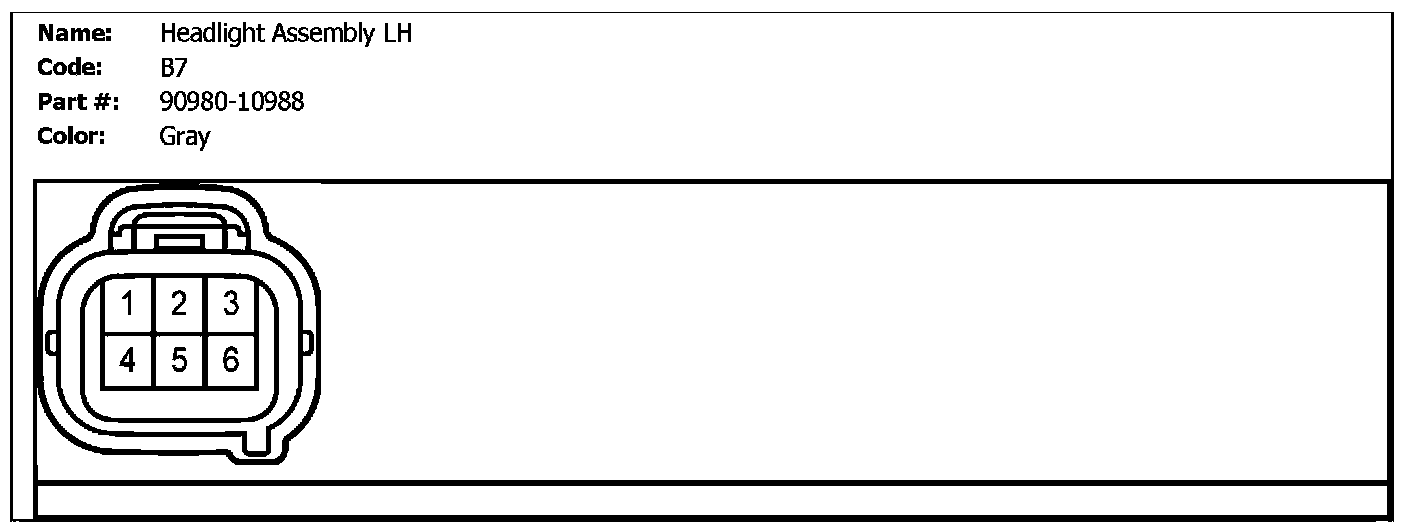

B7 (Headlight Assembly LH):
