Room Light Assembly (for Luggage Compartment)

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage compartment): INSPECTION

INSPECTION





1. INSPECT ROOM LIGHT ASSEMBLY
(a) Check the light operation.

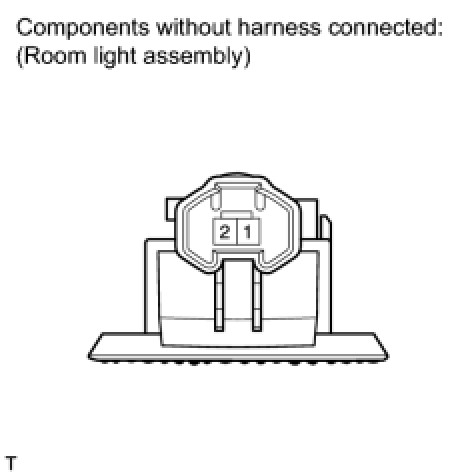

(1) Connect the positive (+) battery lead to terminal 2 and the negative (-) battery lead to terminal 1, then check that the light comes on.
OK:
The light comes on.
If the result is not as specified, replace the bulb.
