Installation

LIGHTING: ROOM LIGHT ASSEMBLY (for Center): INSTALLATION

INSTALLATION

1. INSTALL ROOM LIGHT ASSEMBLY
(a) Install No. 1 room light bulb.

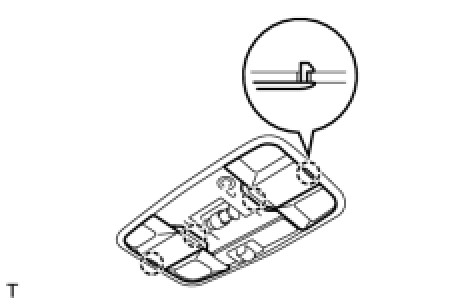

(b) Engage the 4 claws and install the room light switch base.

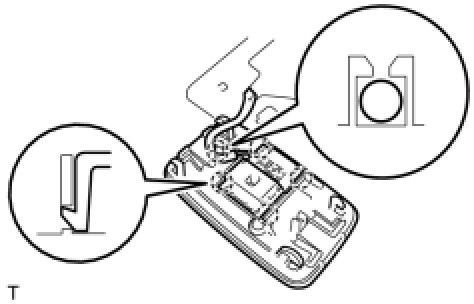

(c) Install the roof wire into the room light claw.

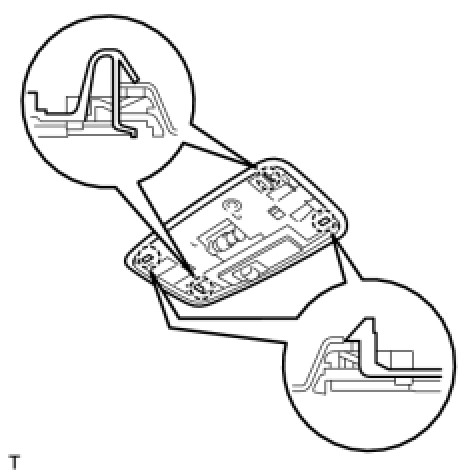

(d) Engage the 4 claws and install the room light.






(e) Engage the 4 claws and install the 2 covers.

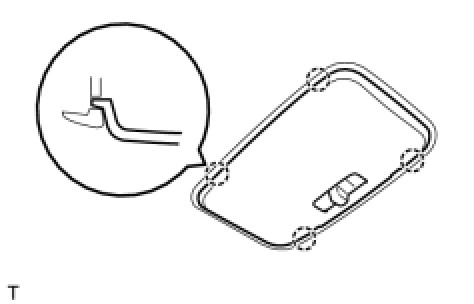

(f) Engage the 4 claws and install the room light lens.
