Lighting and Horns: Description and Operation

LIGHTING: LIGHTING SYSTEM

SYSTEM DESCRIPTION

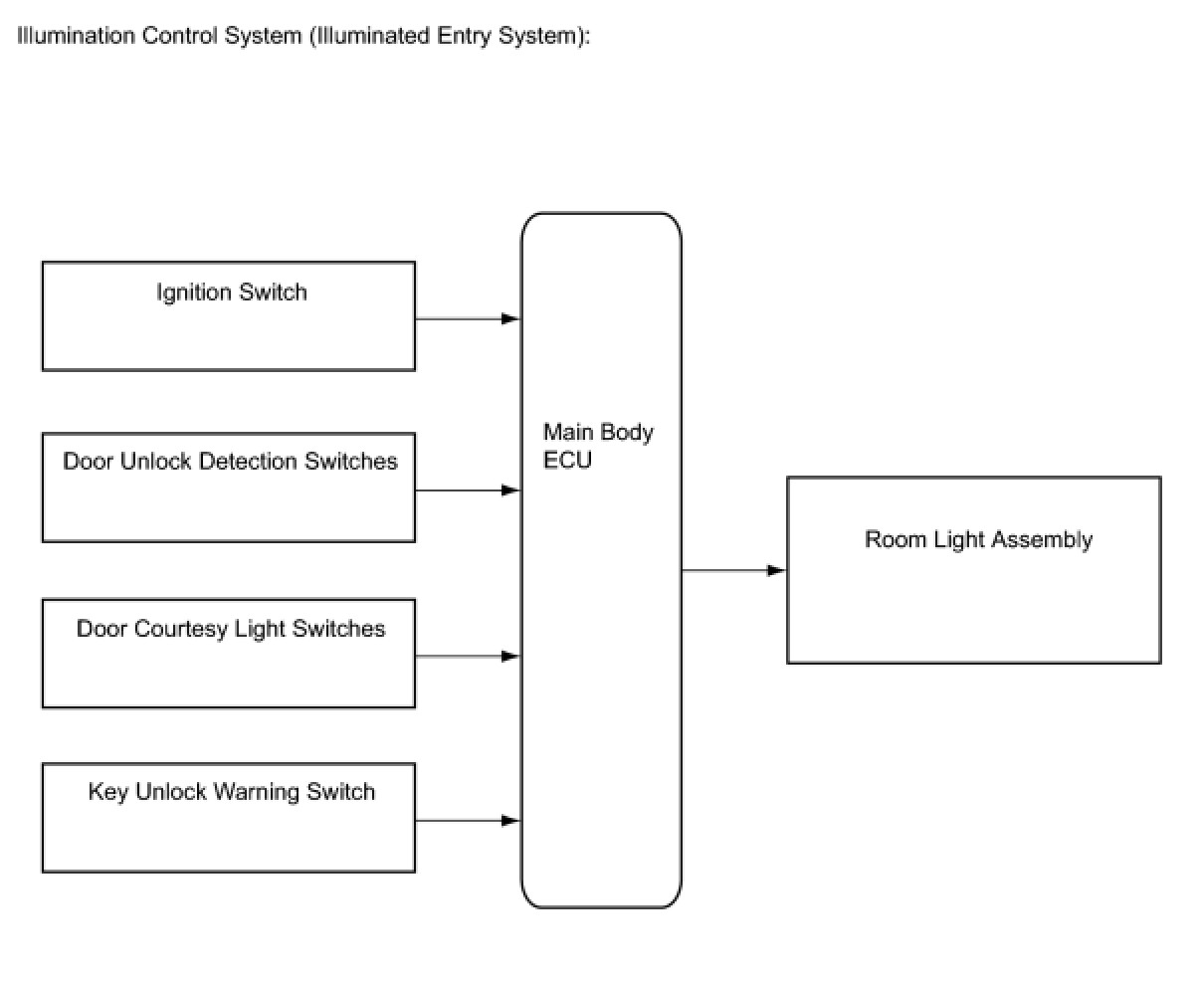

1. ILLUMINATION CONTROL SYSTEM (Illuminated entry system):

- The illuminated entry system provides convenience when getting in or out of the vehicle at night. This system controls the room light.

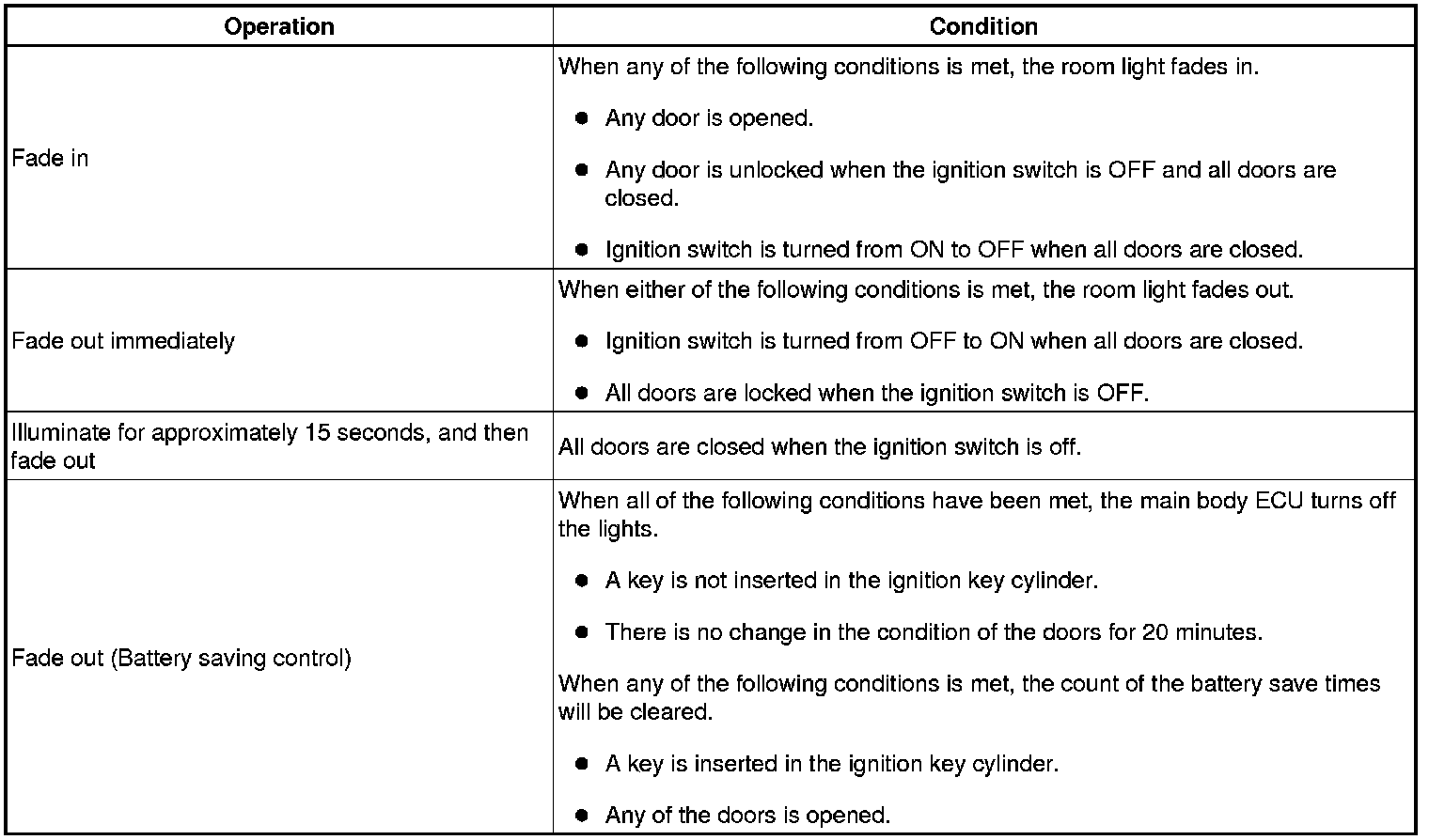

- This function is controlled by the main body ECU. The operation and condition of this control are described below.

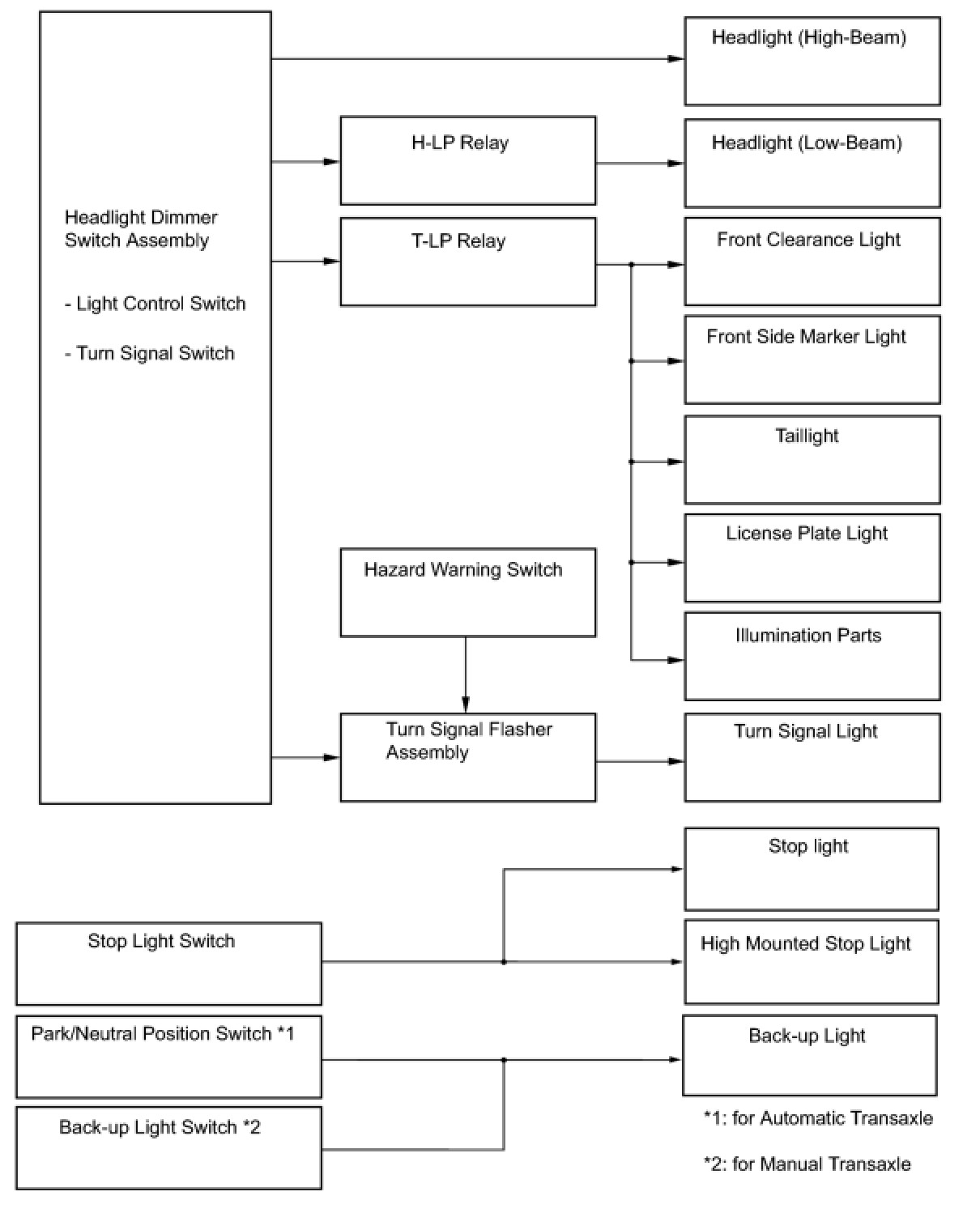

SYSTEM DIAGRAM
