Console Lamp: Testing and Inspection

LIGHTING: PERSONAL LIGHT ASSEMBLY: INSPECTION

INSPECTION





1. INSPECT PERSONAL LIGHT ASSEMBLY
(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.
Standard resistance:






If the result is not as specified, replace the personal light.
(b) Check the drivers light operation.

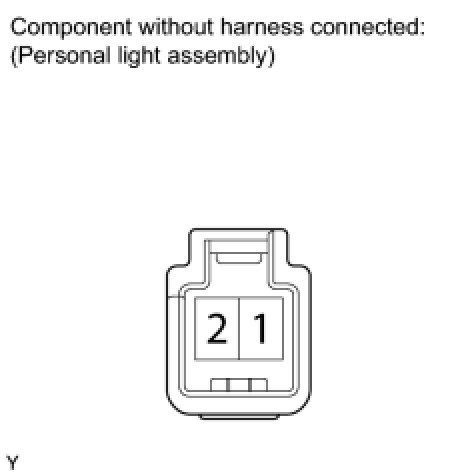

(1) Connect the positive (+) battery lead to terminal 1 and the negative (-) battery lead to terminal 2. then check that the light illuminates.
(2) Check that the light comes on when the drivers switch on.
OK:
The light comes on.
If the result is not as specified, replace the bulb or personal light.
(c) Check the passengers light operation.
(1) Connect the positive (+) battery lead to terminal 1 and negative (-) battery lead to terminal 2.
(2) Check that the light comes on when the passengers switch on.
OK:
The light comes on.
If the result is not as specified, replace the bulb or personal light.
