Installation

LIGHTING: PERSONAL LIGHT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL PERSONAL LIGHT BULB
(a) Install the personal light bulb into the light socket.

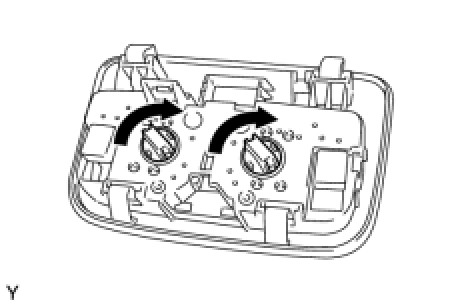

(b) Turn the personal light bulb socket and bulb, in the direction indicated by the arrows in the illustration.






2. INSTALL PERSONAL LIGHT ASSEMBLY
(a) Connect the connector.

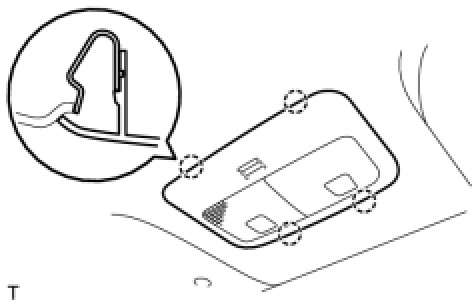

(b) Engage the 4 claws and install the personal light.
