2ZR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE NO. 1 SEAT LEG COVER Removal

2. REMOVE NO. 2 SEAT LEG COVER Removal

3. REMOVE REAR SEAT ASSEMBLY Removal

4. REMOVE REAR FLOOR SERVICE HOLE COVER

5. DISCHARGE FUEL SYSTEM PRESSURE
6. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

7. DISCONNECT FUEL TANK VENT HOSE

8. REMOVE FUEL PUMP GAUGE RETAINER

9. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

10. REMOVE FUEL SENDER GAUGE ASSEMBLY

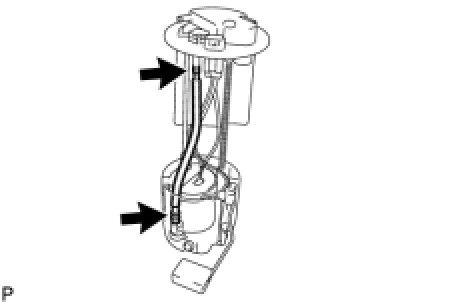

NOTE: Do not separate the tube indicated in the illustration.





(a) Disconnect the fuel sender gauge connector.






(b) Release the lock by sliding the fuel sender gauge upward, as shown in the illustration.
