Reassembly

METER: COMBINATION METER: REASSEMBLY

REASSEMBLY





1. INSTALL CLIP

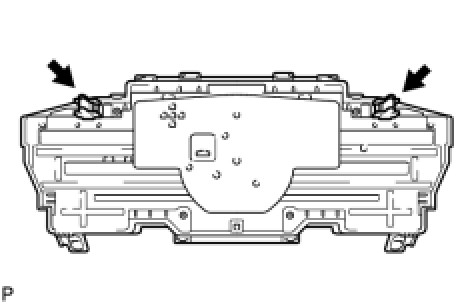

(a) Install the 2 clips.






2. INSTALL NO. 3 METER LENS

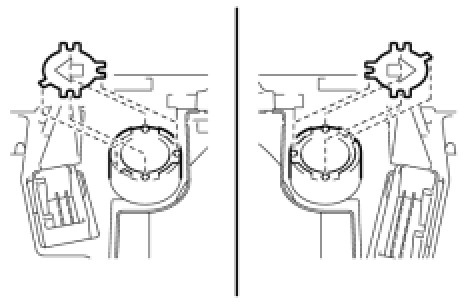

(a) Align the protrusion of the combination meter with the cutout of the 2 No. 3 meter lenses and install the 2 No. 3 meter lenses.






3. INSTALL NO. 2 METER LENS

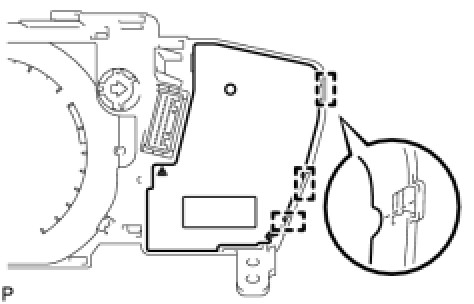

(a) Engage the 3 guides and install the No. 2 meter lens.






4. INSTALL NO. 1 METER LENS

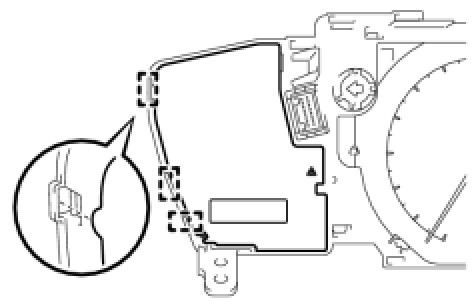

(a) Engage the 3 guides and install the No. 1 meter lens.






5. INSTALL NO. 1 COMBINATION METER COVER

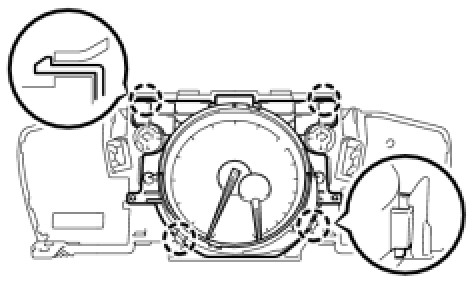

(a) Engage the 4 claws and install the No. 1 combination meter cover.






6. INSTALL COMBINATION METER GLASS

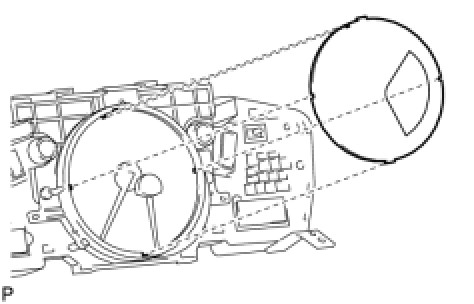

(a) Align the protrusion of the No. 2 combination meter cover with the cutout of the combination meter glass and install the combination meter glass.






7. INSTALL NO. 2 COMBINATION METER COVER

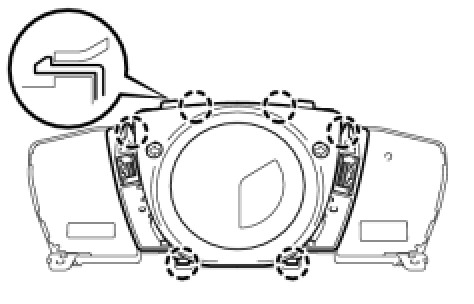

(a) Engage the 6 claws and install the No. 2 combination meter cover.
