Installation

METER: COMBINATION METER: INSTALLATION

INSTALLATION





1. INSTALL COMBINATION METER ASSEMBLY

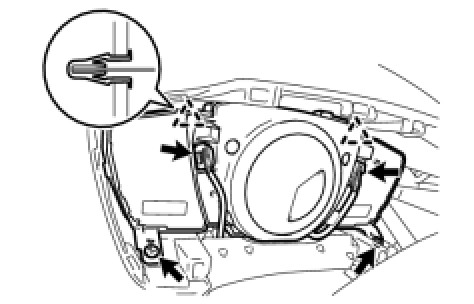

(a) Engage the 2 clips and install the combination meter.
(b) Install the 2 screws and connect the 2 connectors.






2. INSTALL INSTRUMENT CLUSTER FINISH PANEL

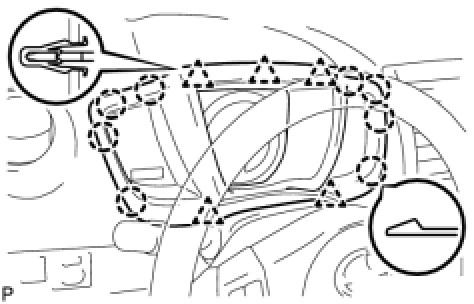

(a) Engage the 8 claws and the 5 clips and install the cluster finish panel.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
