Disassembly

METER: COMBINATION METER: DISASSEMBLY

DISASSEMBLY





1. REMOVE NO. 2 COMBINATION METER COVER
(a) Disengage the 6 claws and remove the No. 2 combination meter cover.






2. REMOVE COMBINATION METER GLASS
(a) Remove the combination meter glass.






3. REMOVE NO. 1 COMBINATION METER COVER
(a) Disengage the 4 claws and remove the No. 1 combination meter cover.

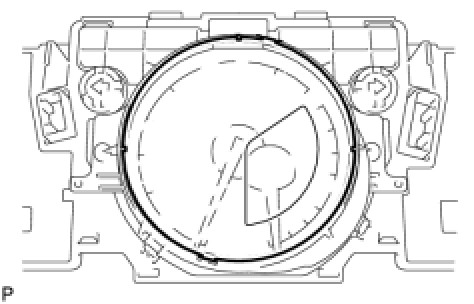

4. REMOVE NO. 1 METER LENS
(a) Disengage the 3 guides and remove the No. 1 meter lens.






5. REMOVE NO. 2 METER LENS
(a) Disengage the 3 guides and remove the No. 2 meter lens.






6. REMOVE NO. 3 METER LENS
(a) Remove the 2 No. 3 meter lenses.

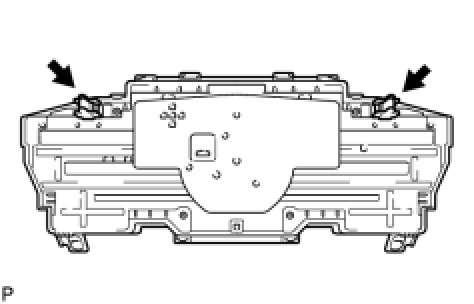

7. REMOVE CLIP
(a) Remove the 2 clips.
