Meter / Gauge System
















METER: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

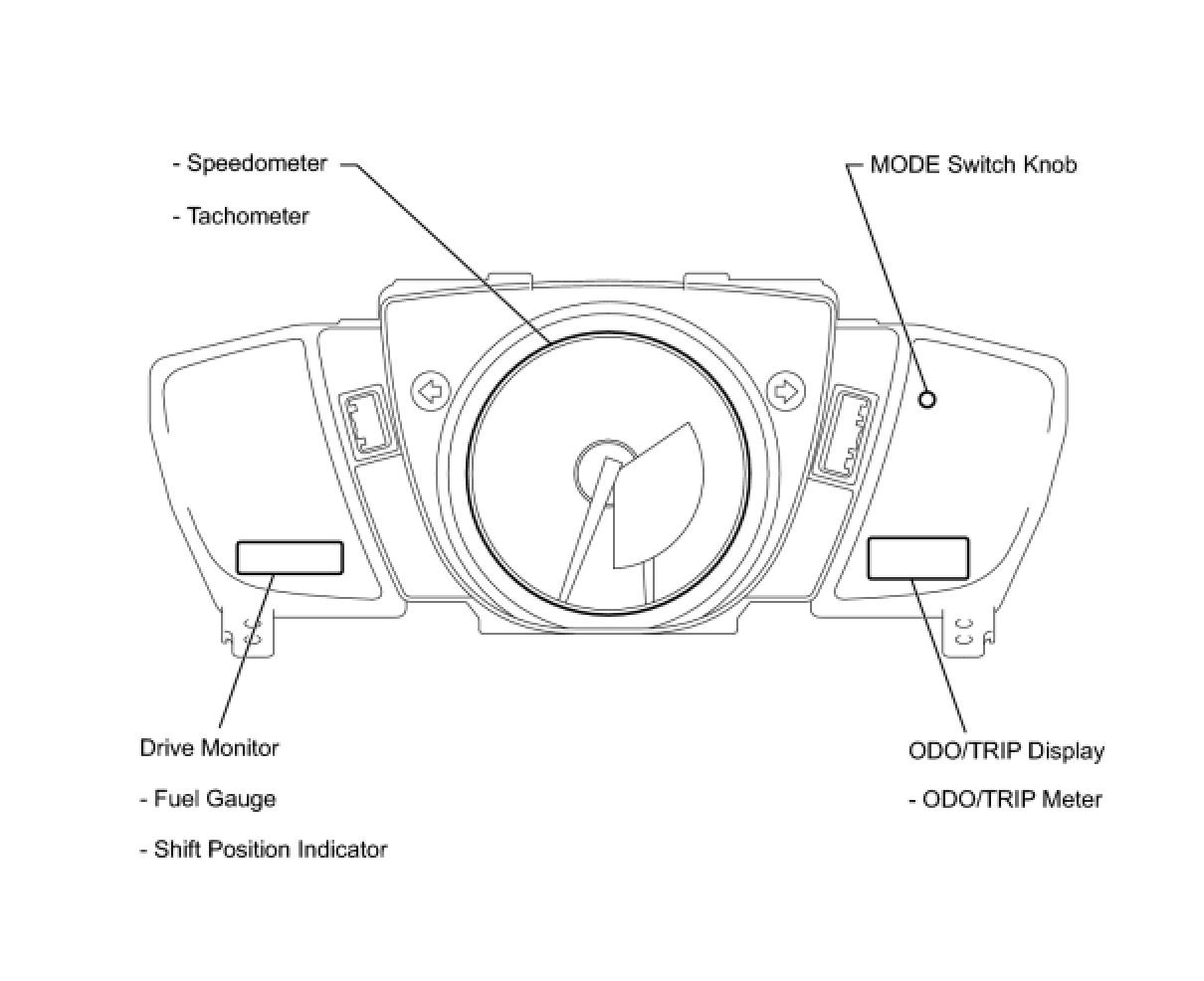

1. METER GAUGE AND WARNING / INDICATOR

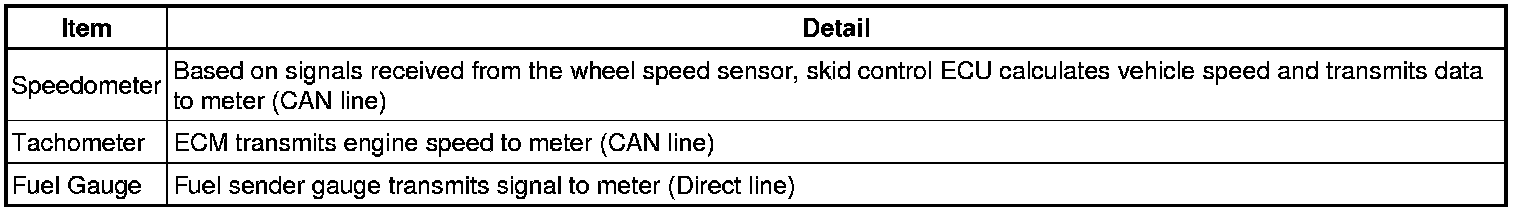

Gauge:

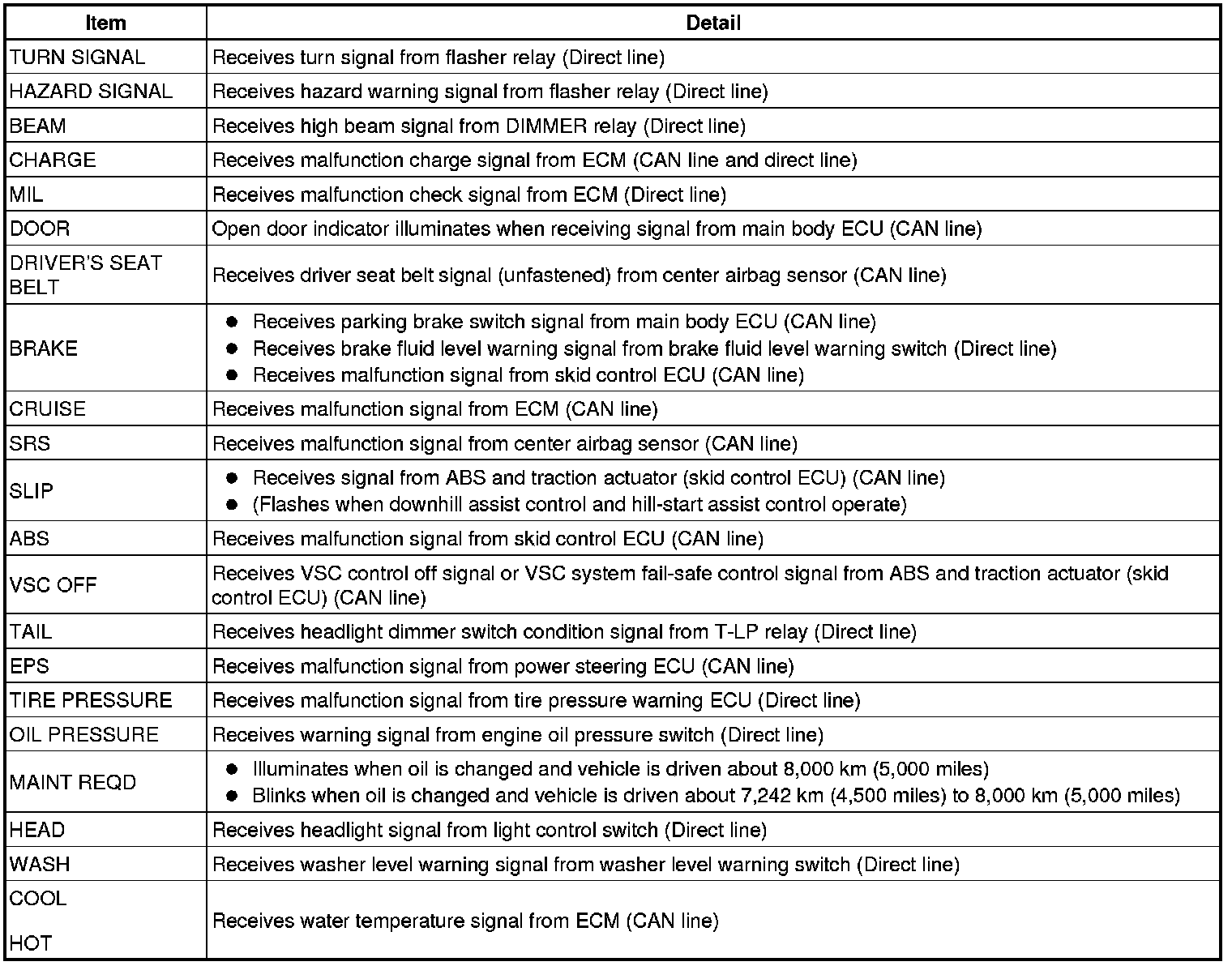

Warning / Indicator:

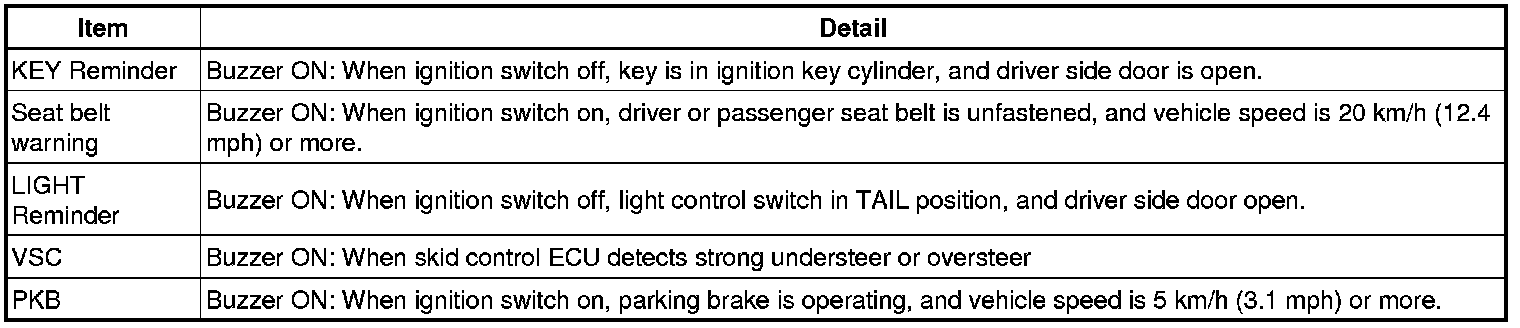

Warning / Buzzer:

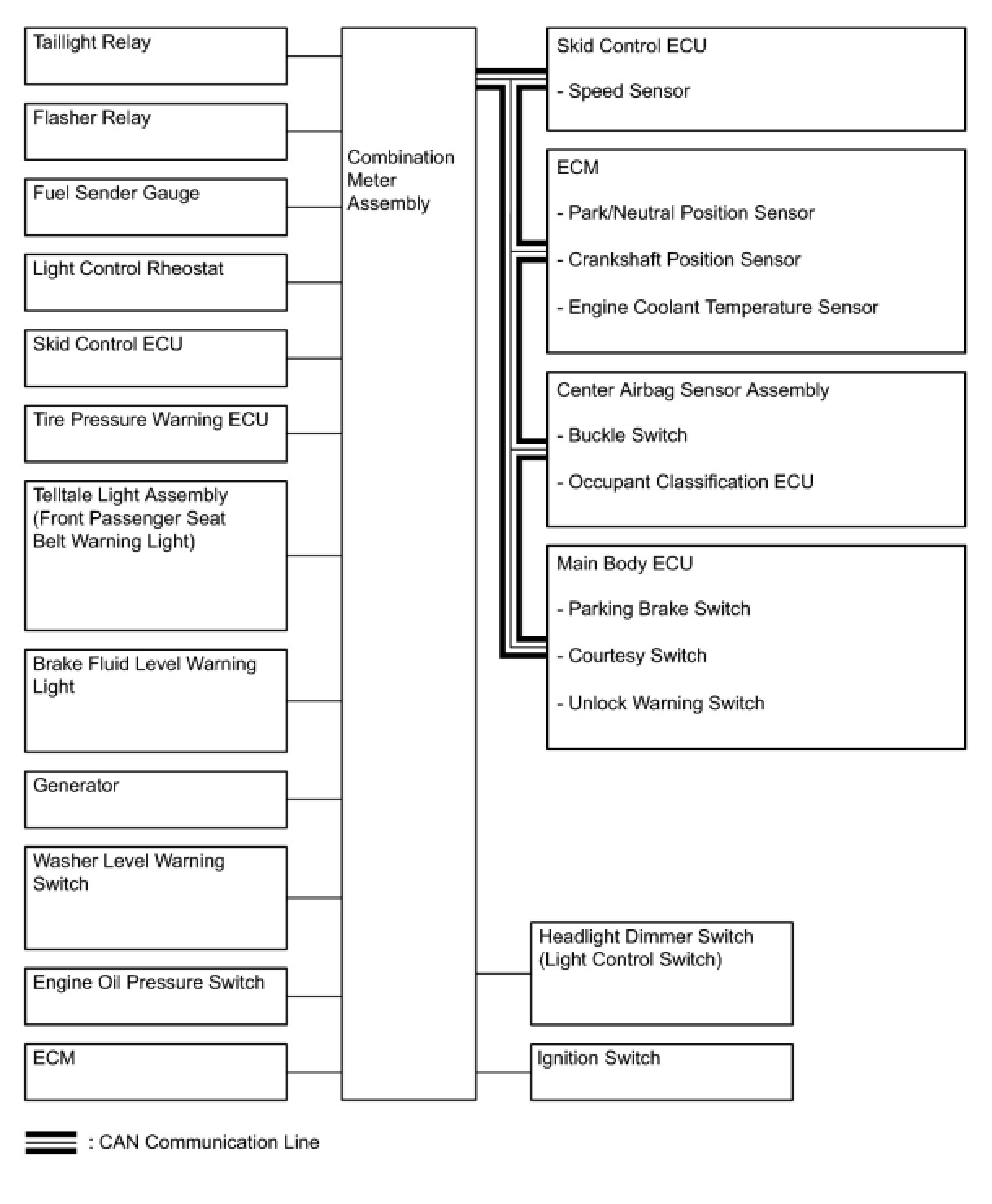

SYSTEM DIAGRAM
