Housing Assembly HVAC: Testing and Inspection

AIR CONDITIONING: PTC HEATER ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT PTC HEATER ASSEMBLY






(a) Disconnect the connector from the PTC heater.
(b) Measure the resistance according to the value(s) in the table below.

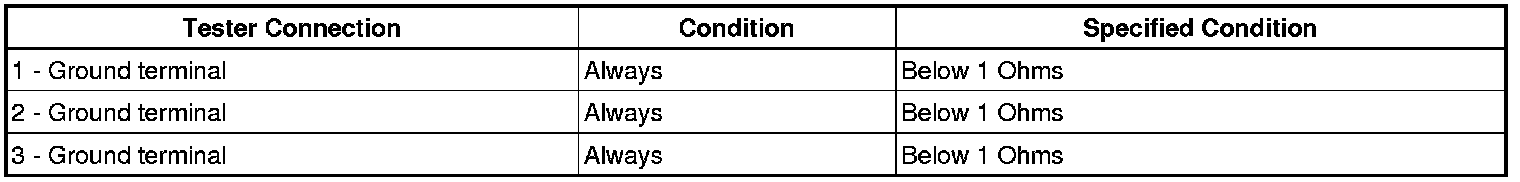

Standard resistance:





If the result is not as specified, replace the PTC heater assembly.
