Hose/Line HVAC: Service and Repair

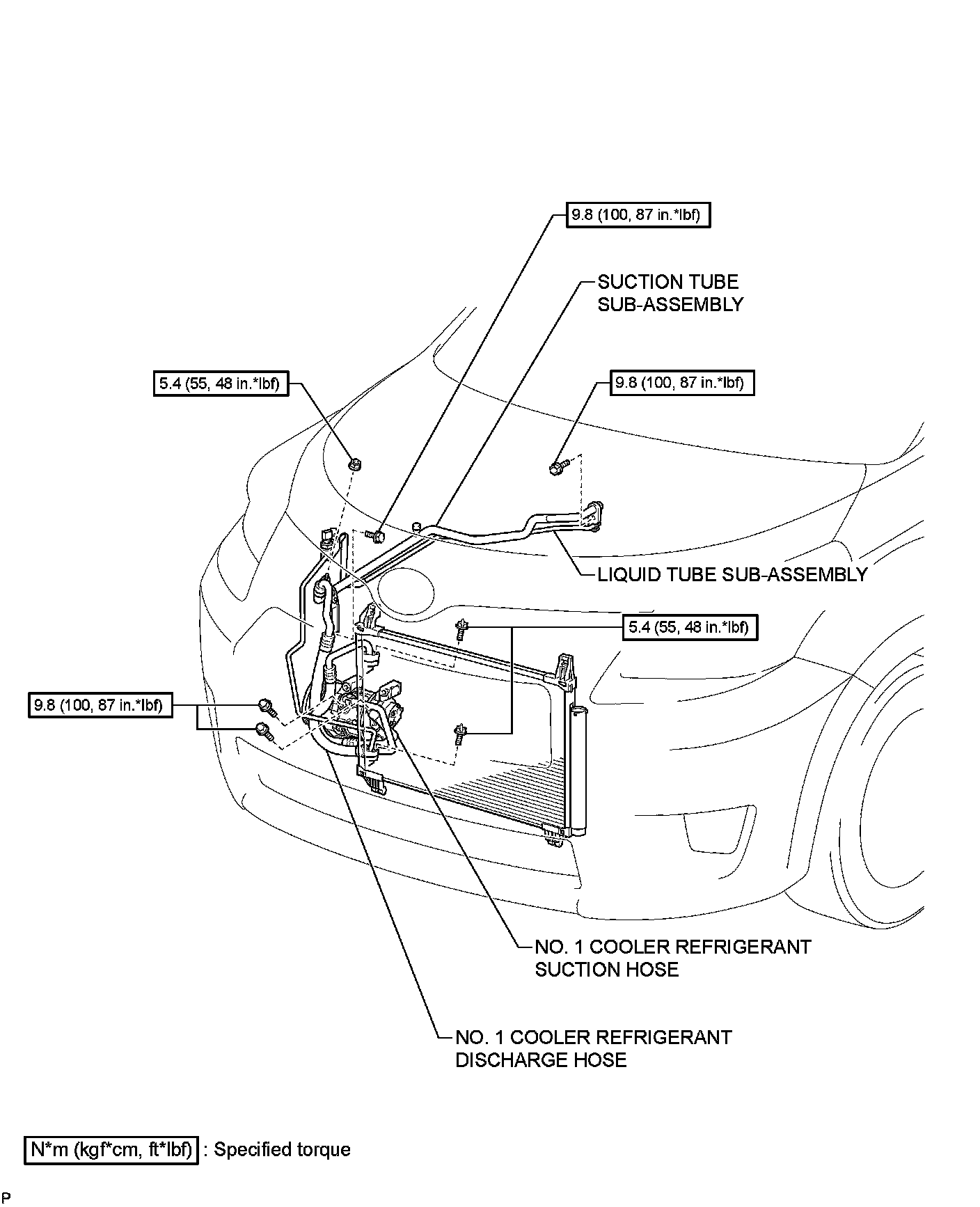

AIR CONDITIONING: REFRIGERANT LINE: COMPONENTS
COMPONENTS
ILLUSTRATION
