Removal

AIR CONDITIONING: COMPRESSOR (for 2ZR-FE): REMOVAL

REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

2. REMOVE ENGINE UNDER COVER RH
3. REMOVE NO. 2 CYLINDER HEAD COVER

4. REMOVE FAN AND GENERATOR V BELT

5. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

(a) Remove the bolt and disconnect the discharge hose from the compressor.
(b) Remove the O-ring from the discharge hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

6. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE

(a) Remove the bolt and disconnect the suction hose from the compressor.
(b) Remove the O-ring from the suction hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

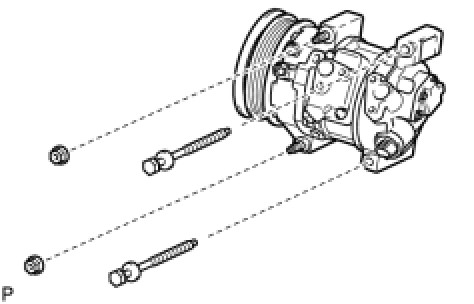

7. REMOVE COMPRESSOR

(a) Disconnect the connector and 2 clamps.

(b) Remove the 2 bolts and the 2 nuts.
