Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY

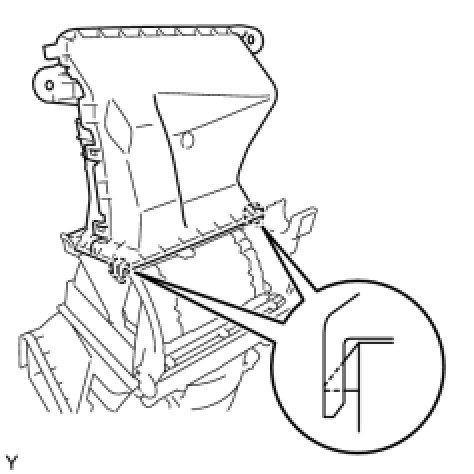

1. REMOVE NO. 1 AIR DUCT SUB-ASSEMBLY
(a) Disengage the 2 claws and remove the air duct.

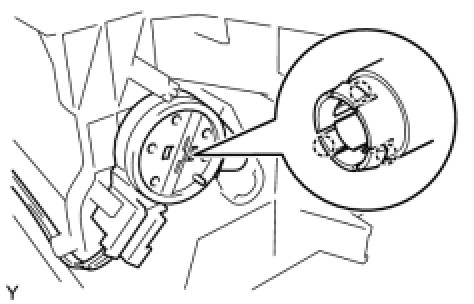

2. REMOVE AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY
(a) Disengage the 3 claws and remove the air inlet damper control cable.

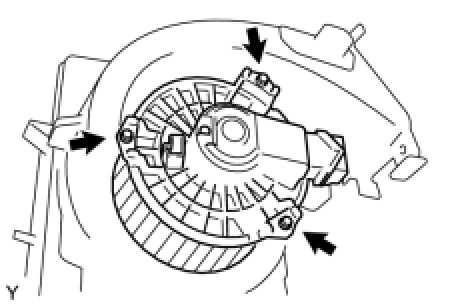

3. REMOVE FRONT BLOWER MOTOR
(a) Remove the 3 screws and the blower motor.






4. REMOVE BLOWER RESISTOR
(a) Remove the 2 screws and the blower resistor.






5. REMOVE AIR FILTER CASE
(a) Pinch portion A to disengage the claw and remove the air filter case.






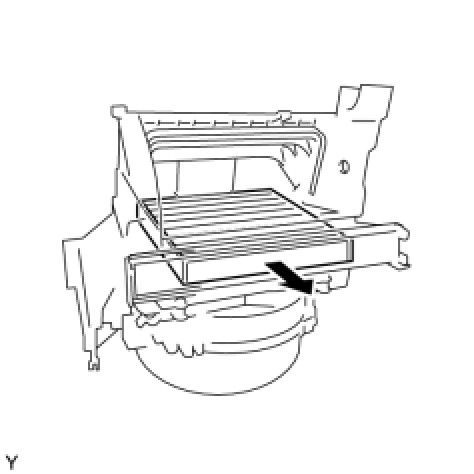

6. REMOVE CLEAN AIR FILTER (w/ Clean Air Filter)
(a) Remove the clean air filter from the blower unit.
