Blower Motor Resistor: Testing and Inspection

AIR CONDITIONING: FRONT BLOWER RESISTOR: INSPECTION

INSPECTION

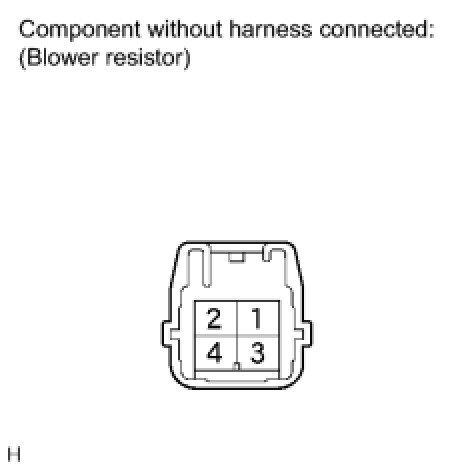

1. INSPECT FRONT BLOWER RESISTOR

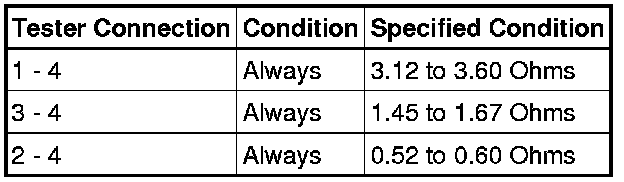

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the blower resistor.
