2ZR-FE COOLING: COOLING FAN RESISTOR: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL LH
2. SEPARATE FRONT FENDER LINER LH
(a) Remove the 3 screws and 3 clips and separate the front fender liner LH.






3. REMOVE COOLING FAN RESISTOR

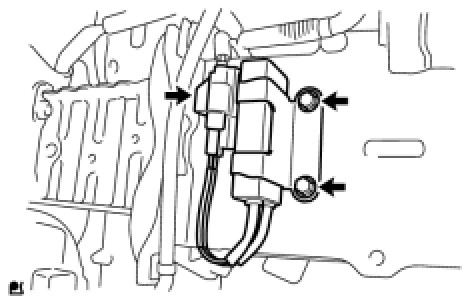

(a) Disconnect the connector from the cooling fan resistor.
(b) Remove the 2 bolts and cooling fan resistor.
