Scion
>>
2008
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Radiator Cooling Fan
>>
Description and Operation
Radiator Cooling Fan: Description and Operation

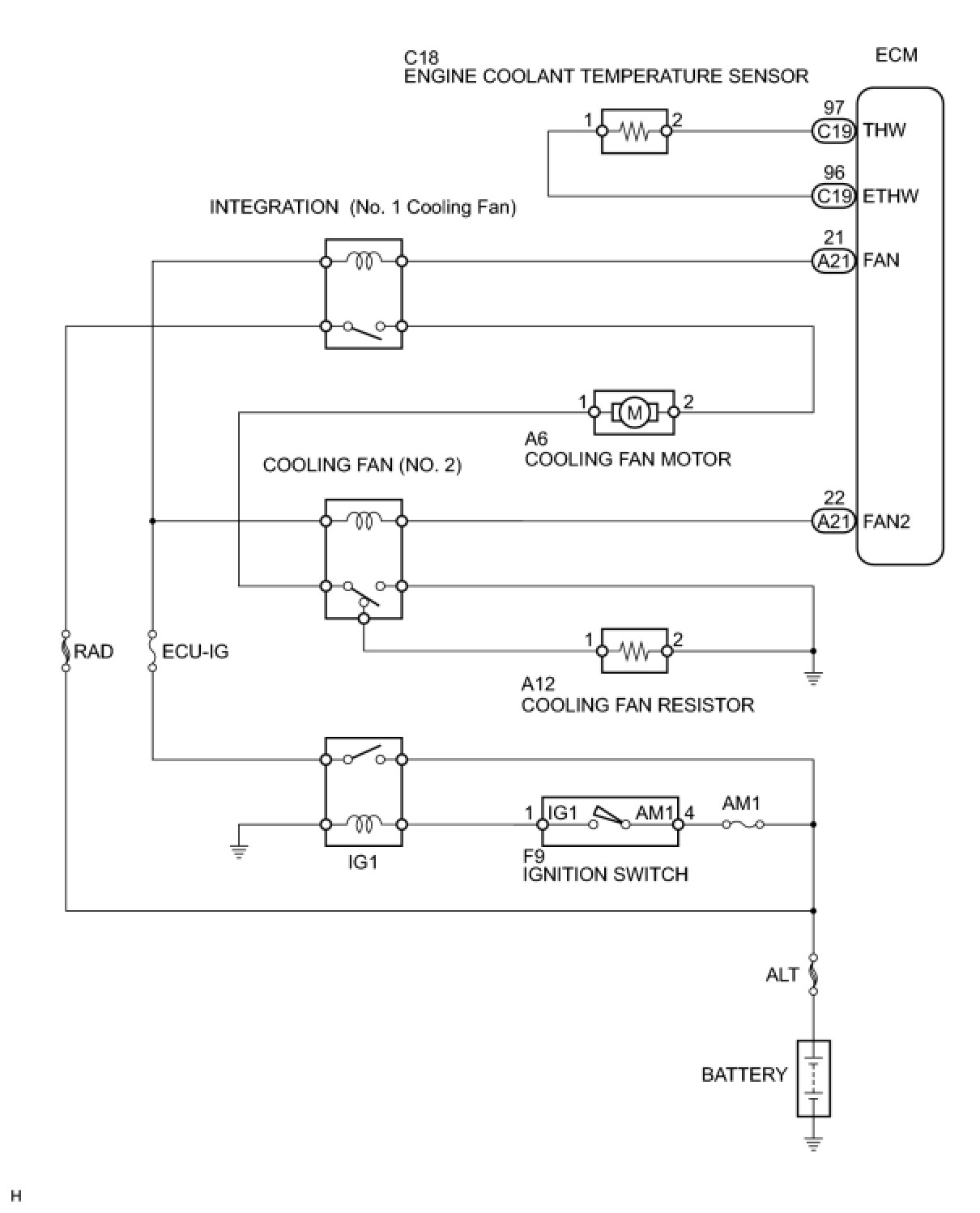

2ZR-FE COOLING: COOLING FAN SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM
