Home >> Scion >> 2008 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Diagrams >> Grounds >> Wire and Wire, Ground Points In Body

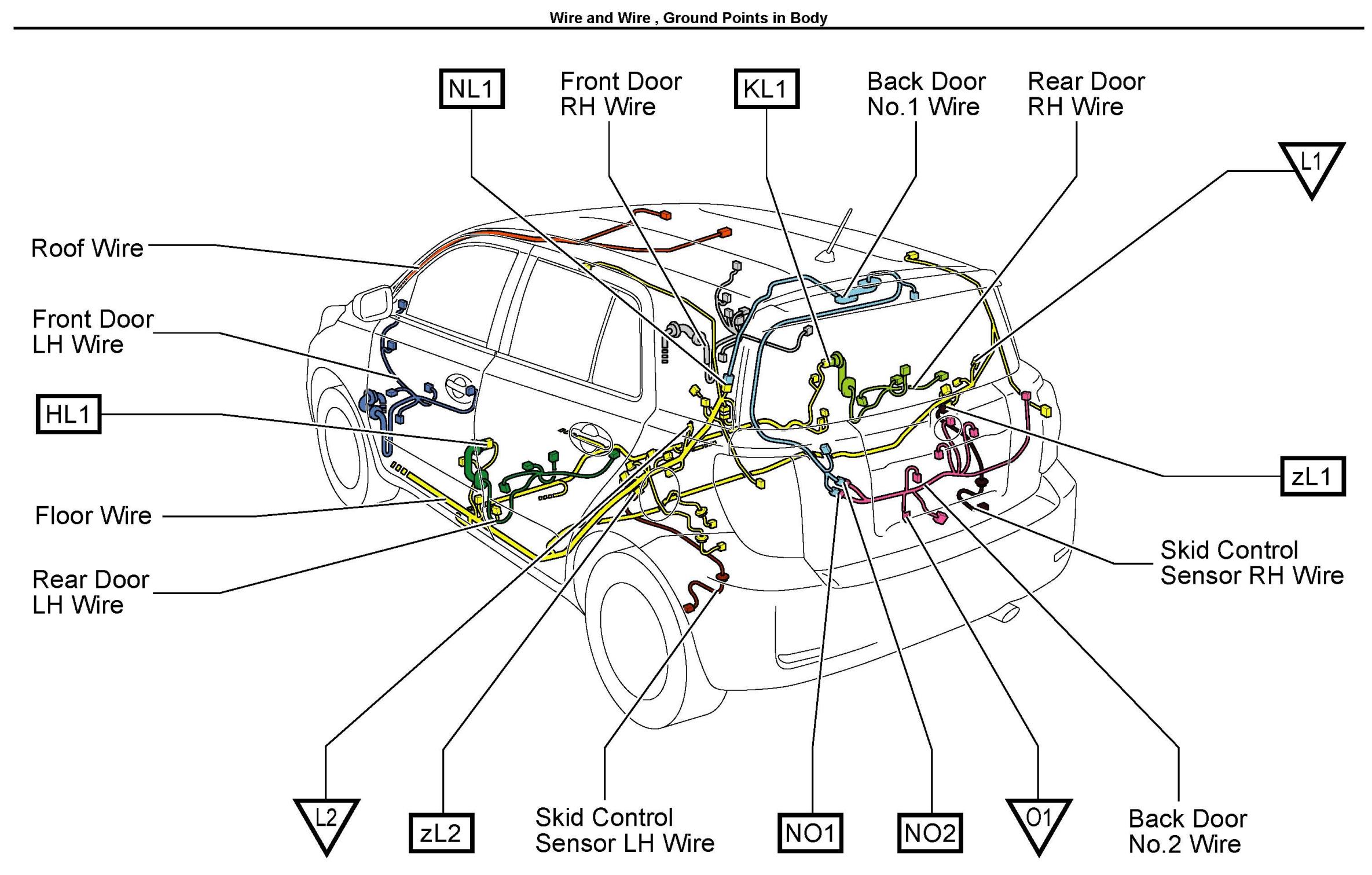

Wire and Wire, Ground Points In Body

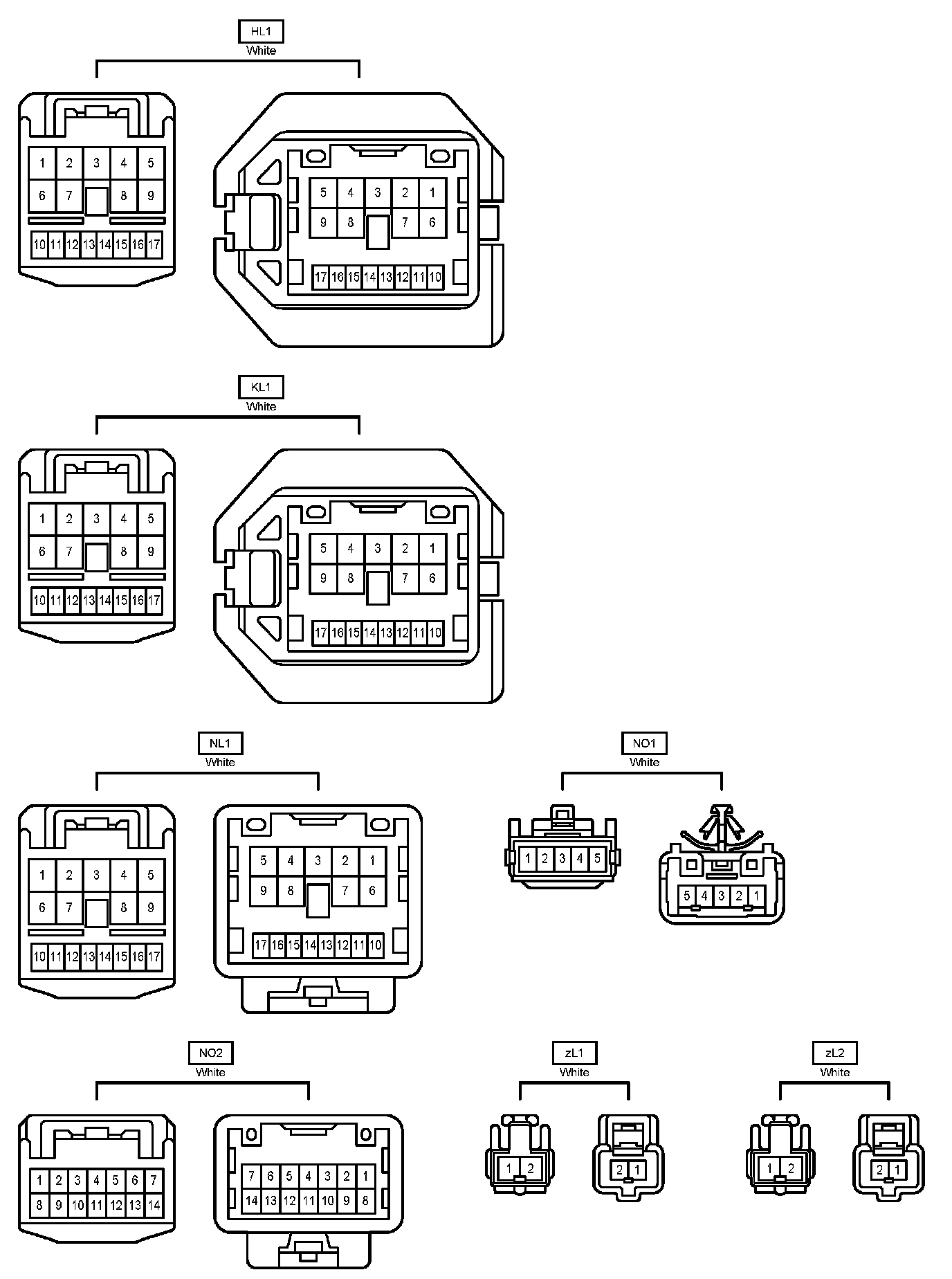

HL1-zL2, L1-O1:



HL1-zL2:
