Seat Belt Warning

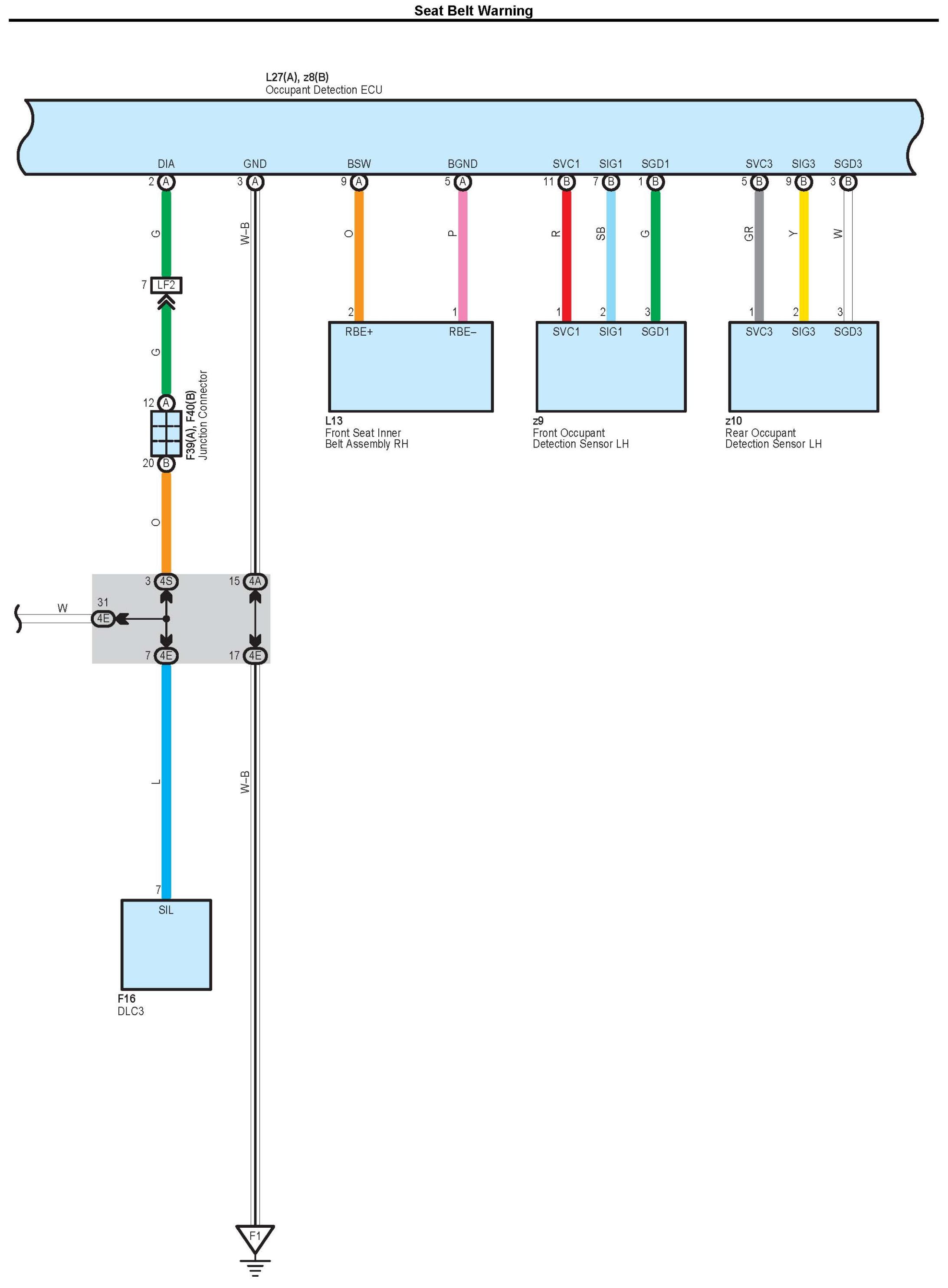

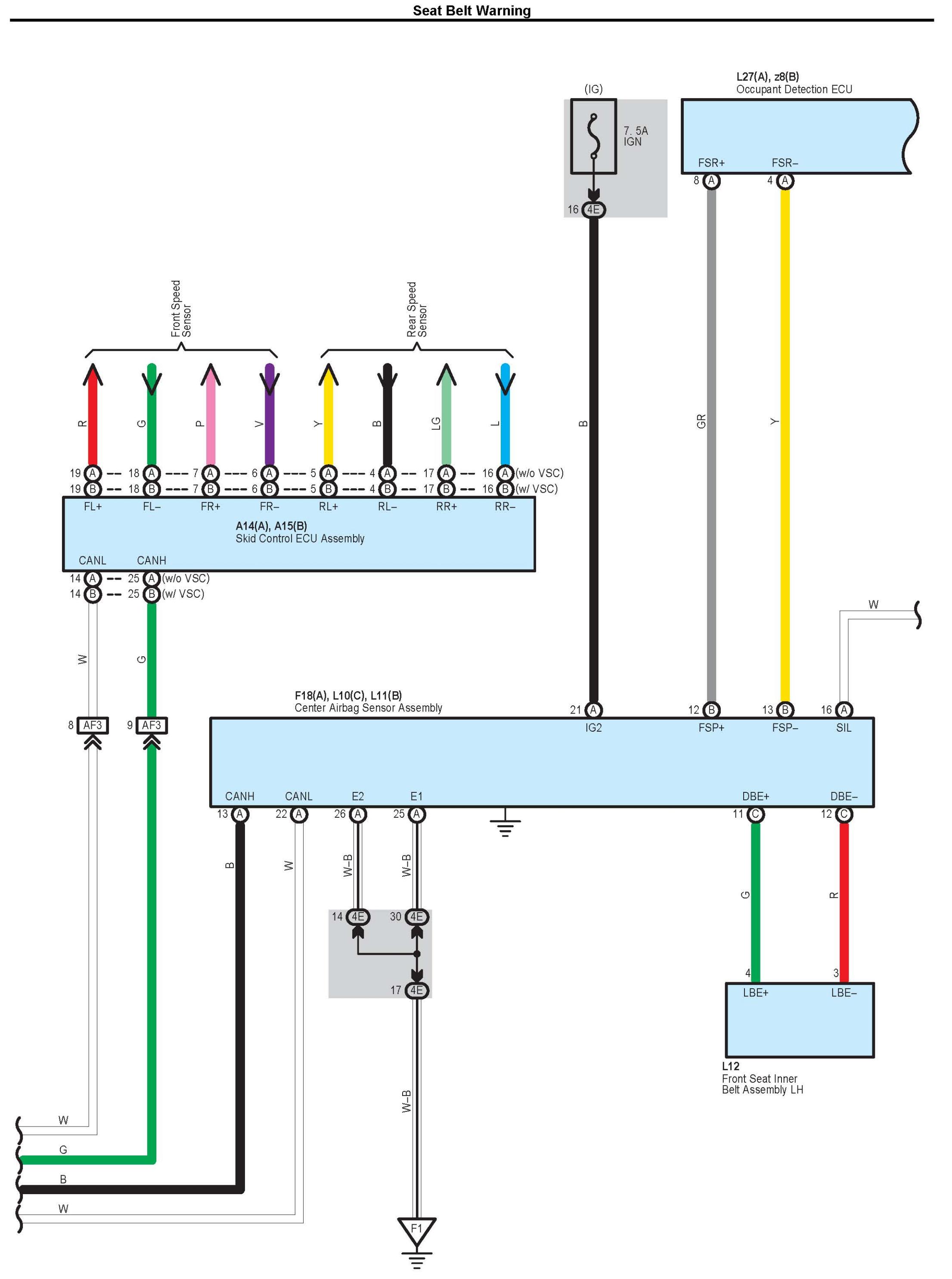

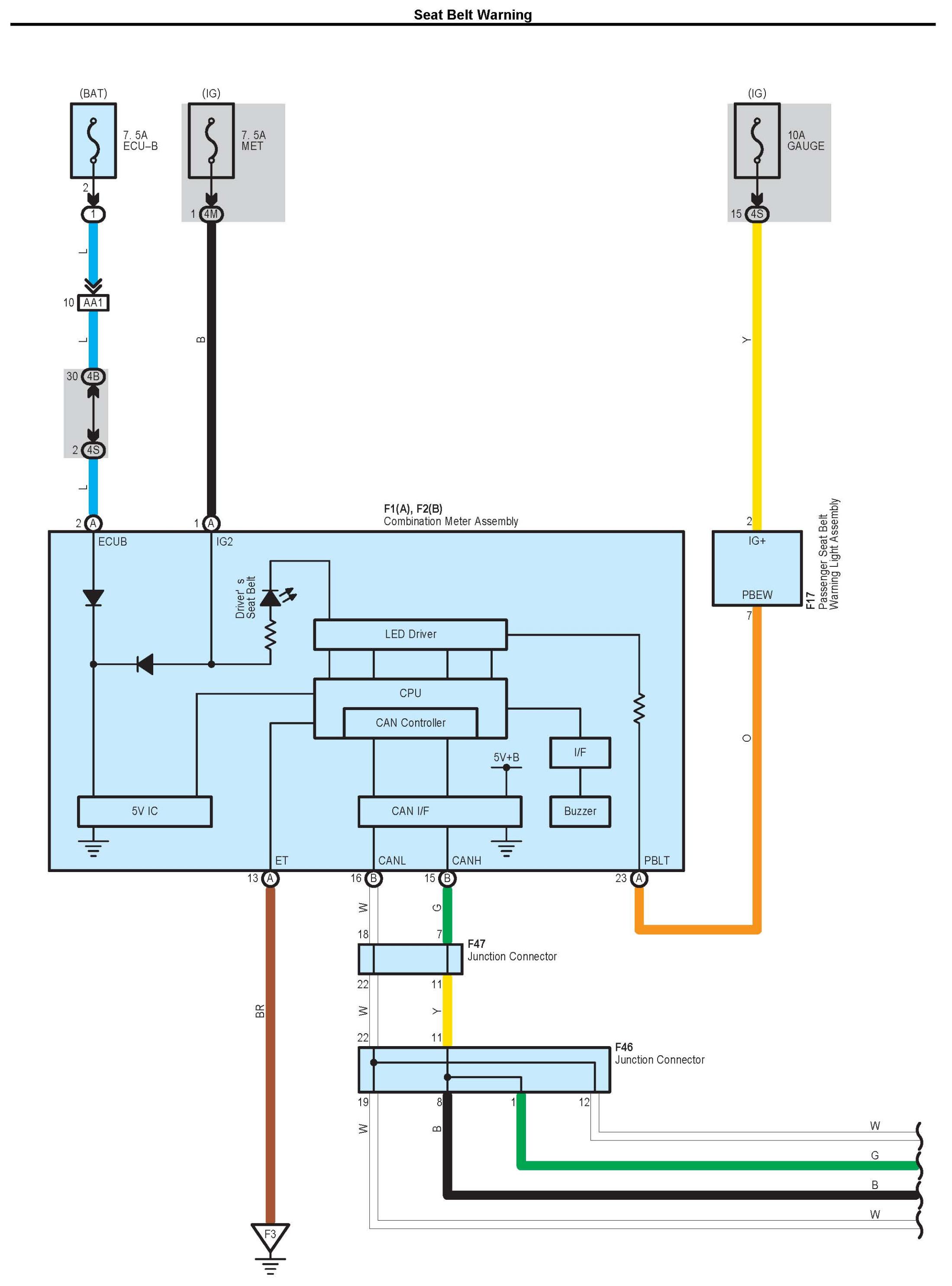

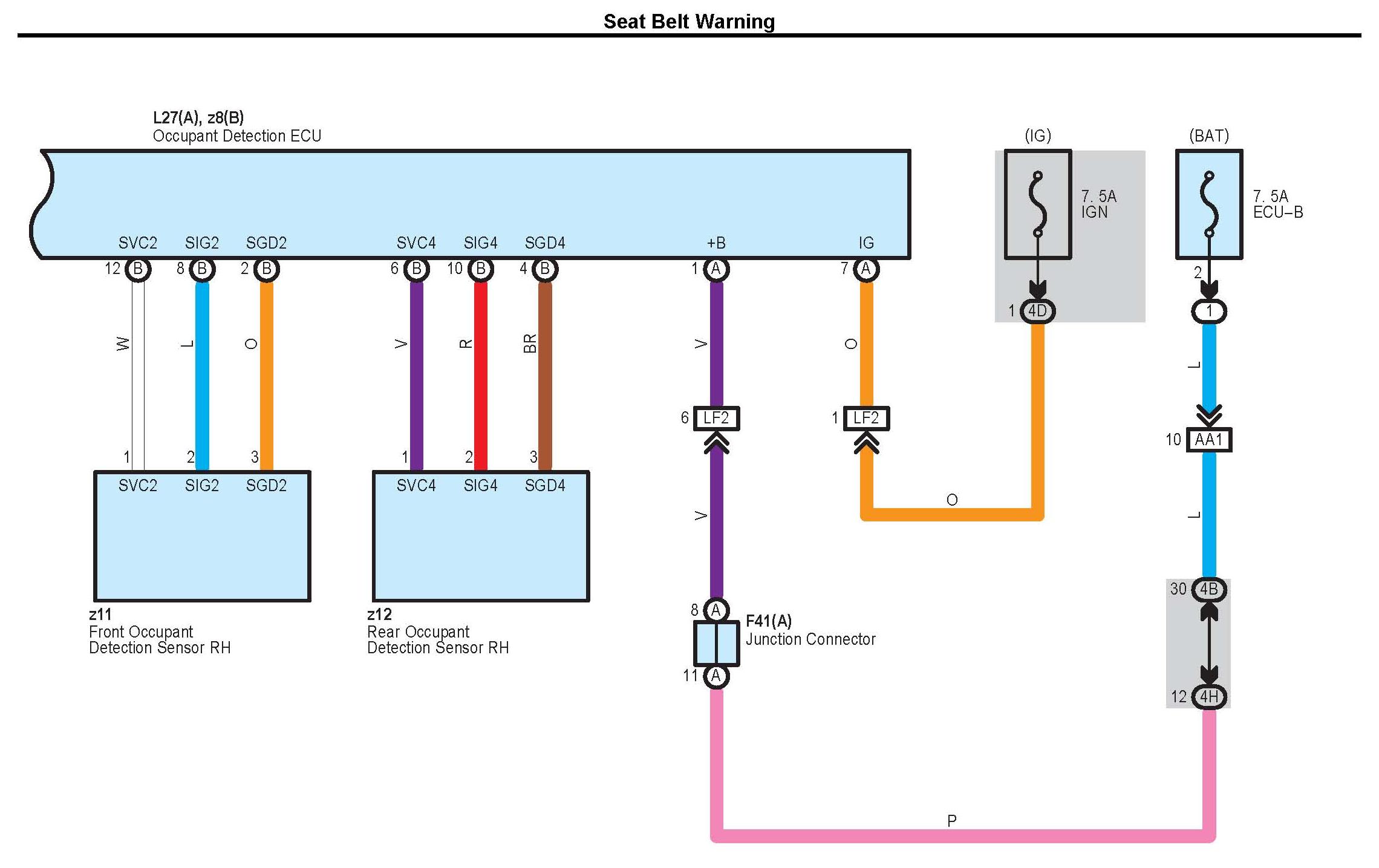

Seat Belt Warning Part 1:

Seat Belt Warning Part 2:

Seat Belt Warning Part 3:

Seat Belt Warning Part 4:

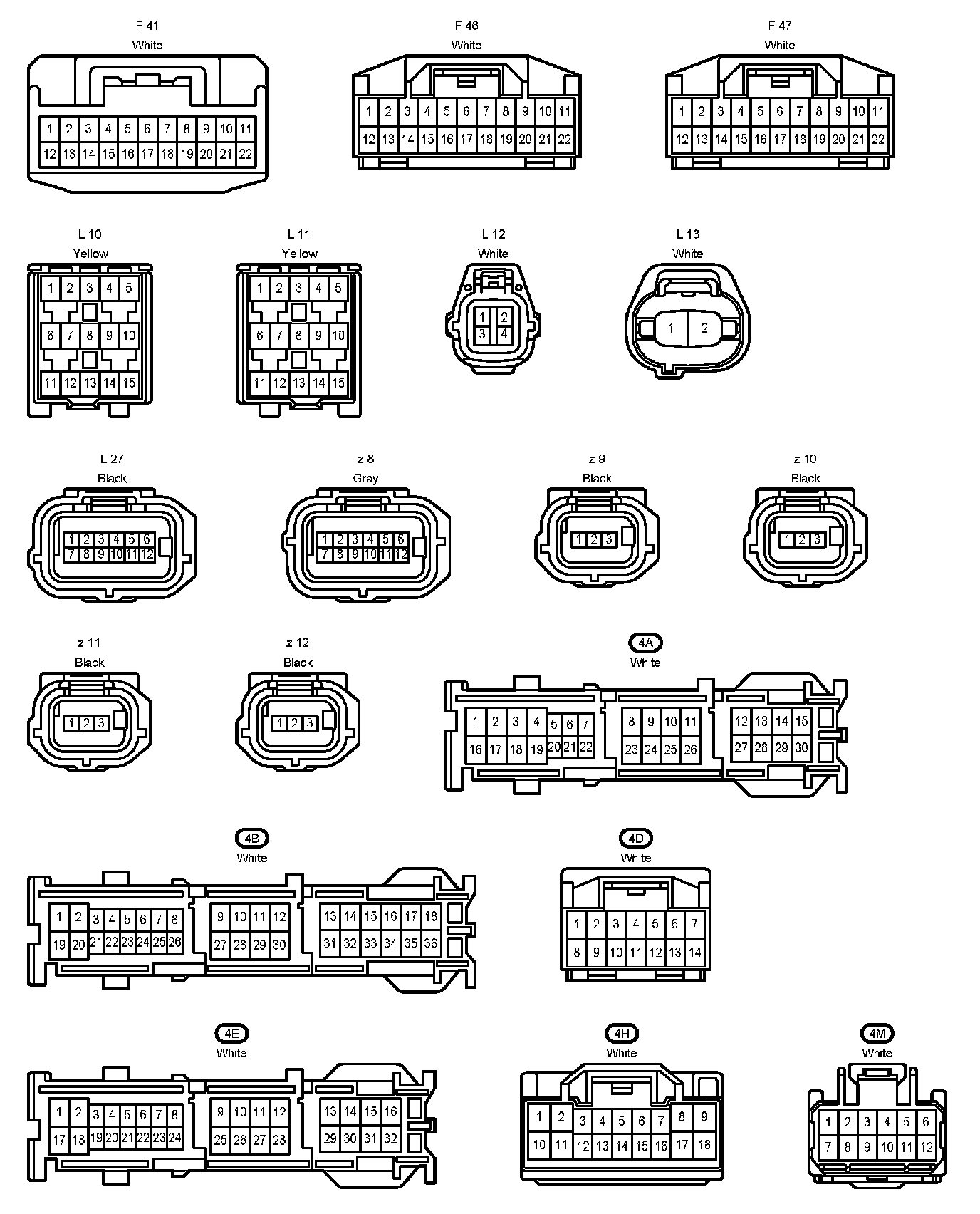

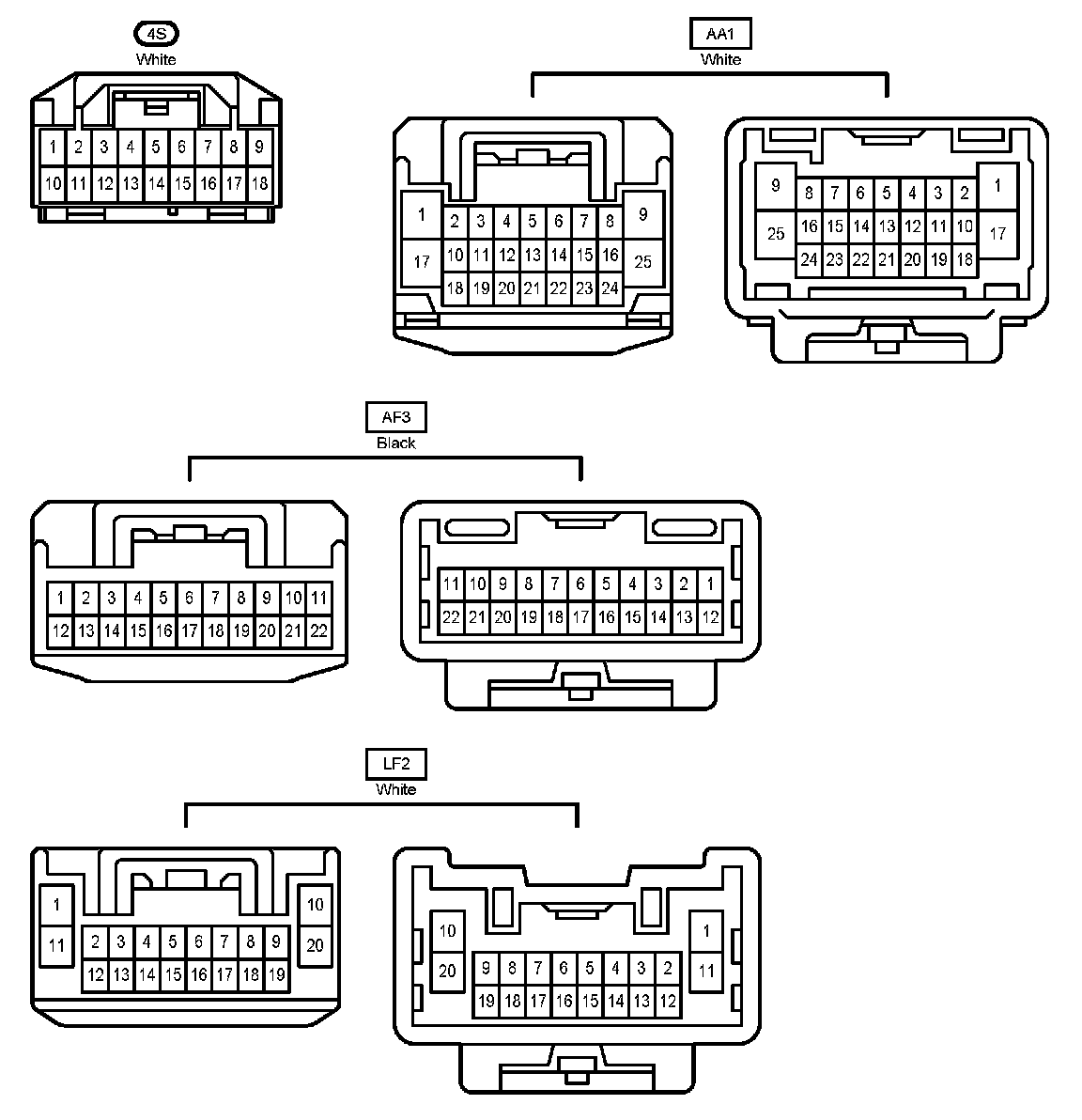

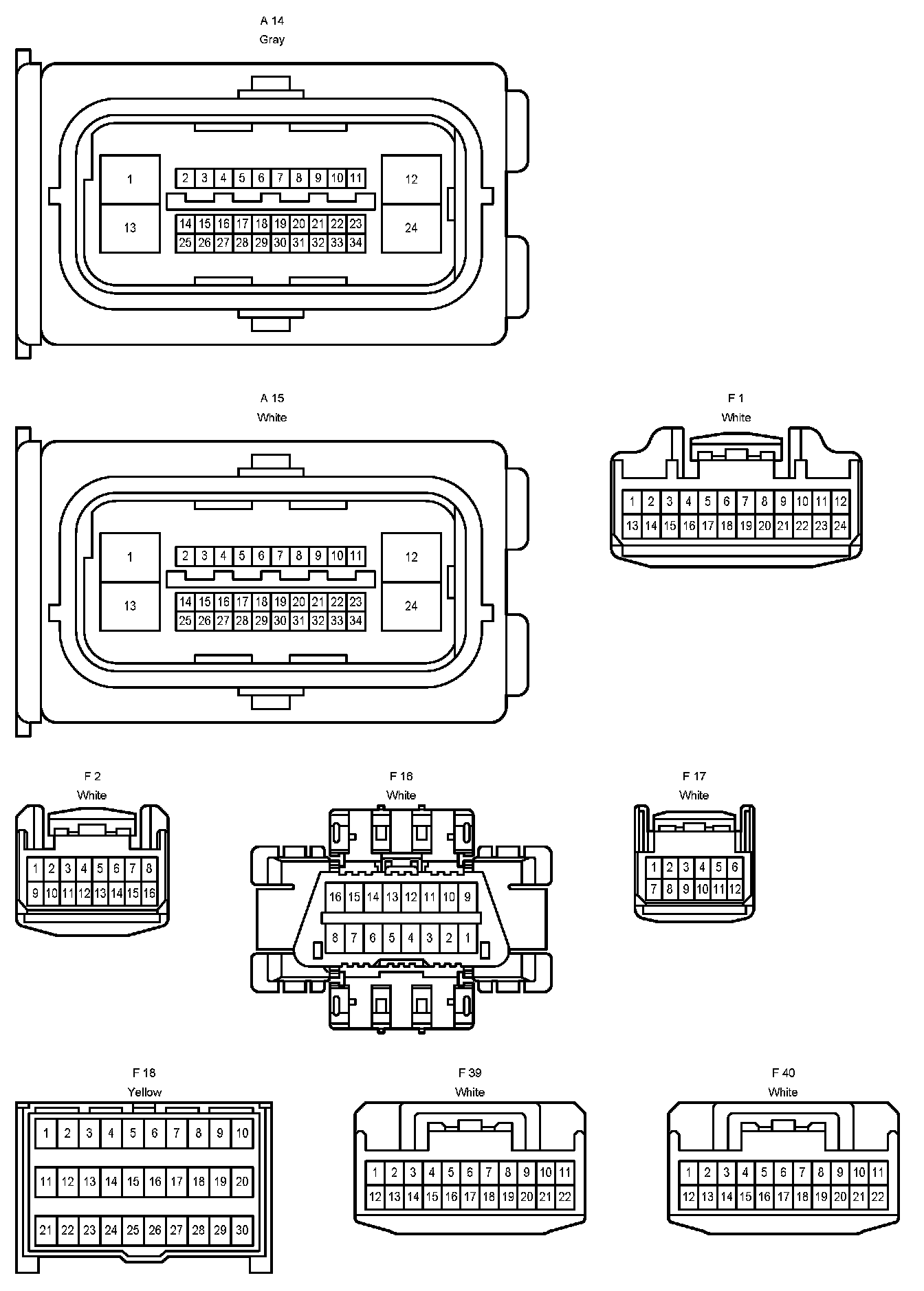

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
