Steering Control Module

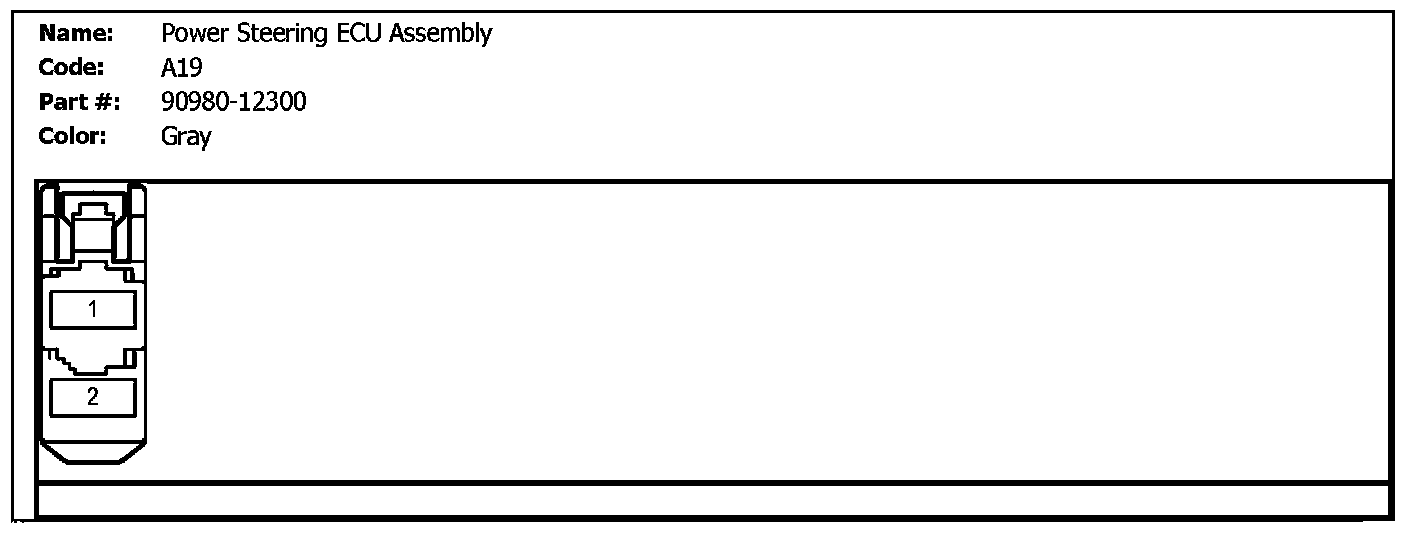

A19 (Power Steering ECU Assembly):

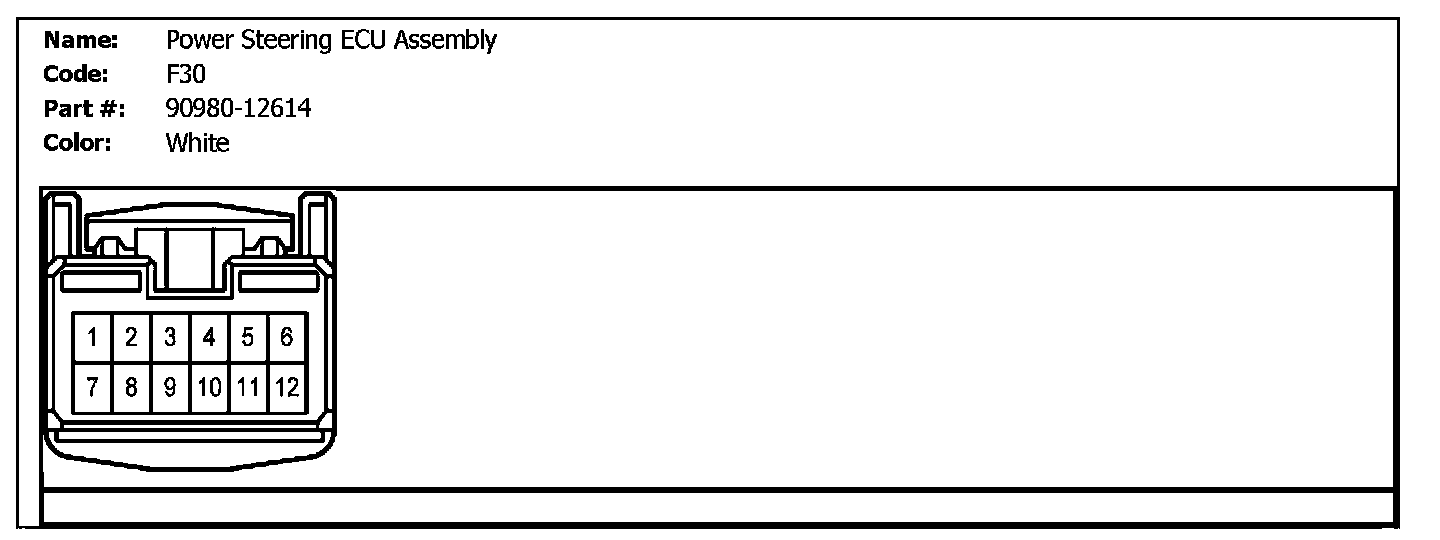

F30 (Power Steering ECU Assembly):

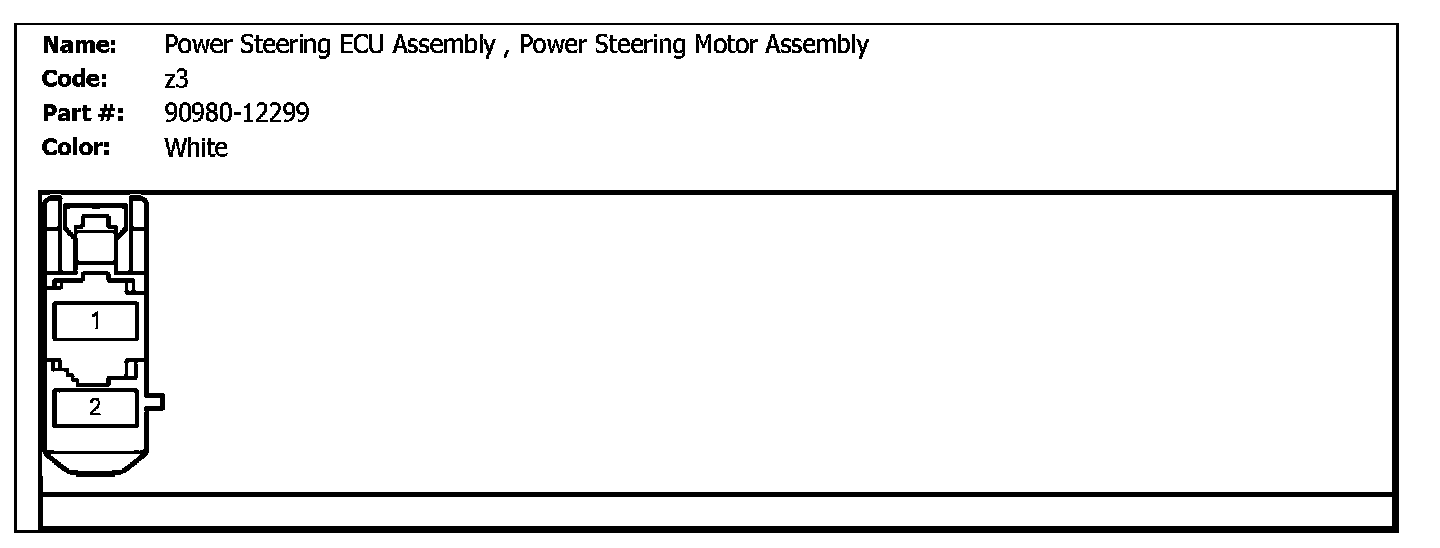

Z3 (Power Steering ECU Assembly, Power Steering Motor Assembly):



Z4 (Power Steering ECU Assembly, Power Steering Torque Sensor Assembly):
