TERMINALS OF ECM

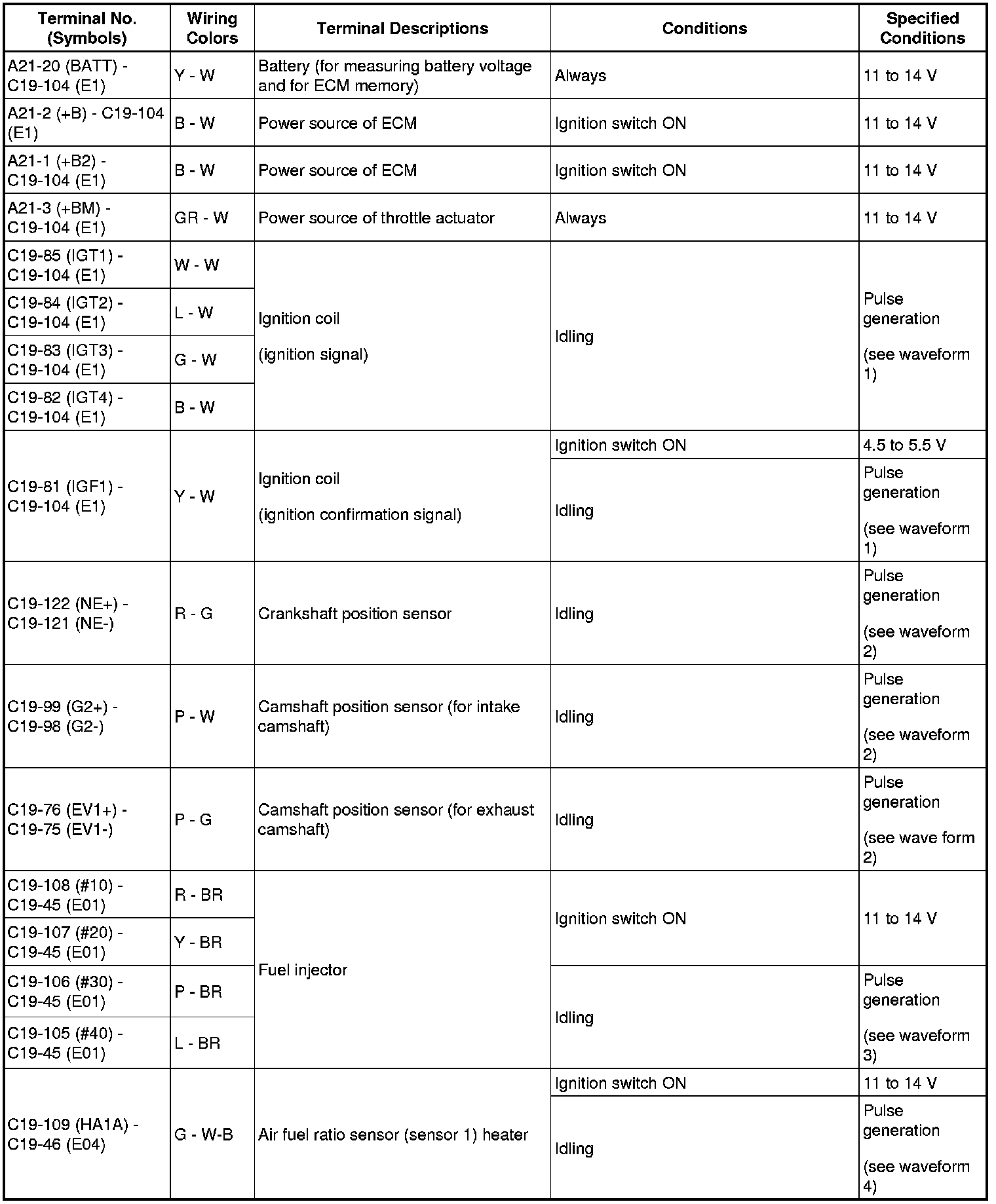

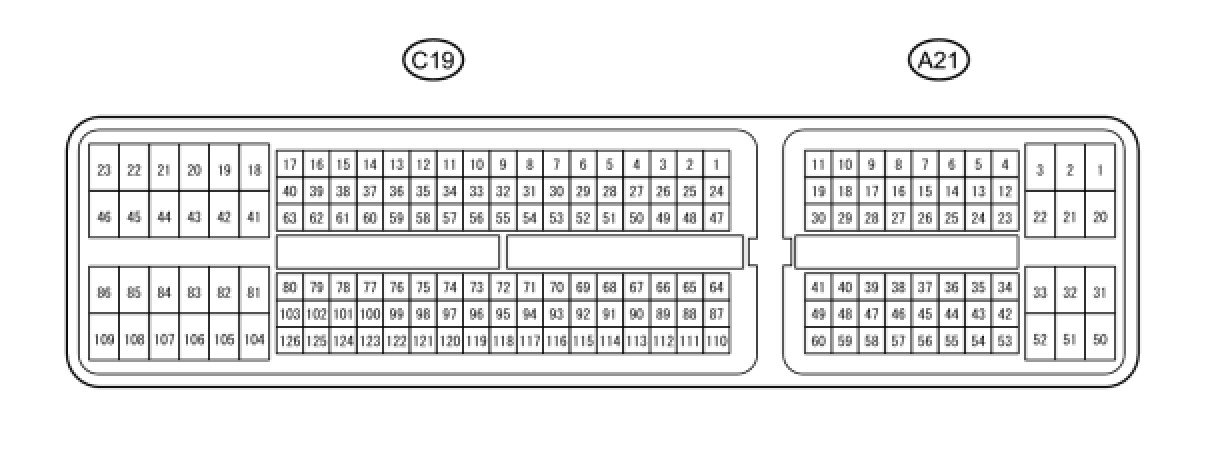

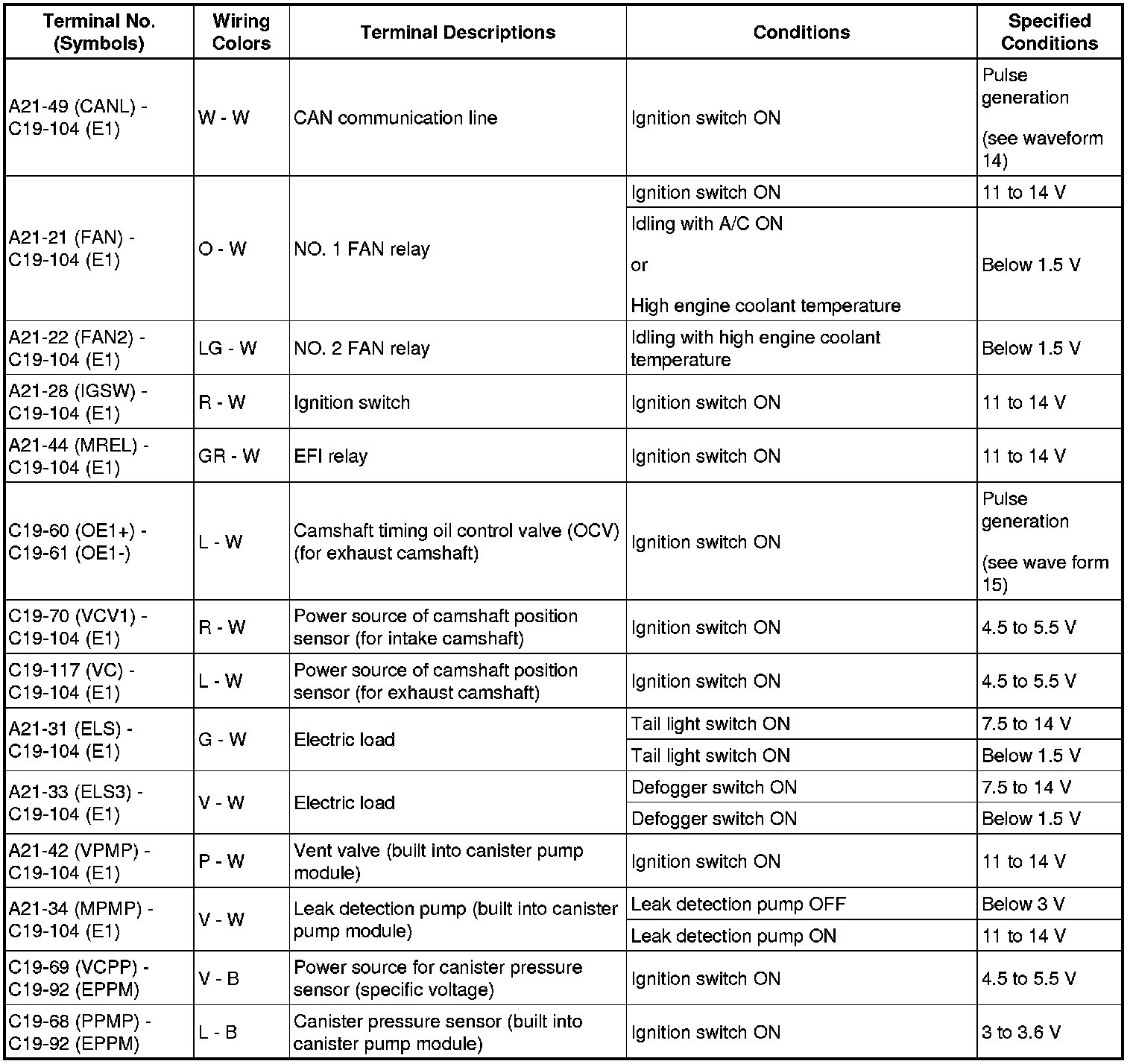

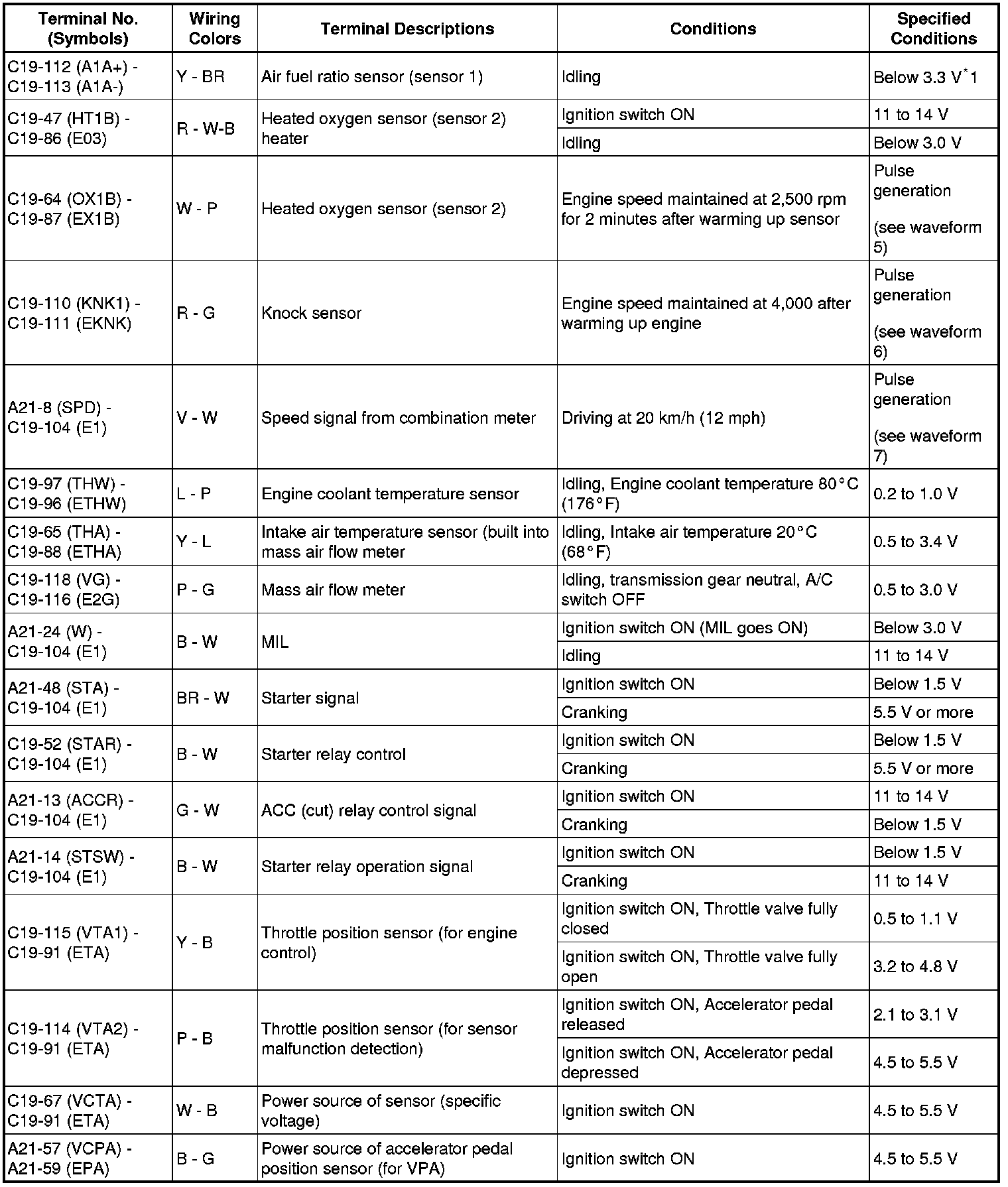

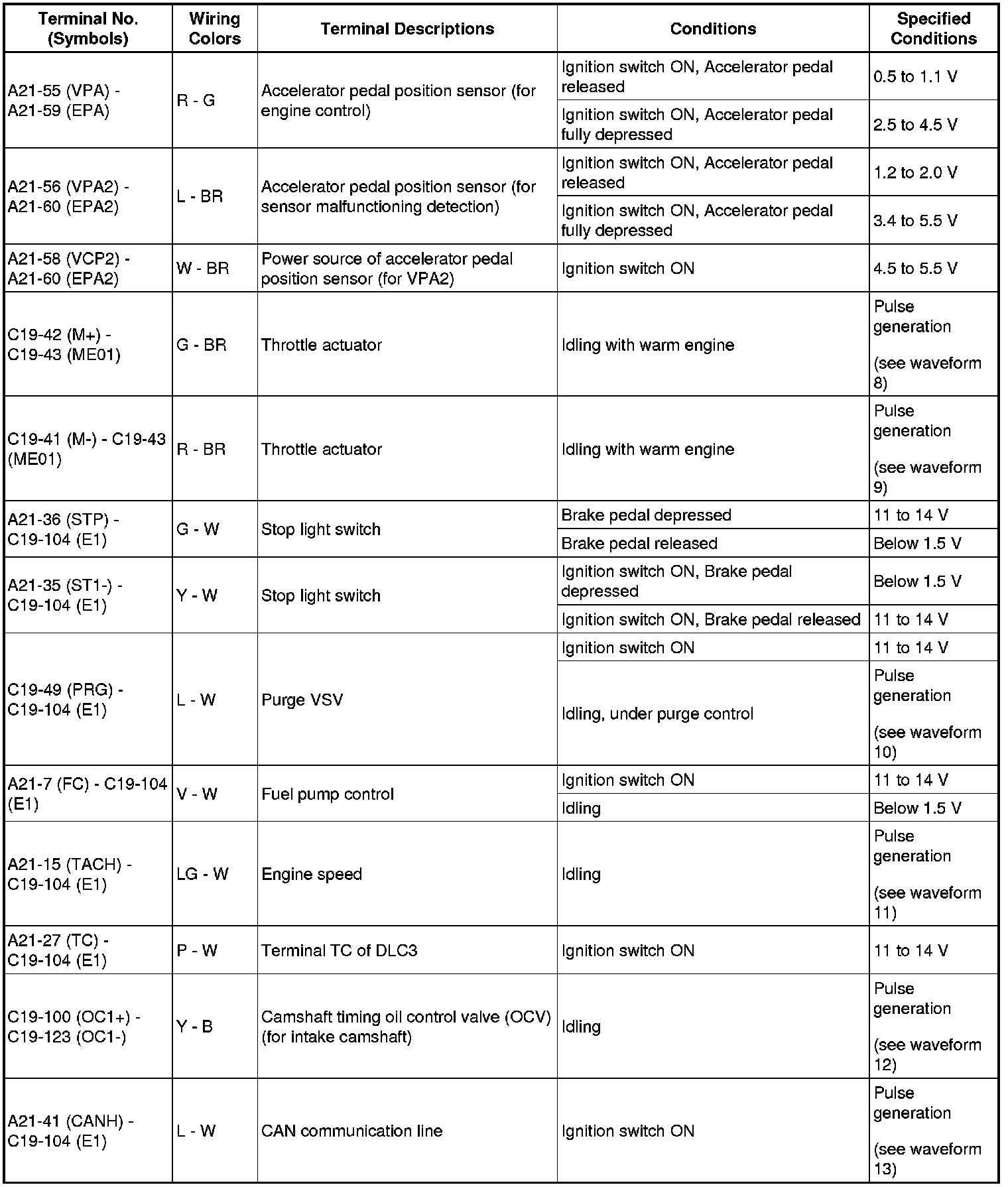

HINT: The standard normal voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of the terminals, and displayed in the "Specified Conditions" column. The illustration above can be used as a reference to identify the ECM terminal locations.
HINT: *1: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

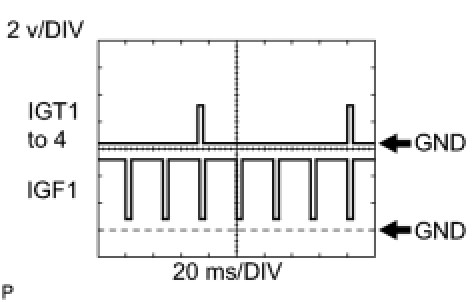

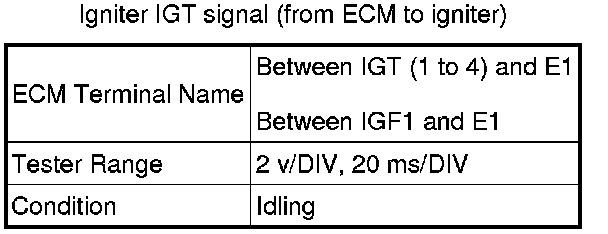

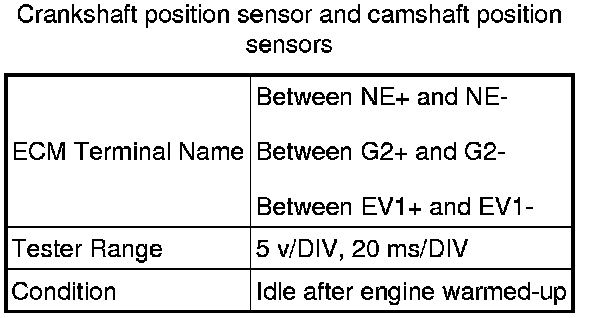

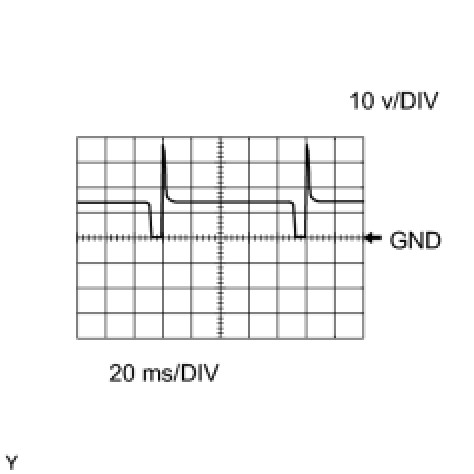

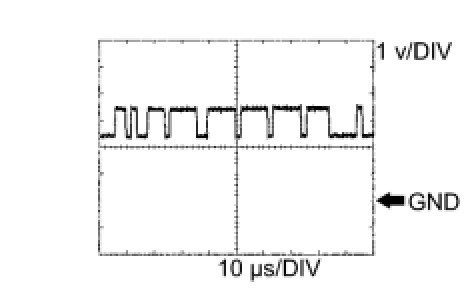

1. WAVEFORM 1
HINT: The wavelength becomes shorter as the engine rpm increases.

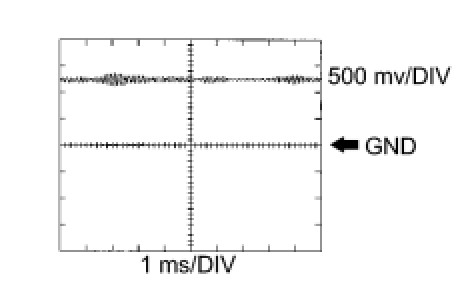

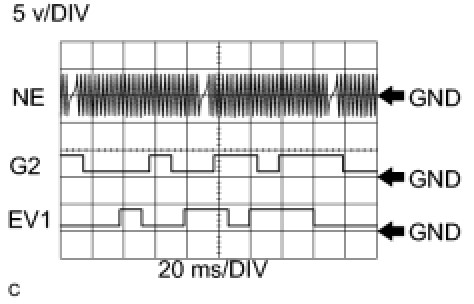

2. WAVEFORM 2
HINT: The wavelength becomes shorter as the engine rpm increases.

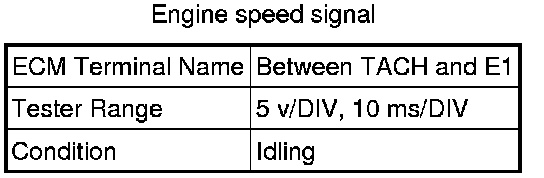

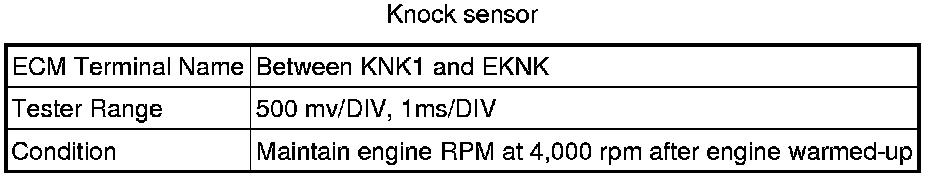

3. WAVEFORM 3
HINT: The wavelength becomes shorter as the engine rpm increases.

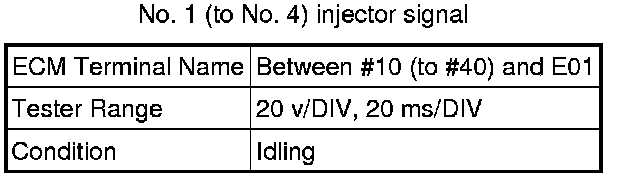

4. WAVEFORM 4
HINT: The wavelength varies in accordance with the engine operating condition.

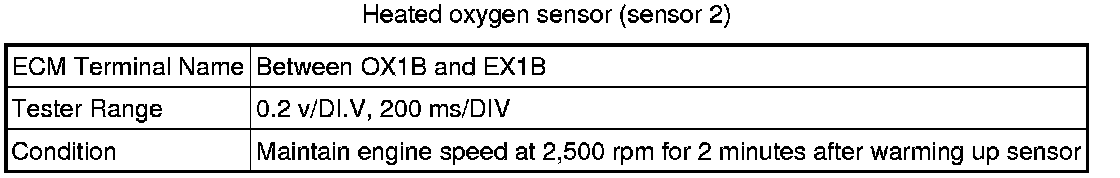

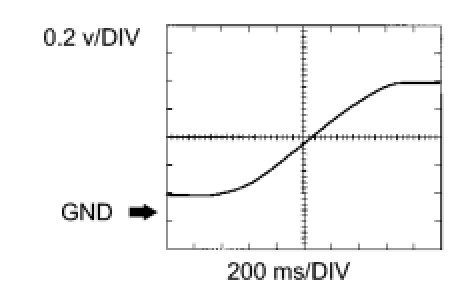

5. WAVEFORM 5

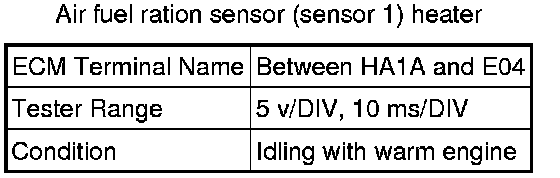

HINT: In the Data List, the items O2S B1 S2 show the values input to the ECM from the heated oxygen sensor.
6. WAVEFORM 6
- The wavelength becomes shorter as the engine rpm increases.
- The waveforms and amplitudes displayed differ slightly depending on the vehicle condition.

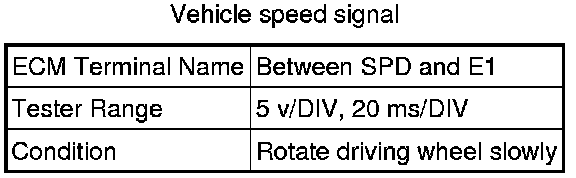

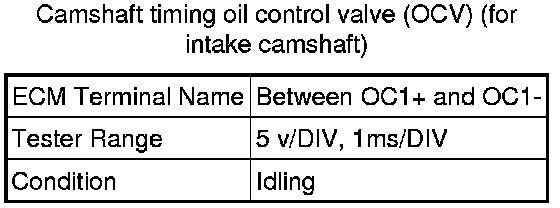

7. WAVEFORM 7
HINT: The wavelength becomes shorter as the vehicle speed increases.

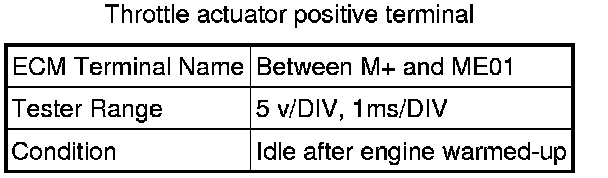

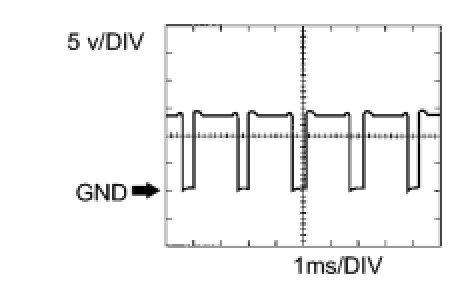

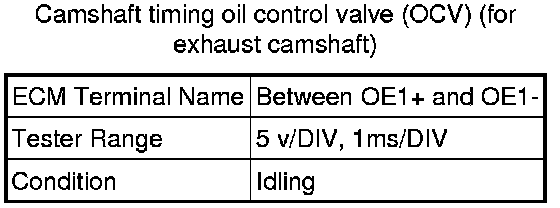

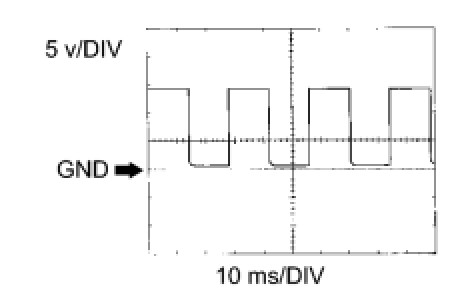

8. WAVEFORM 8

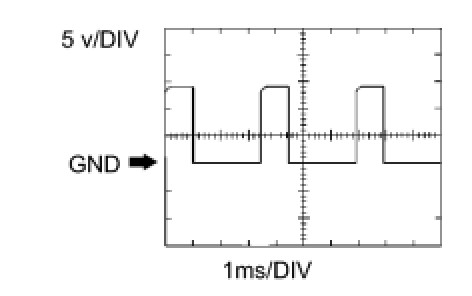

HINT: The duty ratio varies depending on the throttle actuator operation.

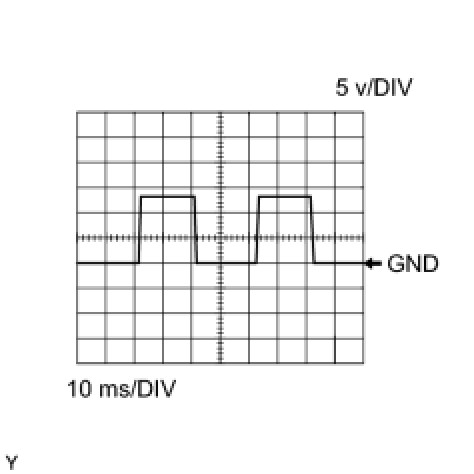

9. WAVEFORM 9
HINT: The duty ratio varies depending on the throttle actuator operation.

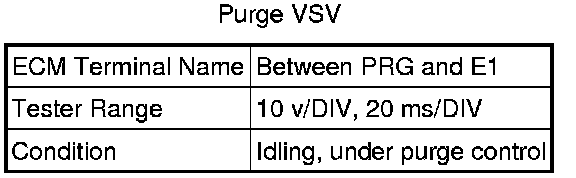

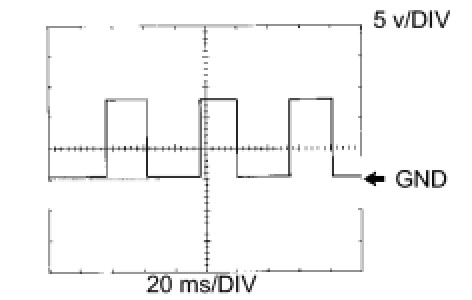

10. WAVEFORM 10
HINT: If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.
11. WAVEFORM 11
HINT: The wavelength becomes shorter as the engine rpm increases.
12. WAVEFORM 12
13. WAVEFORM 13

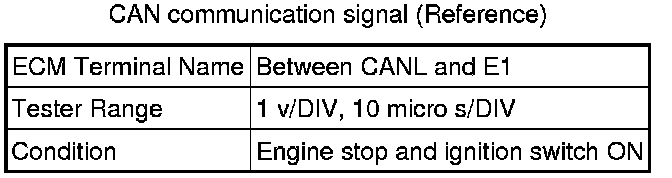

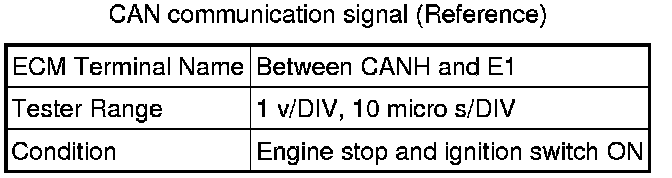

HINT: The waveform varies depending on the CAN communication signal.

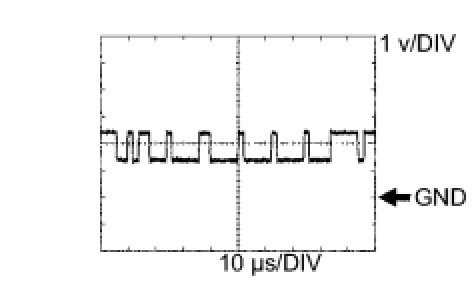

14. WAVEFORM 14
HINT: The waveform varies depending on the CAN communication signal.
15. WAVEFORM 15
