xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Engine Control System - SFI System
Engine Control System - SFI System

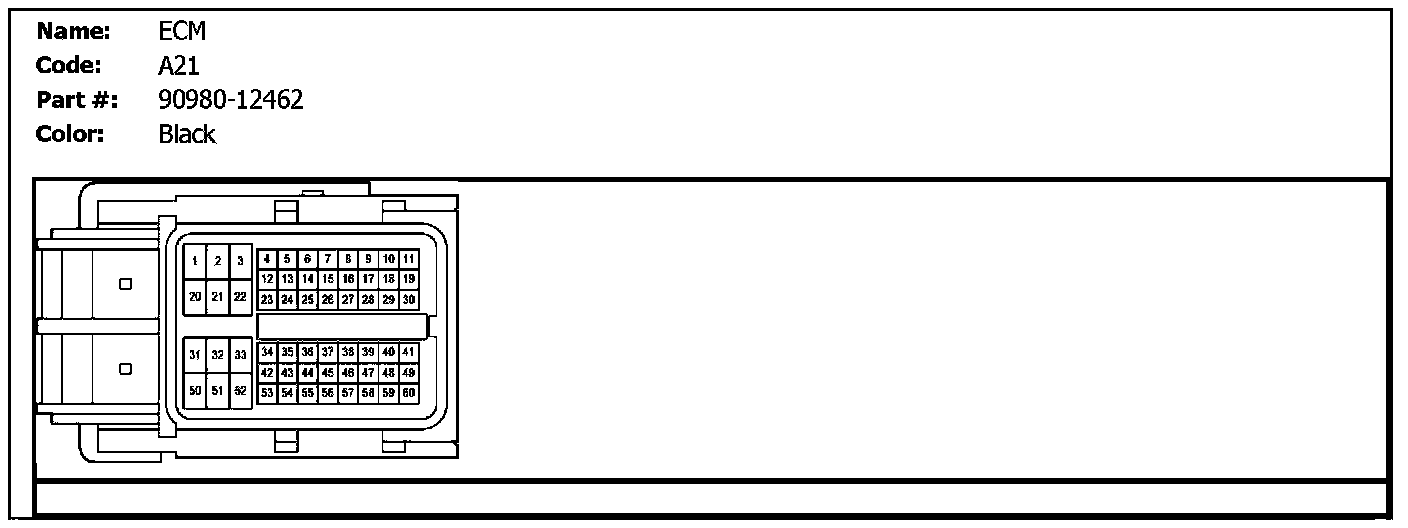

A21 (ECM):

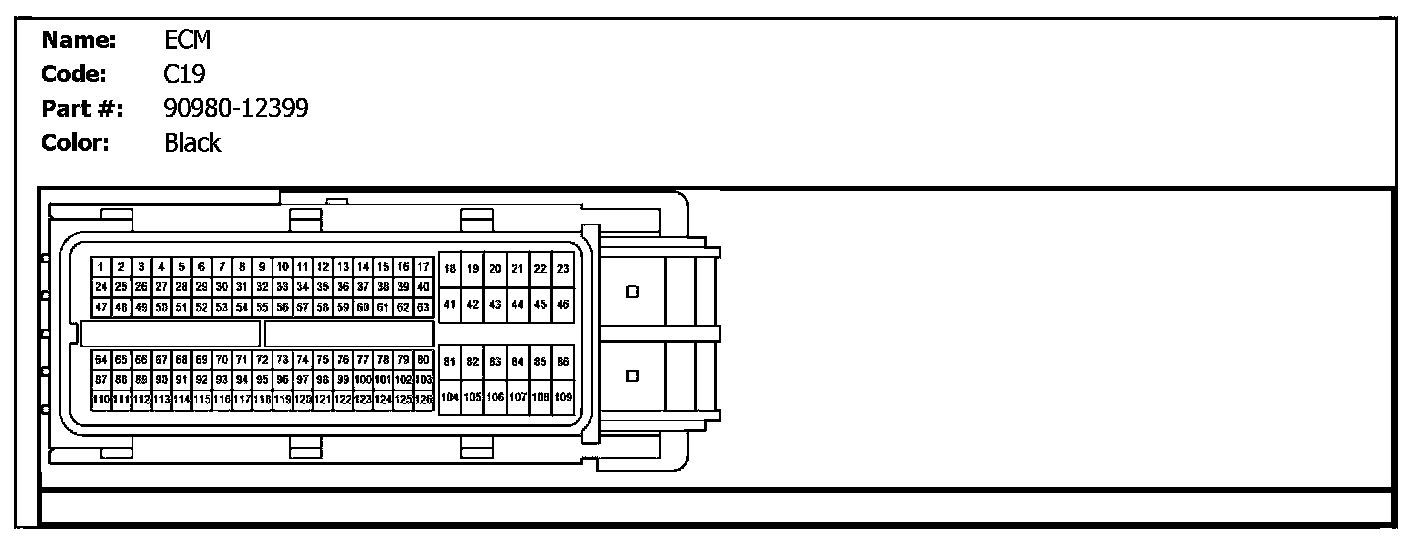

C19 (ECM):
