F10 (Radio Receiver Assembly)
F10 (Radio Receiver Assembly)

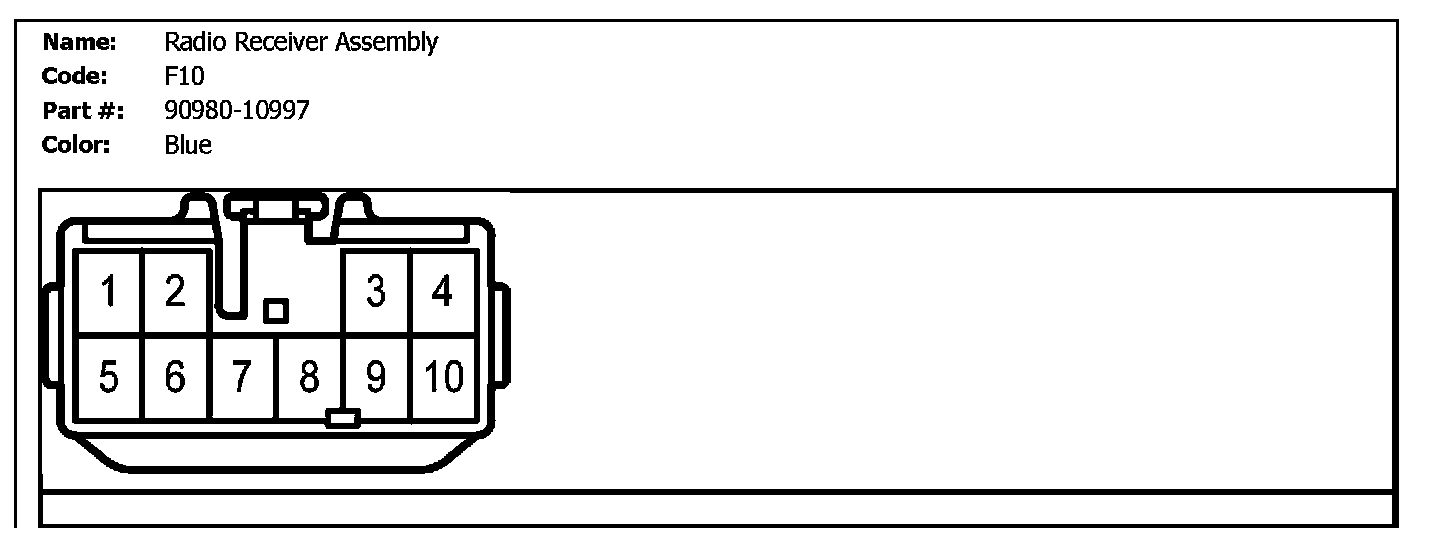

F10 (Radio Receiver Assembly):

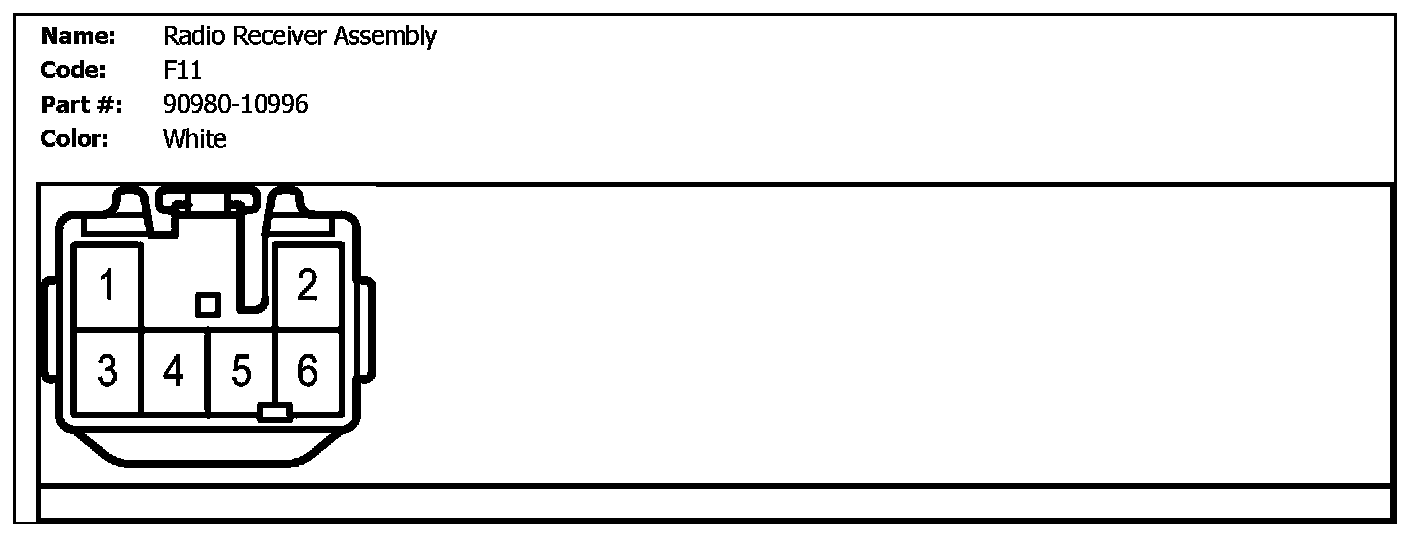

F11 (Radio Receiver Assembly):

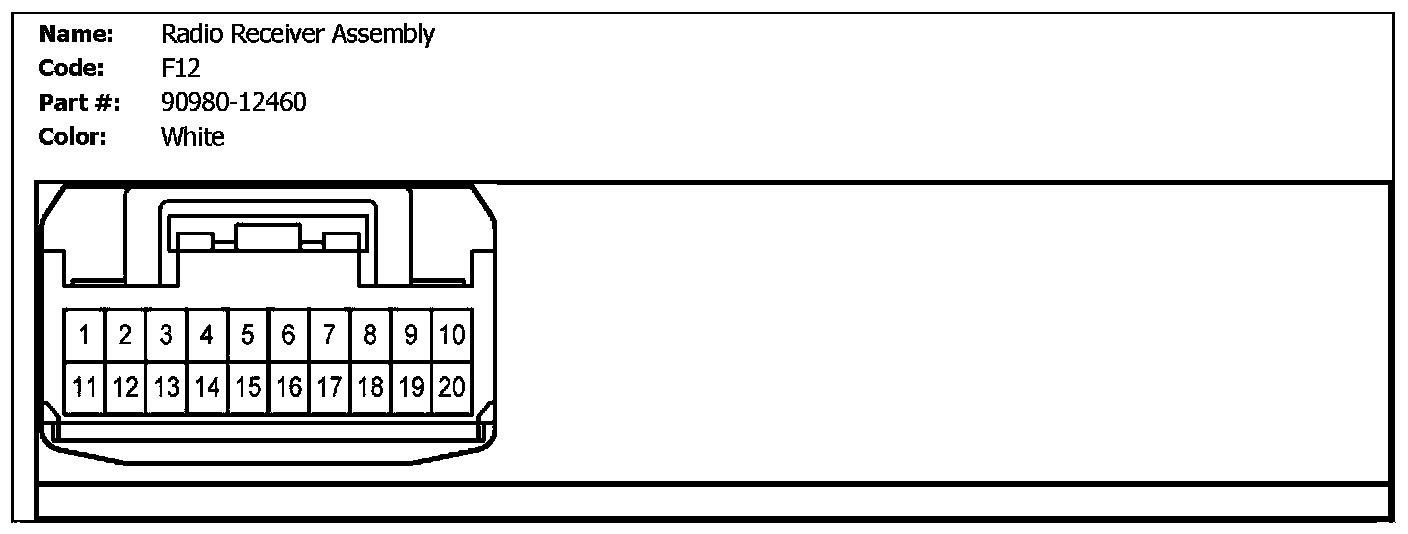

F12 (Radio Receiver Assembly):

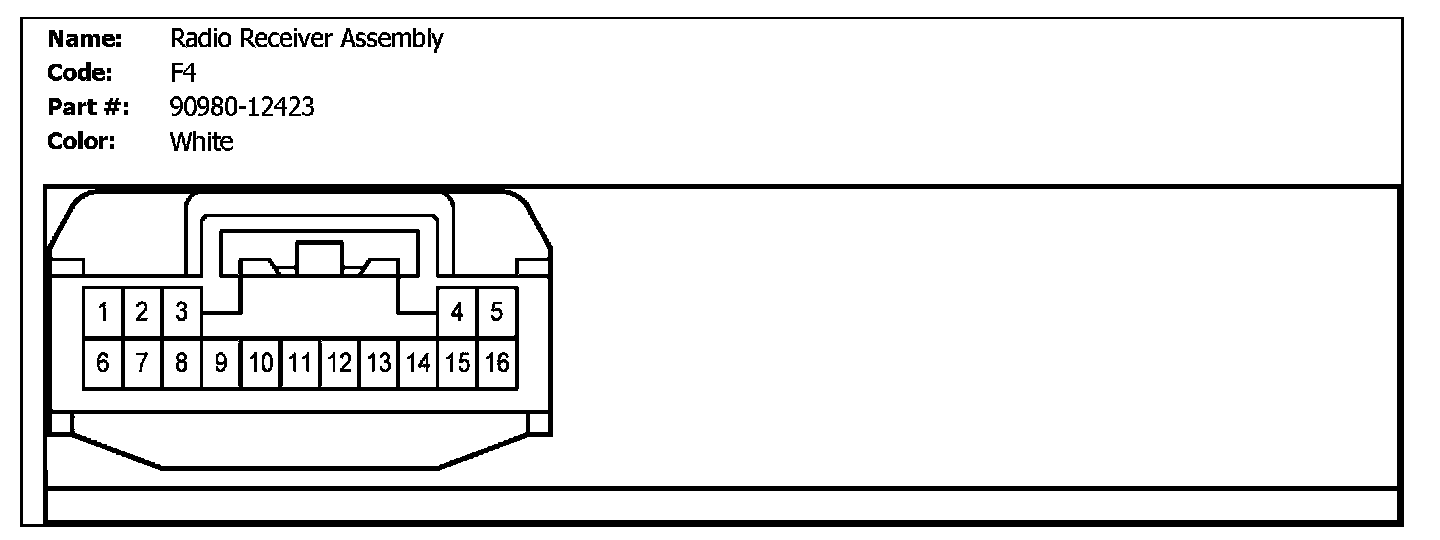

F4 (Radio Receiver Assembly):
