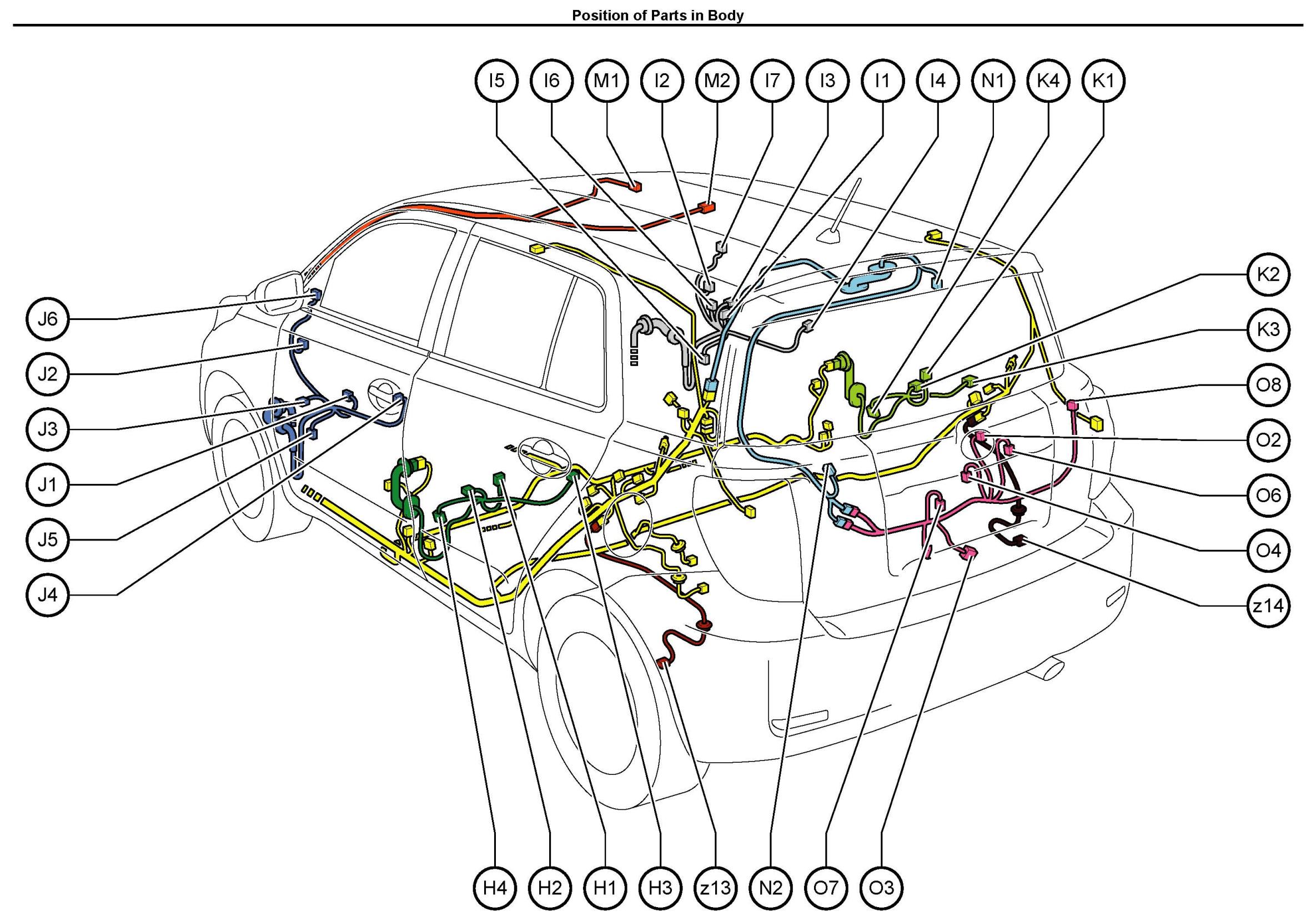

Position of Parts In Body
Position of Parts In Body

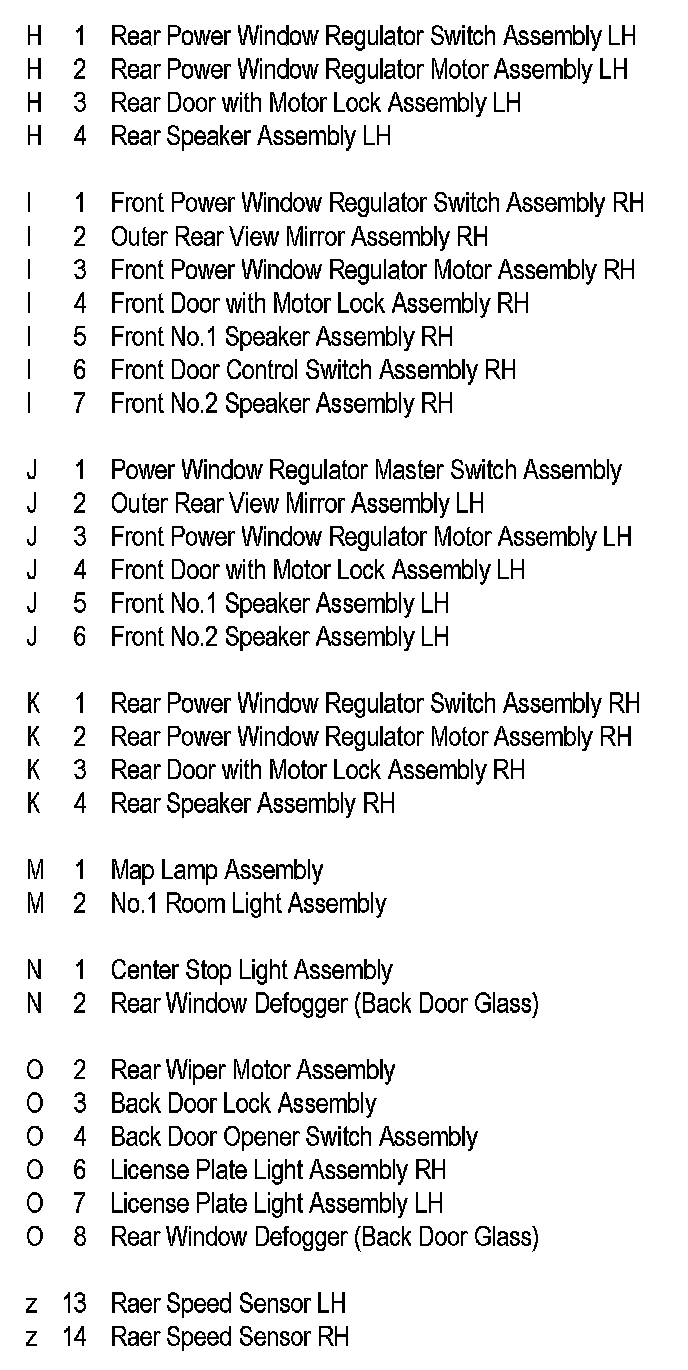

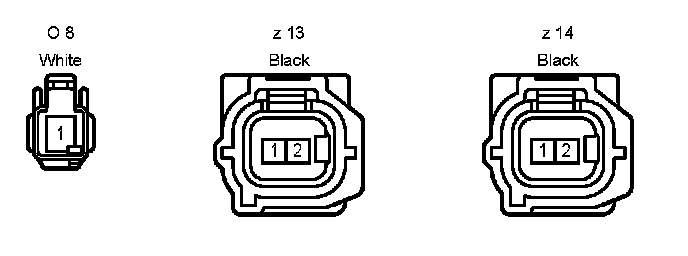

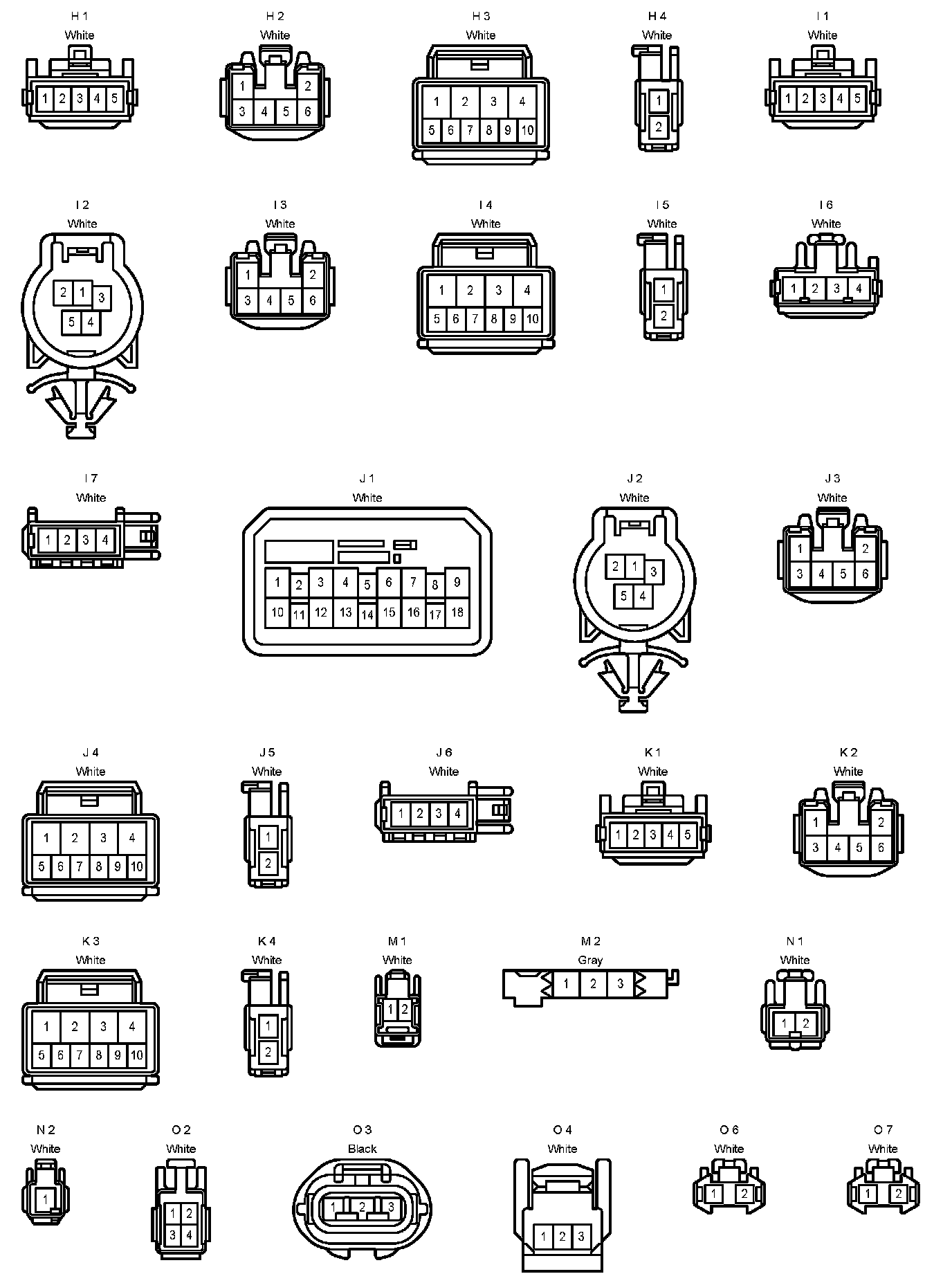

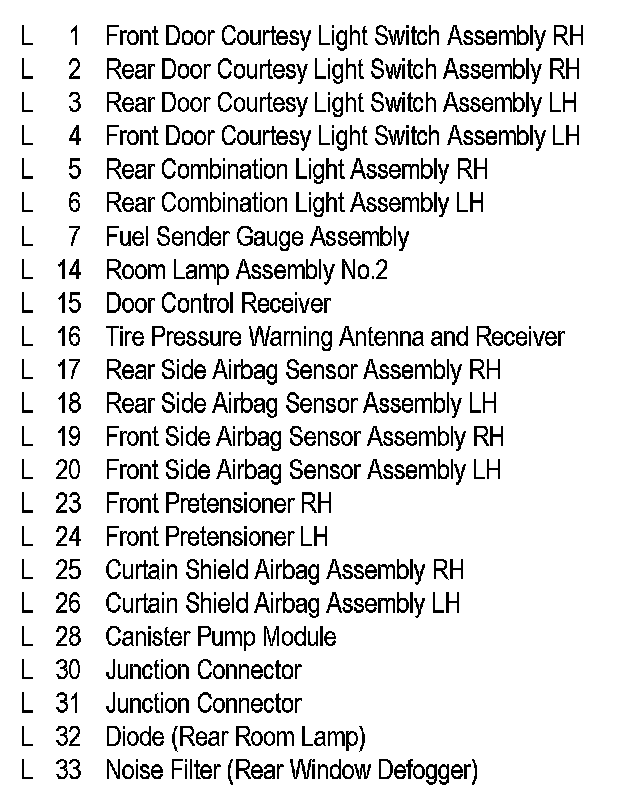

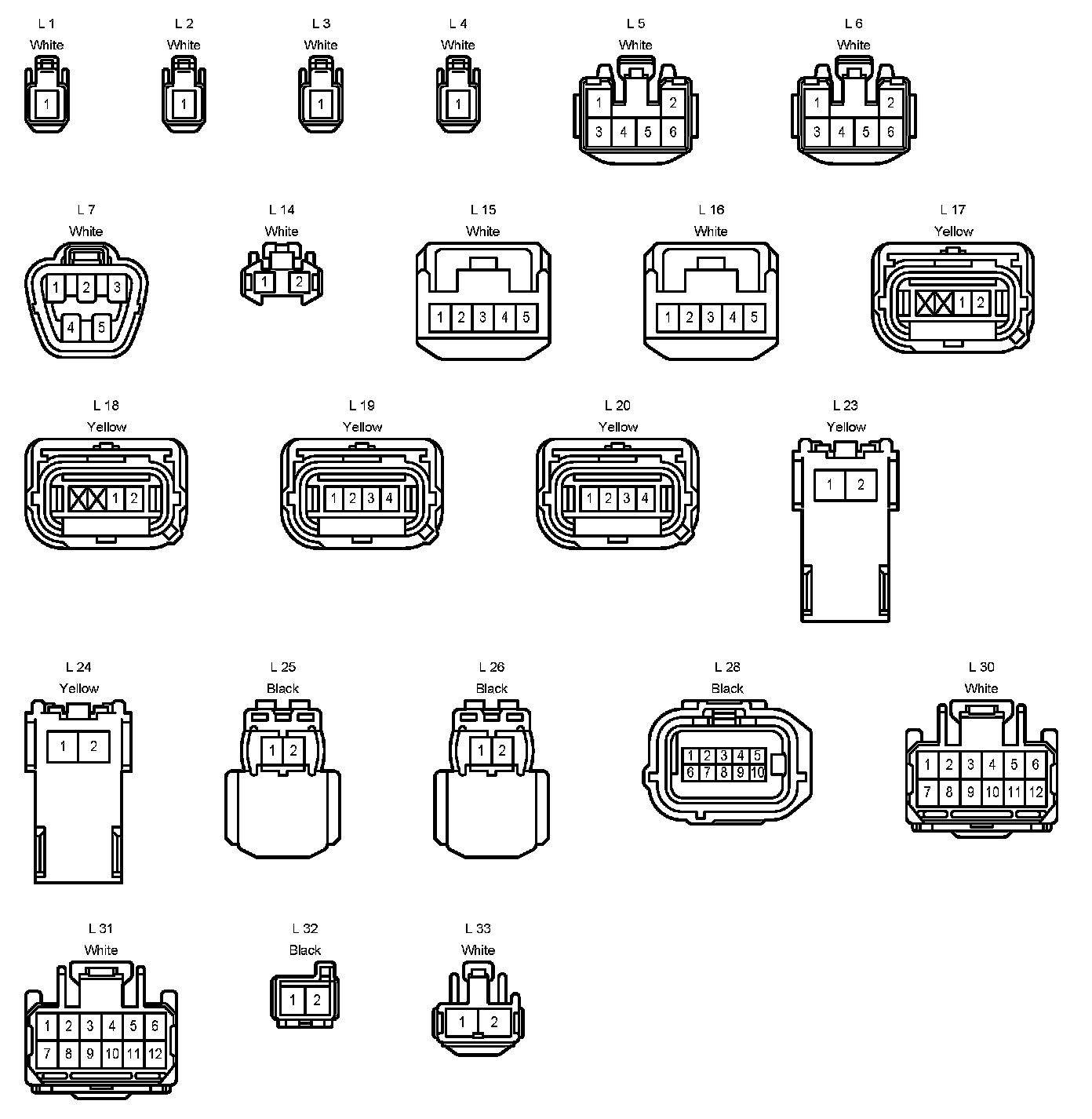

Position Of Parts In Body:
Position Of Parts In Body:
Position Of Parts In Body:
Position Of Parts In Body:
Position Of Parts In Body:
Position Of Parts In Body:
Position Of Parts In Body:
