Removal








BRAKE CONTROL: VSC OFF SWITCH: REMOVAL

REMOVAL

1. REMOVE REAR CONSOLE BOX COVER Removal

2. REMOVE VSC OFF SWITCH

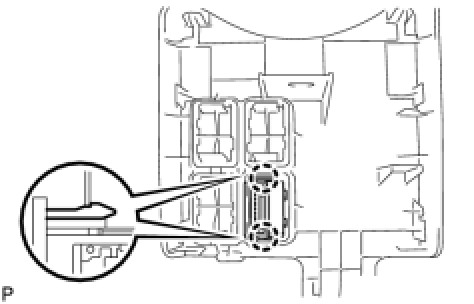

(a) Disengage the 2 claws and remove the VSC off switch.
