Removal

BRAKE: REAR BRAKE FLEXIBLE HOSE: REMOVAL

REMOVAL

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
NOTE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.

3. REMOVE REAR BRAKE FLEXIBLE HOSE

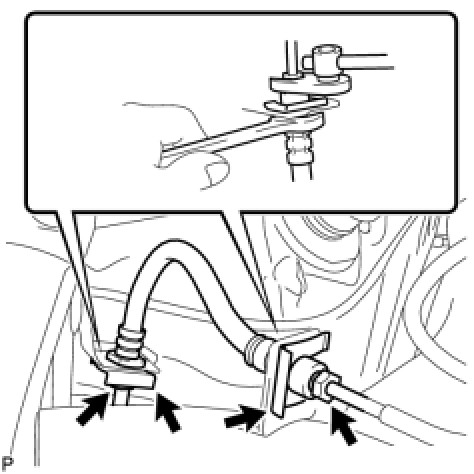

(a) Using a union nut wrench, separate the brake tubes while holding the flexible hose with a wrench.
NOTICE:
- Do not bend or damage the brake tube.
- Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting position.

(b) Remove the 2 clips and flexible hose from the axle beam.
