BRAKE: FRONT BRAKE FLEXIBLE HOSE: INSTALLATION

INSTALLATION

1. INSTALL FRONT BRAKE FLEXIBLE HOSE






(a) Install the flexible hose with the union bolt and a new gasket.
Torque: 30 Nm (310 kgf-cm, 22 ft-lbf)
HINT: Install the flexible hose lock securely into the lock hole in the disc brake cylinder.

(b) Install the flexible hose and speed sensor with the bolt.
Torque: 29 Nm (300 kgf-cm, 22 ft-lbf)
NOTE: Install the flexible hose and speed sensor without twisting them.

(c) Install the flexible hose with a new clip.
(d) Using a union nut wrench, install the brake tube to the flexible hose while holding the flexible hose with a wrench.
without union nut wrench - Torque: 15 Nm (155 kgf-cm, 11 ft-lbf)
with union nut wrench - Torque: 14 Nm (144 kgf-cm, 10 ft-lbf)
NOTICE:

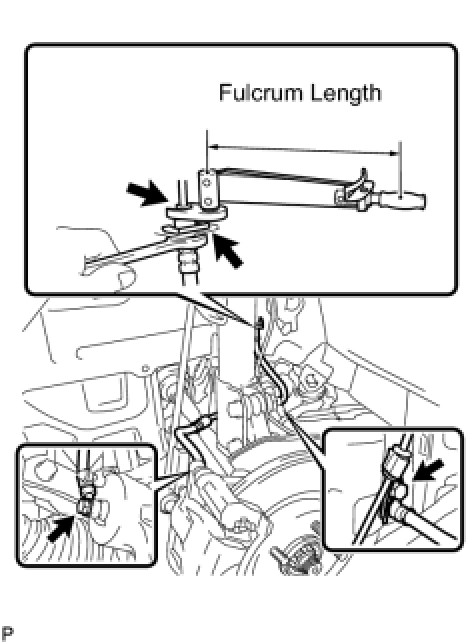

- This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.8 in.) and a union nut wrench with a fulcrum length of 22 mm (0.866 in.) .
- This torque value is effective when the union nut wrench is parallel to a torque wrench.

2. FILL RESERVOIR WITH BRAKE FLUID Replacement

3. BLEED MASTER CYLINDER Replacement

4. BLEED BRAKE LINE Replacement

5. BLEED BRAKE ACTUATOR (w/ VSC) Replacement

6. CHECK FLUID LEVEL IN RESERVOIR Replacement

7. INSPECT FOR BRAKE FLUID LEAK
8. INSTALL FRONT WHEEL
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
