Slip Indicator Light Does Not Come ON

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: Slip Indicator Light does not Come ON

Slip Indicator Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.
Pressing the VSC OFF switch turns off traction control and pressing and holding this switch turns off traction and VSC controls. If traction control turns OFF, the SLIP indicator light will come on.
The SLIP indicator light blinks during VSC and/or TRAC operation.
When the system fails, the SLIP indicator light comes on to warn the driver Diagnosis System.

WIRING DIAGRAM






INSPECTION PROCEDURE
NOTE: When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if the CAN communication system DTC is output .

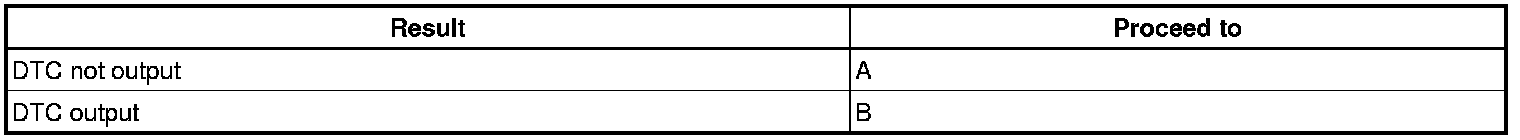

Result:






B -- INSPECT CAN COMMUNICATION SYSTEM
A -- Continue to next step.
2. INSPECT SKID CONTROL ECU (CSW TERMINAL)





(a) Disconnect the skid control ECU connector.

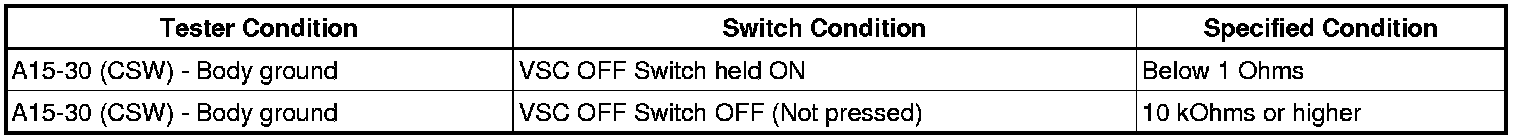

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- INSPECT VSC OFF SWITCH
OK -- Continue to next step.
3. INSPECT COMBINATION METER ASSEMBLY
(a) Reconnect the skid control ECU connector.
(b) Connect a Techstream to the DLC3.
(c) Perform Active Test of the combination meter using the Techstream Meter / Gauge System.
OK:
The SLIP indicator light turns ON or OFF in accordance with the Techstream.
NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- REPLACE BRAKE ACTUATOR ASSEMBLY
4. INSPECT VSC OFF SWITCH

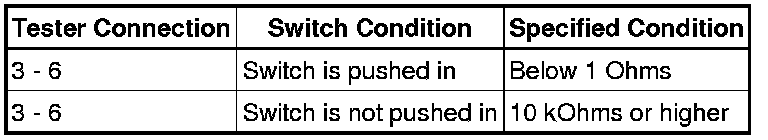

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE VSC OFF SWITCH
OK -- Continue to next step.
5. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - VSC OFF SWITCH)

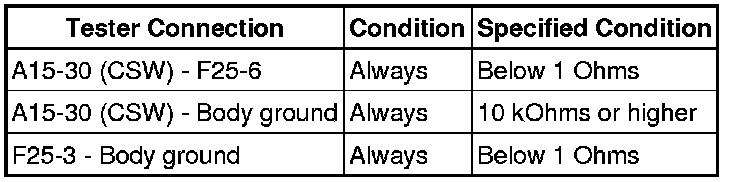

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION)
