Problem Symptoms Table

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

Use the table below to help determine the cause of a problem. The likely causes of the problem are indicated in descending order. Check each suspected area in order. Repair or replace faulty parts or perform adjustments as necessary.
NOTE: When replacing the brake actuator assembly, sensor, etc., turn the ignition switch to OFF.
HINT:
- Inspect the fuse and relay before investigating the suspected areas as shown in the table below.
- Inspect each suspected area in order for the corresponding symptom.

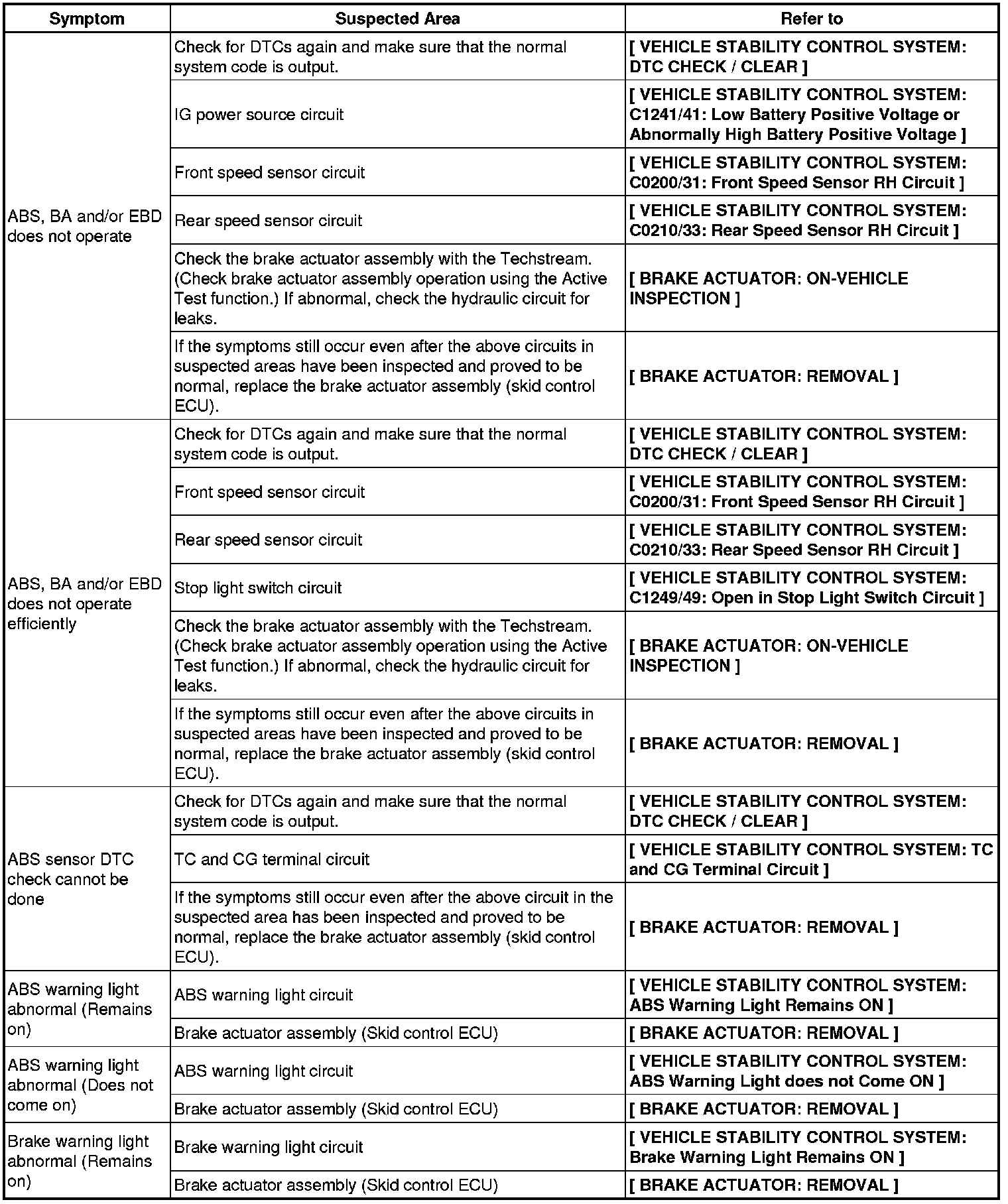

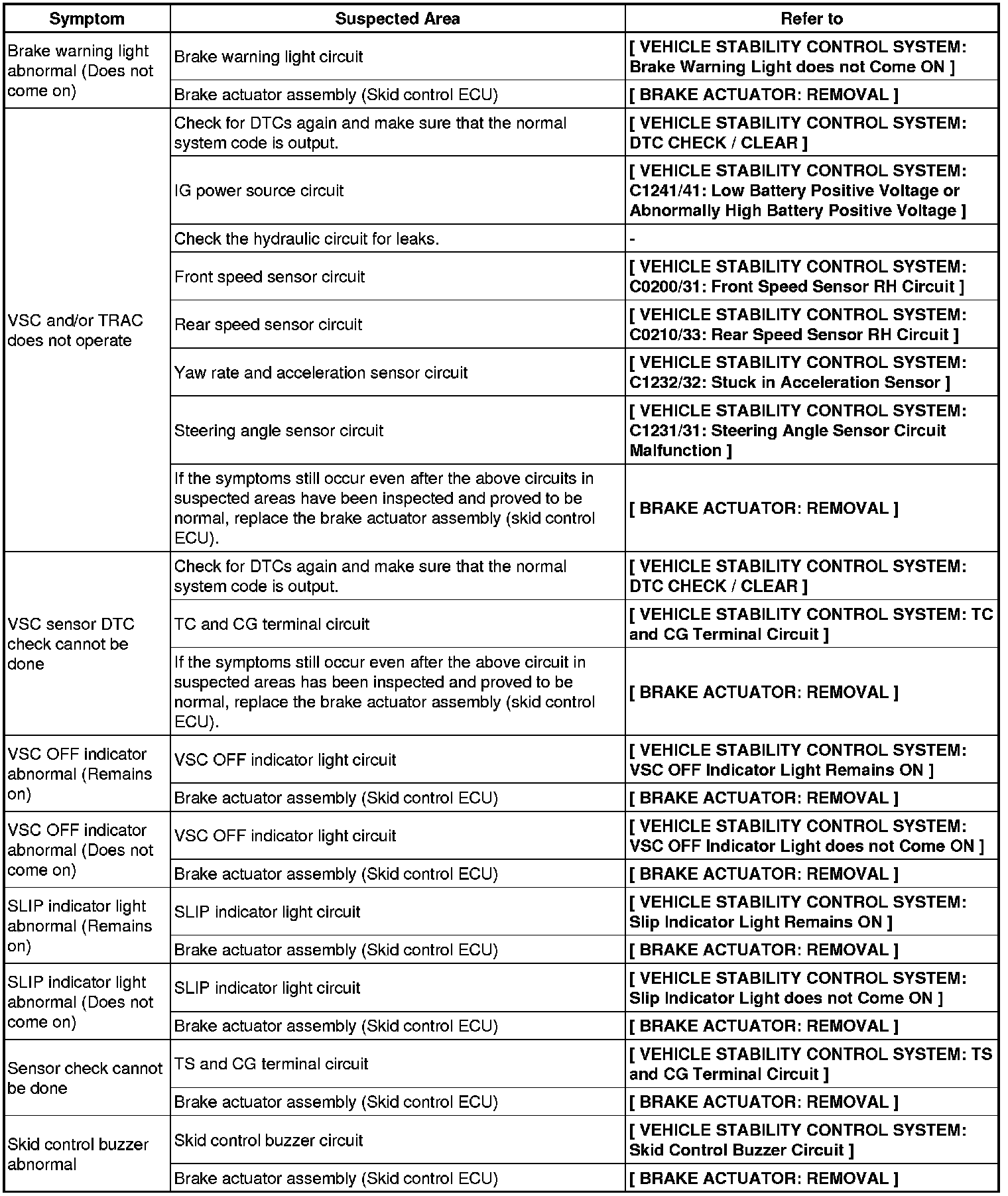

Vehicle Stability Control System:
