ABS Warning Light does not Come ON

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: ABS Warning Light does not Come ON

ABS Warning Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.

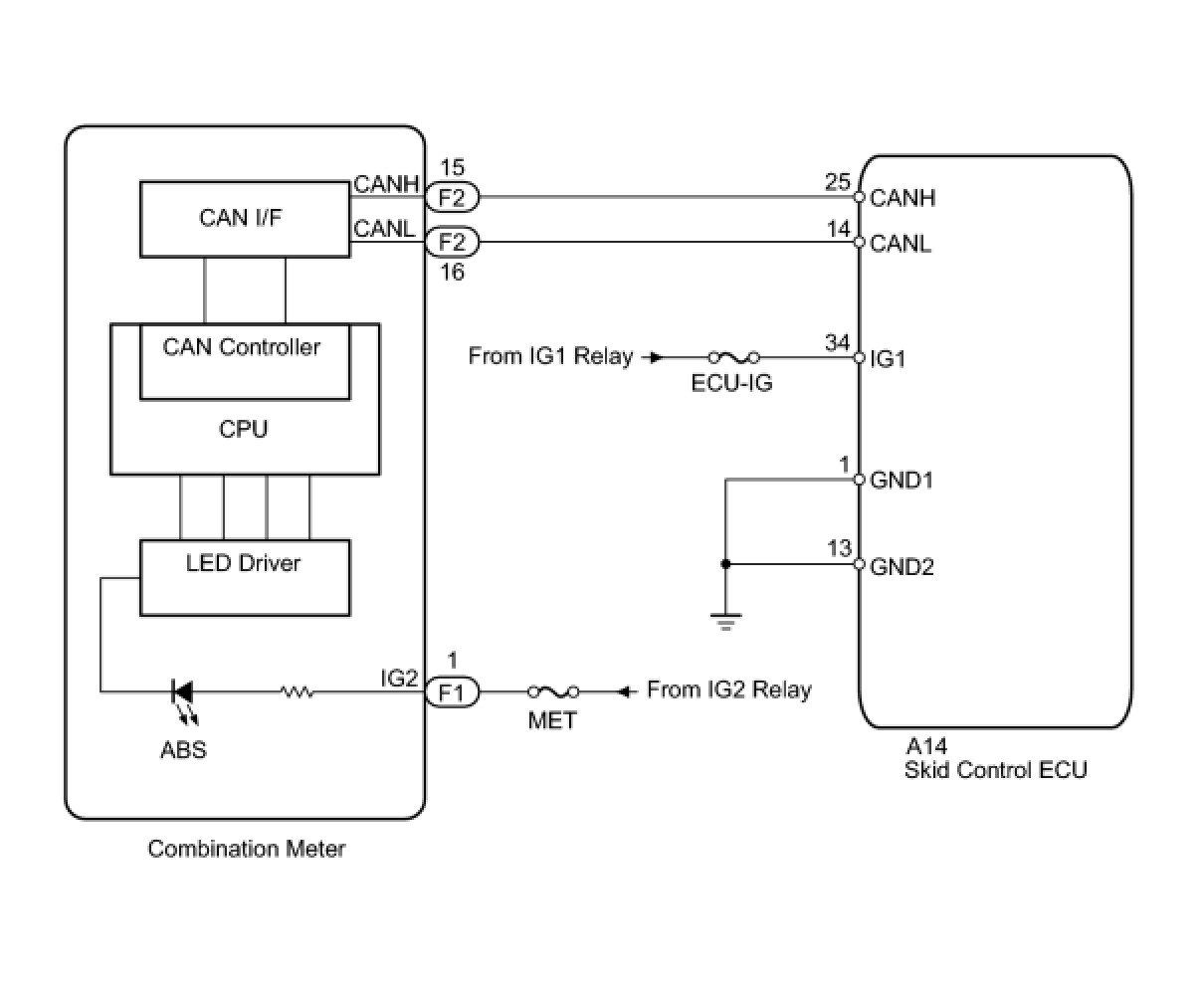

WIRING DIAGRAM






INSPECTION PROCEDURE

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM
(a) Check if the CAN communication system DTC is output .

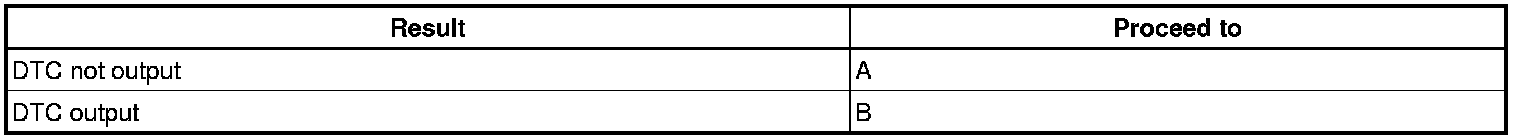

Result:






B -- INSPECT CAN COMMUNICATION SYSTEM
A -- Continue to next step.
2. CHECK ABS WARNING LIGHT
(a) Disconnect the skid control ECU connector.
(b) Turn the ignition switch to ON.
(c) Check that the ABS warning light comes on.
OK:
The ABS warning light comes on.
NG -- INSPECT COMBINATION METER ASSEMBLY
OK -- REPLACE BRAKE ACTUATOR ASSEMBLY
3. INSPECT COMBINATION METER ASSEMBLY
(a) Turn the ignition switch to OFF.
(b) Reconnect the skid control ECU connector.
(c) Connect a Techstream to the DLC3.
(d) Perform Active Test of the combination meter using the Techstream Meter / Gauge System.
OK:
The ABS warning light turns ON or OFF in accordance with the Techstream.
NG -- REPLACE COMBINATION METER ASSEMBLY
OK -- REPLACE BRAKE ACTUATOR ASSEMBLY
