ABS (Antilock Brake System)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

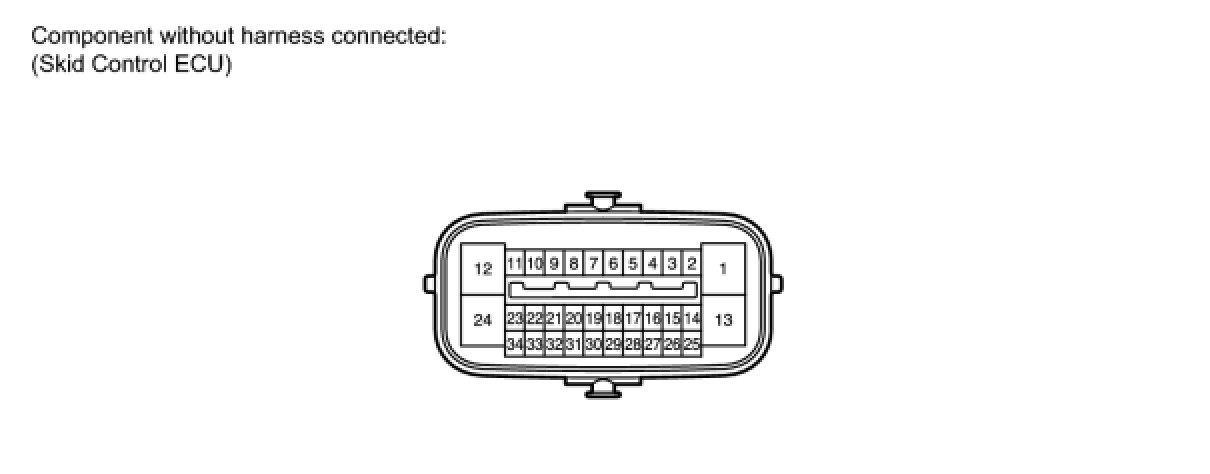

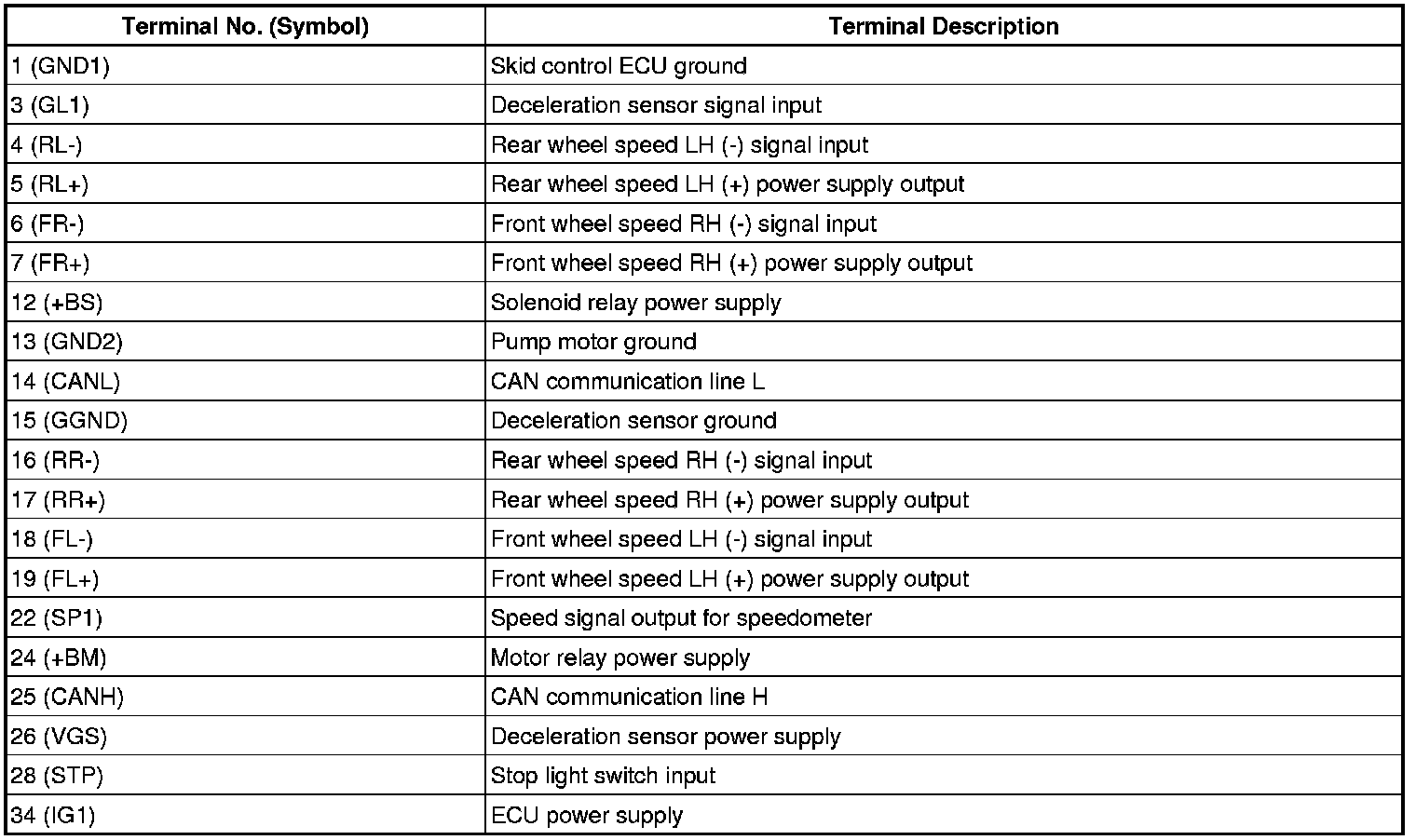

1. TERMINALS OF ECU









2. TERMINAL INSPECTION

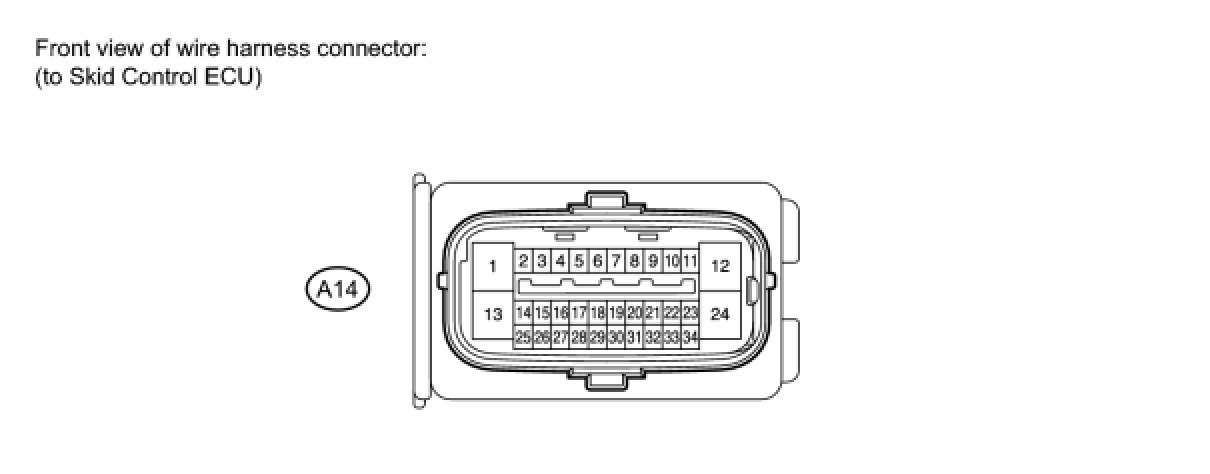

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.





HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.

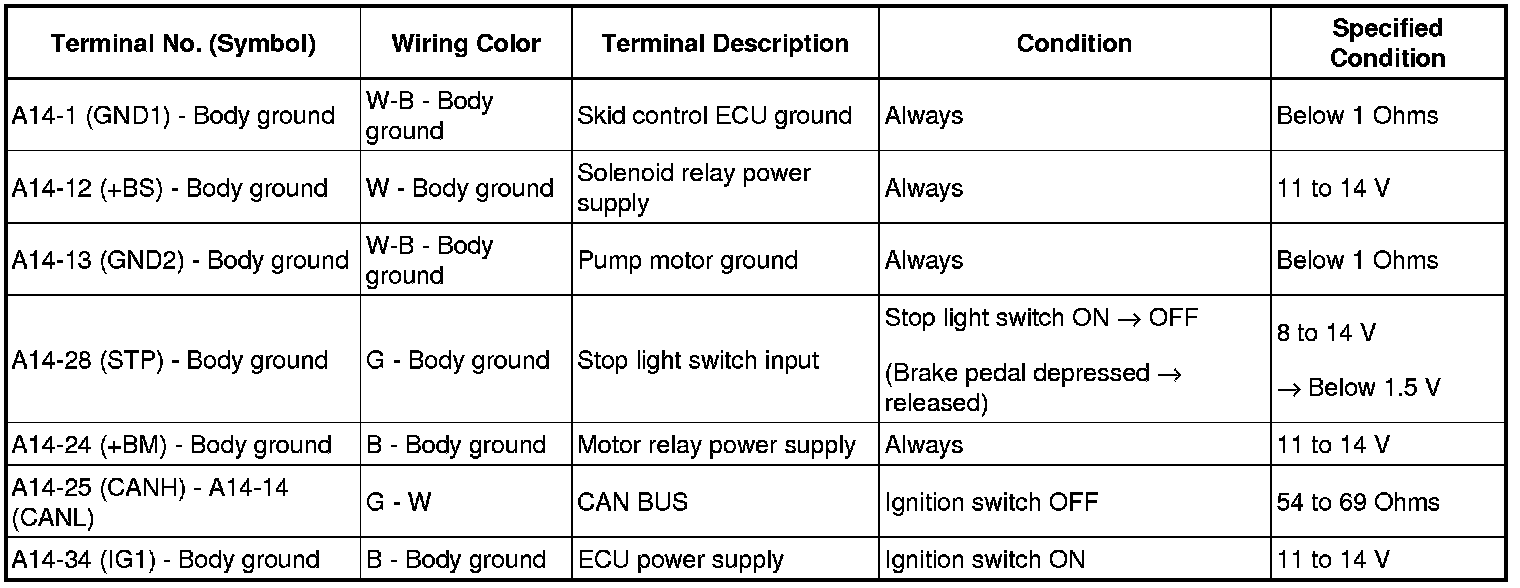

Standard:
