Removal

DOOR LOCK: UNLOCK WARNING SWITCH: REMOVAL

REMOVAL

1. REMOVE STEERING COLUMN LOWER COVER Removal

2. REMOVE STEERING COLUMN UPPER COVER Removal







3. REMOVE UNLOCK WARNING SWITCH
(a) Insert the key into the ignition key cylinder.
(b) Disconnect the connector.

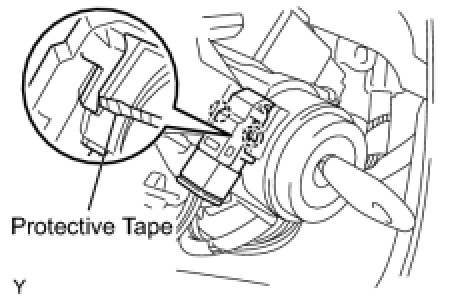

(c) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the unlock warning switch.
