INTERIOR: FUEL LID LOCK CONTROL: INSTALLATION

INSTALLATION

1. INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY

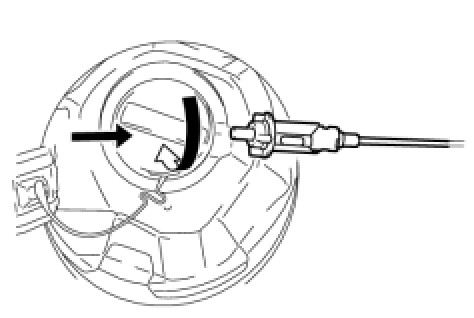

(a) Install the fuel lid lock control cable sub-assembly by inserting it and turning it clockwise, as shown in the illustration.

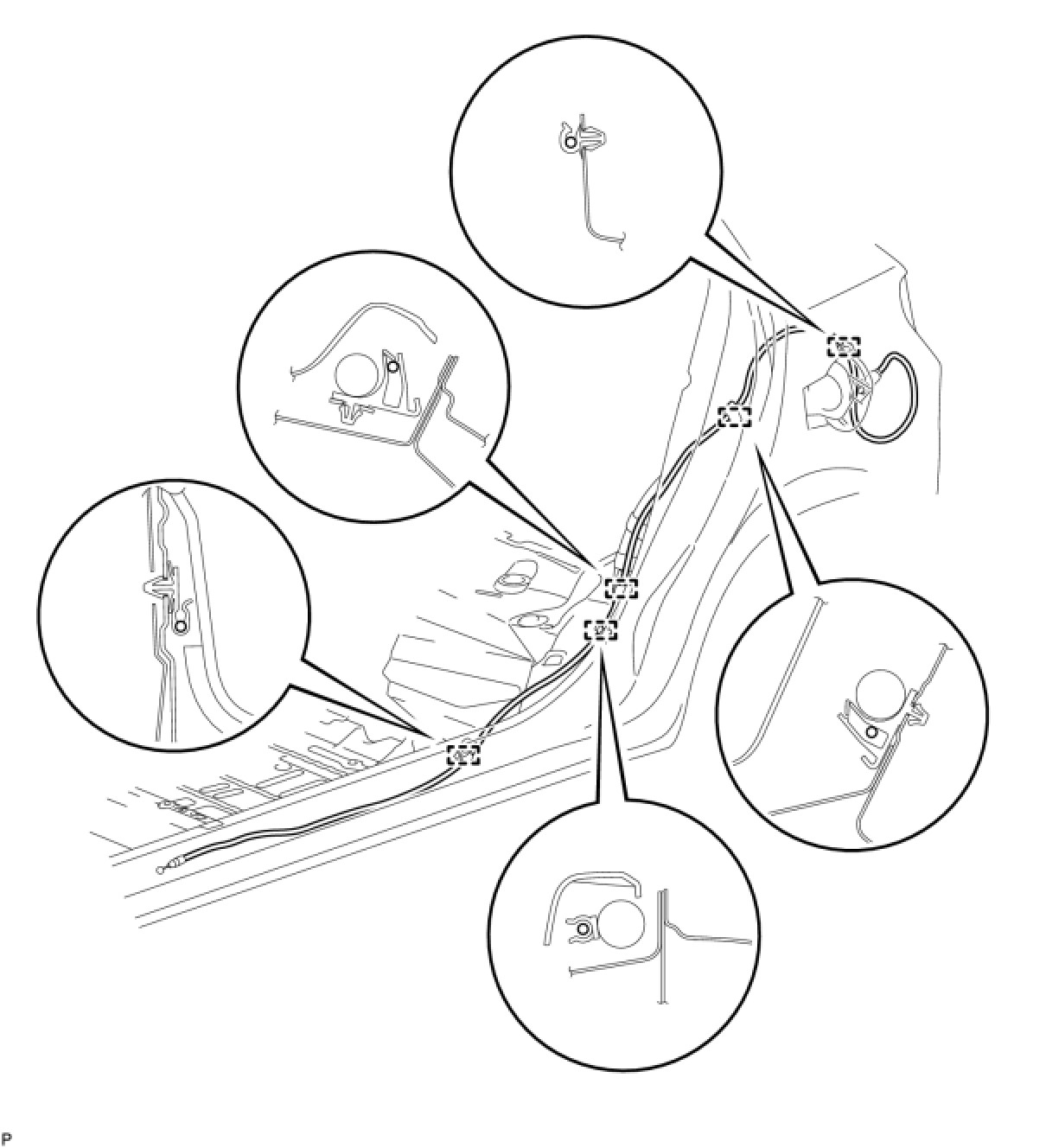

(b) Engage the 5 clamps and install the fuel lid lock control cable sub-assembly.
(c) Engage the clamp and connect the fuel lid lock control cable sub-assembly as shown in the illustration.





(d) Connect the fuel lid lock control cable sub-assembly as shown in the illustration.






2. INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY

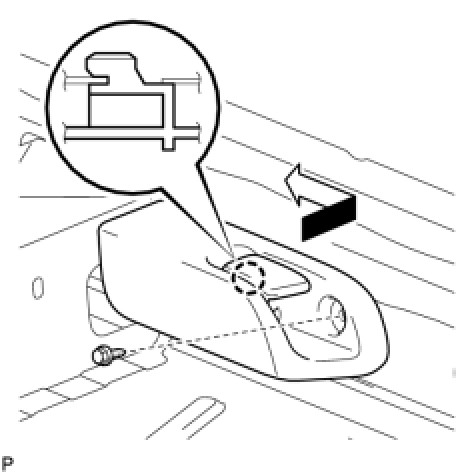

(a) Engage the claw as shown in the illustration.
(b) Install the fuel lid lock open lever sub-assembly with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation

4. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH Installation

5. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation

6. INSTALL REAR DECK TRIM COVER Installation

7. INSTALL DECK BOARD ASSEMBLY Installation

8. INSTALL CENTER PILLAR LOWER GARNISH LH Installation

9. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH Installation

10. INSTALL LAP BELT OUTER ANCHOR COVER Installation

11. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation

12. INSTALL REAR DOOR SCUFF PLATE LH Installation

13. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation

14. INSTALL COWL SIDE TRIM BOARD LH Installation

15. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

16. INSTALL FRONT DOOR SCUFF PLATE LH Installation

17. INSTALL REAR SEAT ASSEMBLY LH Installation

18. INSTALL NO. 1 REAR SEAT LEG COVER LH Installation

19. INSTALL NO. 2 REAR SEAT LEG COVER LH Installation

20. INSTALL DECK BOARD ASSEMBLY Installation

21. INSTALL FRONT SEAT ASSEMBLY LH Installation

22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
23. INSPECT SRS WARNING LIGHT
