Front Seat Side Airbag

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT SEAT SIDE AIRBAG ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT FRONT SEAT SIDE AIRBAG ASSEMBLY (for Vehicle not Involved in Collision)
(a) Perform a diagnostic system check DTC Check / Clear.

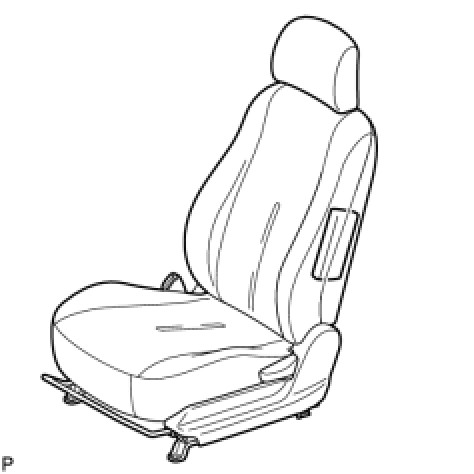

(b) With the front seat side airbag installed on the vehicle, perform a visual check. If there are any defects, such as those mentioned below, replace the front seat side airbag with a new one:
- Any cuts, minute cracks or marked discoloration on the front seat airbag.





2. INSPECT FRONT SEAT SIDE AIRBAG ASSEMBLY (for Vehicle Involved in Collision and Airbag not Deployed)
CAUTION: For front seat side airbag removal and installation procedures, Removal and Installation, and carefully follow the correct procedure.

(a) Perform a diagnostic system check DTC Check / Clear.

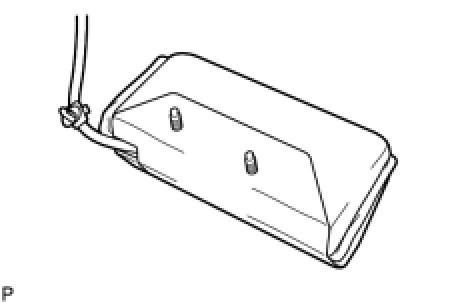

(b) With the front seat side airbag removed from the vehicle, perform a visual check. If there are any defects, such as those mentioned below, replace the front seat side airbag with a new one:
- Any cuts, minute cracks or marked discoloration on the front seat airbag.
- Any cracks or other damage to the wire harness or connector.
