MIRROR: OUTER REAR VIEW MIRROR: INSTALLATION

INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY






(a) Install the outer rear view mirror assembly.

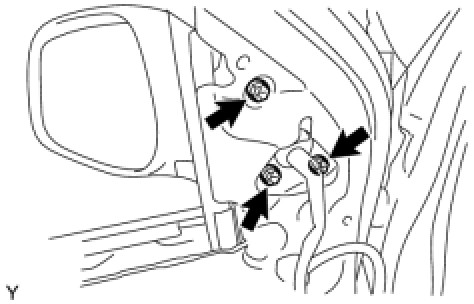

(b) Install the 3 screws.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)

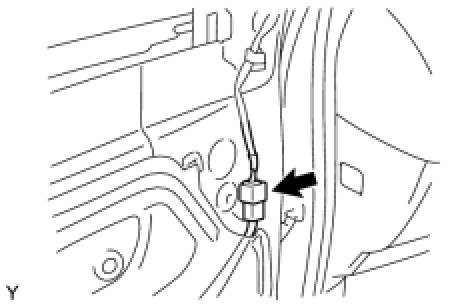

(c) Connect the connector.
2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
HINT: Use the same procedure as for the RH side Reassembly.

3. INSTALL FRONT DOOR INSIDE HANDLE BEZEL
HINT: Use the same procedure as for the RH side Reassembly.

4. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
HINT: Use the same procedure as for the RH side Reassembly.

5. INSTALL FRONT DOOR ARMREST BASE UPPER PANEL
HINT: Use the same procedure as for the RH side Reassembly.
