Home >> Scion >> 2008 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Description and Operation

Mirrors: Description and Operation

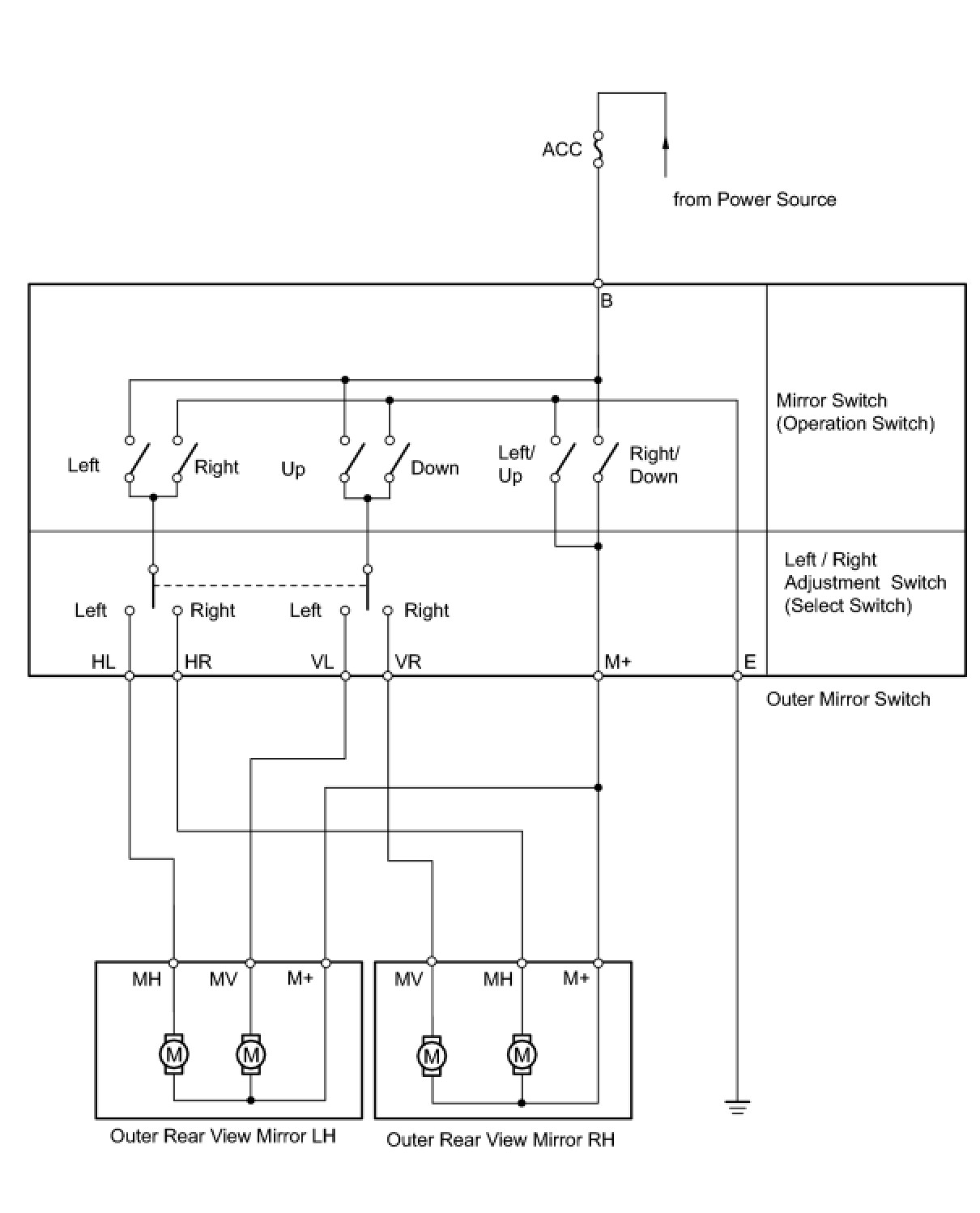

MIRROR: POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
