Rear Door Lock

DOOR LOCK: REAR DOOR LOCK: INSPECTION

INSPECTION

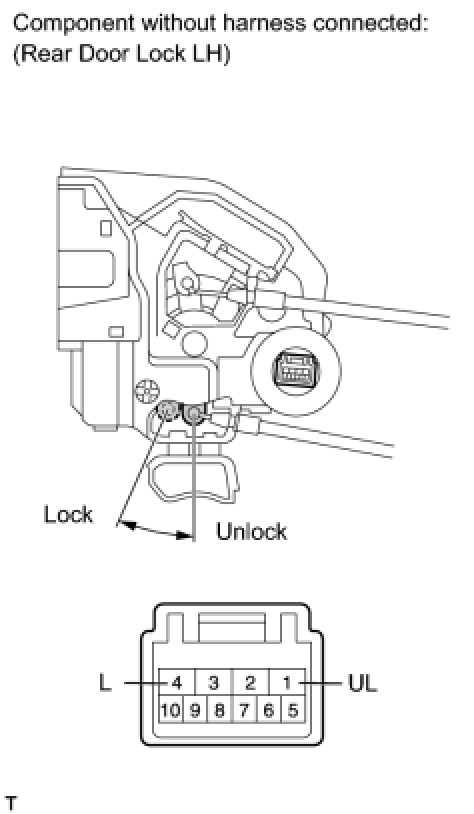

1. INSPECT REAR DOOR LOCK LH
(a) Check the operation.
(1) Connect the positive (+) lead from the battery to terminal 4 (L) and the negative (-) lead to terminal 1 (UL), then check that the lock locks.
OK:
Locks
If the result is not as specified, replace the rear door lock.
(2) Connect the positive (+) lead from the battery to terminal 1 (UL) and the negative (-) lead to terminal 4 (L), then check that the lock unlocks.
OK:
Unlocks
If the result is not as specified, replace the rear door lock.

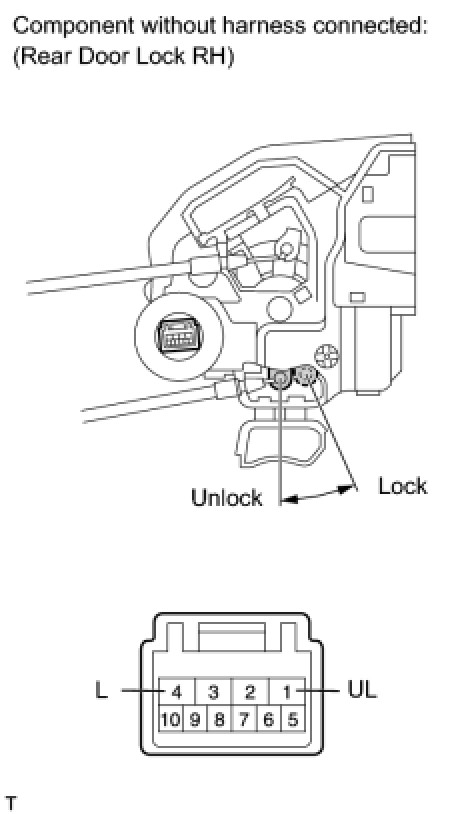

2. INSPECT REAR DOOR LOCK RH
(a) Check the operation.
(1) Connect the positive (+) lead from the battery to terminal 4 (L) and the negative (-) lead to terminal 1 (UL), then check that the lock locks.
OK:
Locks
If the result is not as specified, replace the rear door lock.
(2) Connect the positive (+) lead from the battery to terminal 1 (UL) and the negative (-) lead to terminal 4 (L), then check that the lock unlocks.
OK:
Unlocks
If the result is not as specified, replace the rear door lock.
