DOOR LOCK: TRANSMITTER BATTERY: REPLACEMENT

REPLACEMENT

1. REMOVE TRANSMITTER HOUSING COVER






(a) Using a screwdriver with its tip wrapped in protective tape, pry apart the transmitter housing cover.
NOTE: Do not use excessive force when prying apart the housing cover.

2. REMOVE DOOR CONTROL TRANSMITTER MODULE






(a) Remove the door control transmitter module.
3. REMOVE TRANSMITTER BATTERY

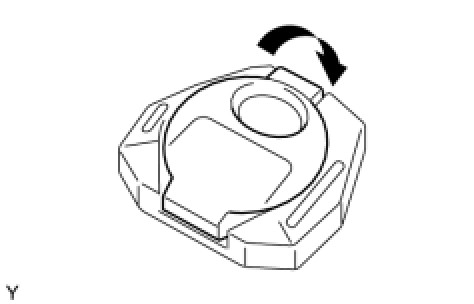

(a) Disengage the hook and remove the transmitter battery cover.

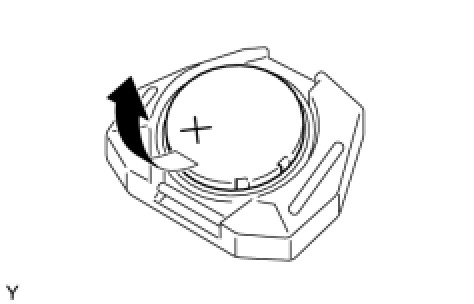

(b) Remove the battery (lithium battery).
NOTICE:
- Do not push the terminals with your finger.
- Do not use excessive force when prying up the battery (lithium battery) as this may damage the terminals.
- Do not touch the battery with wet hands. Water may cause it to rust.
- Do not touch or move any components inside the transmitter as this may interfere with its proper operation.

4. INSTALL TRANSMITTER BATTERY

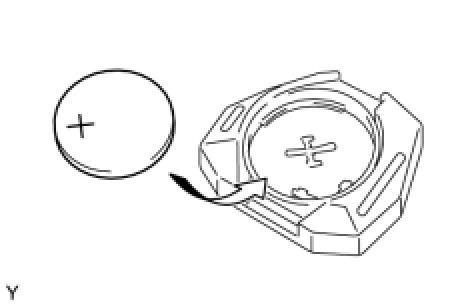

(a) Install a battery (lithium battery) with the positive (+) side up, as shown in the illustration.
NOTICE:
- Make sure that the positive (+) side and the negative (-) side of the transmitter battery are correctly matched with the transmitter terminals.
- Do not bend the transmitter battery electrode during insertion.
- Keep the transmitter cover interior free of dust and oil.

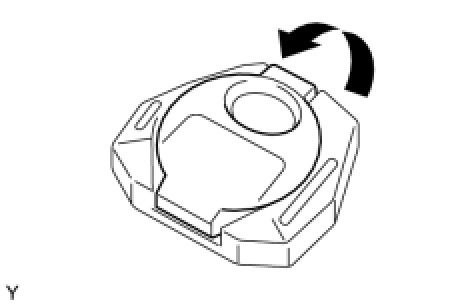

(b) Engage the hook and install the transmitter battery cover.
5. INSTALL DOOR CONTROL TRANSMITTER MODULE






(a) Install the door control transmitter module.
6. INSTALL TRANSMITTER HOUSING COVER






(a) Install the transmitter housing cover onto the transmitter housing case securely.

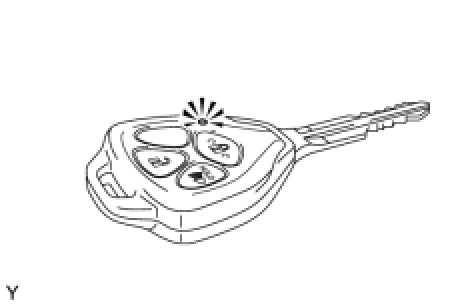

(b) After the installation, press any of the transmitter switches. Check that the LED illuminates.
