Trunk / Liftgate Lock: Testing and Inspection

DOOR LOCK: BACK DOOR LOCK: INSPECTION

INSPECTION

1. INSPECT BACK DOOR LOCK






(a) Check the operation.
(1) Move the back door lock to the lock position.

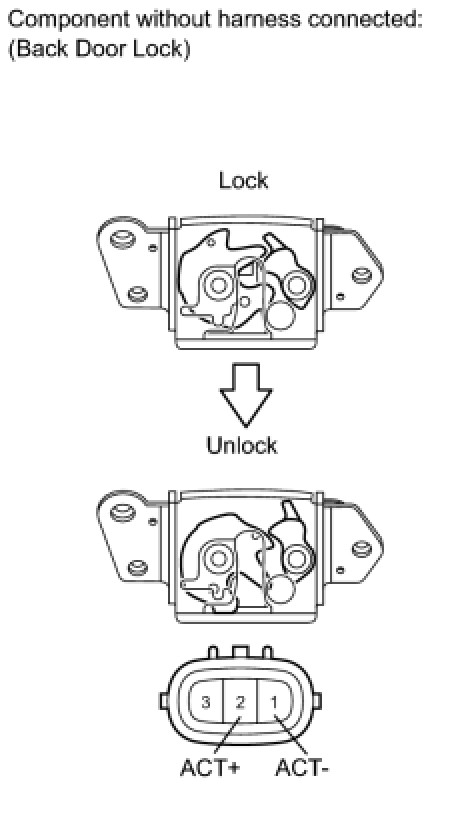

(2) Connect the positive (+) lead from the battery to terminal 2 (ACT+) and the negative (-) lead to terminal 1 (ACT-), then check that the lock unlocks.
OK:
Unlocks
If the result is not as specified, replace the back door lock.

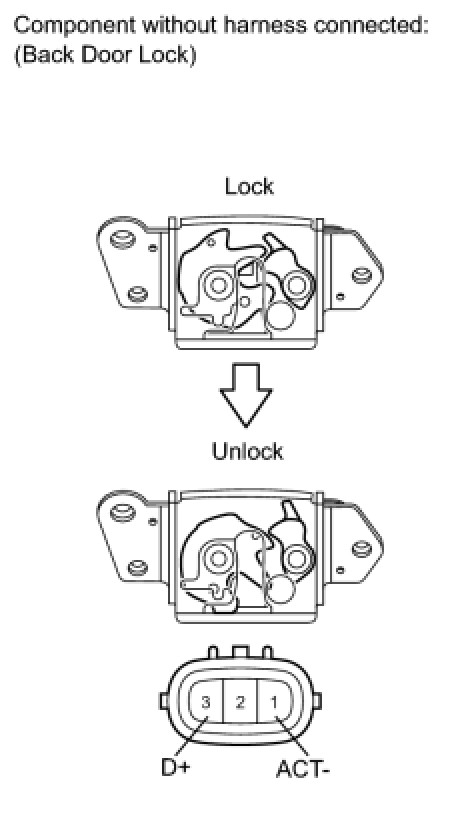

(b) Check operation of the back door courtesy switch.
(1) Measure the resistance according to the value(s) in the table below.

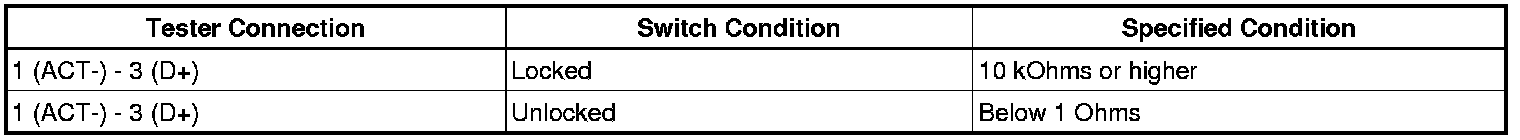

Standard resistance:






If the result is not specified, replace the back door lock.
